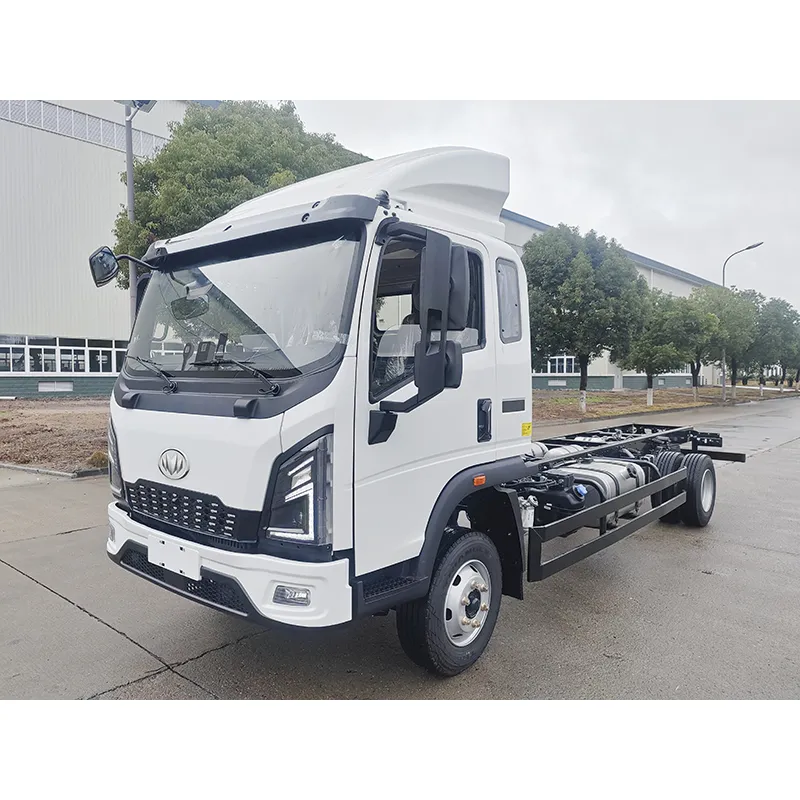

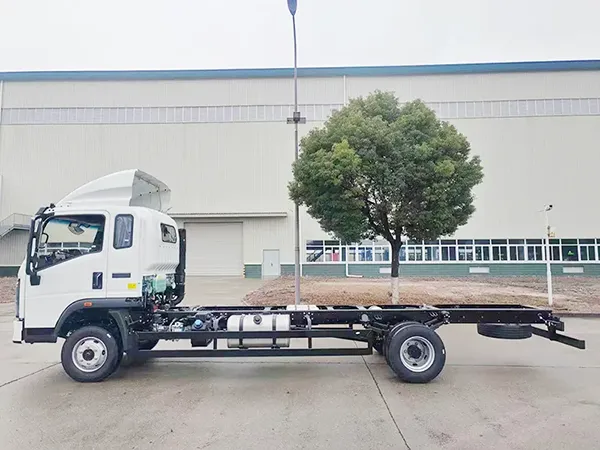

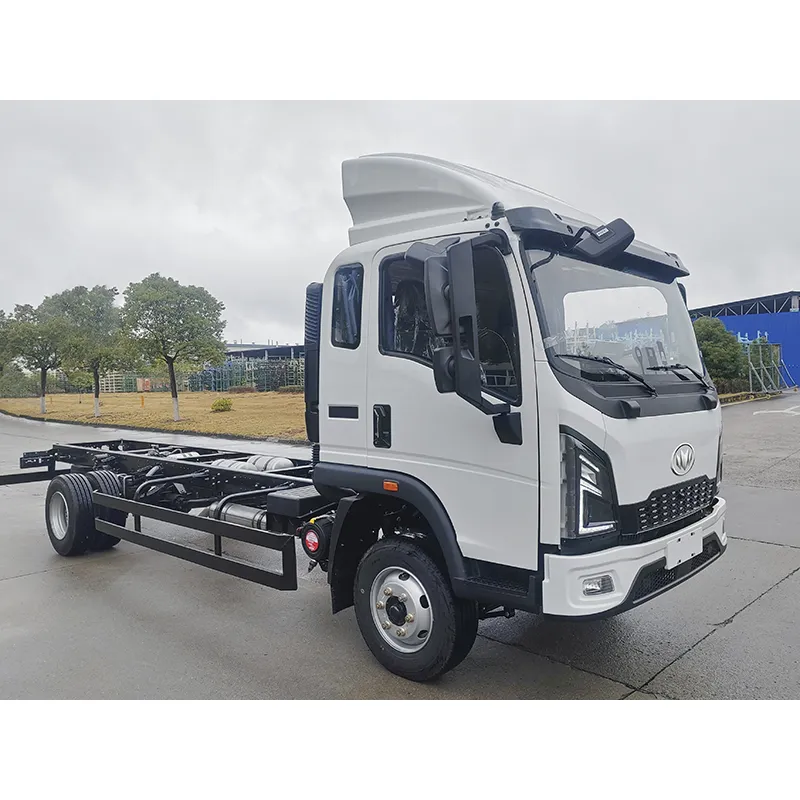

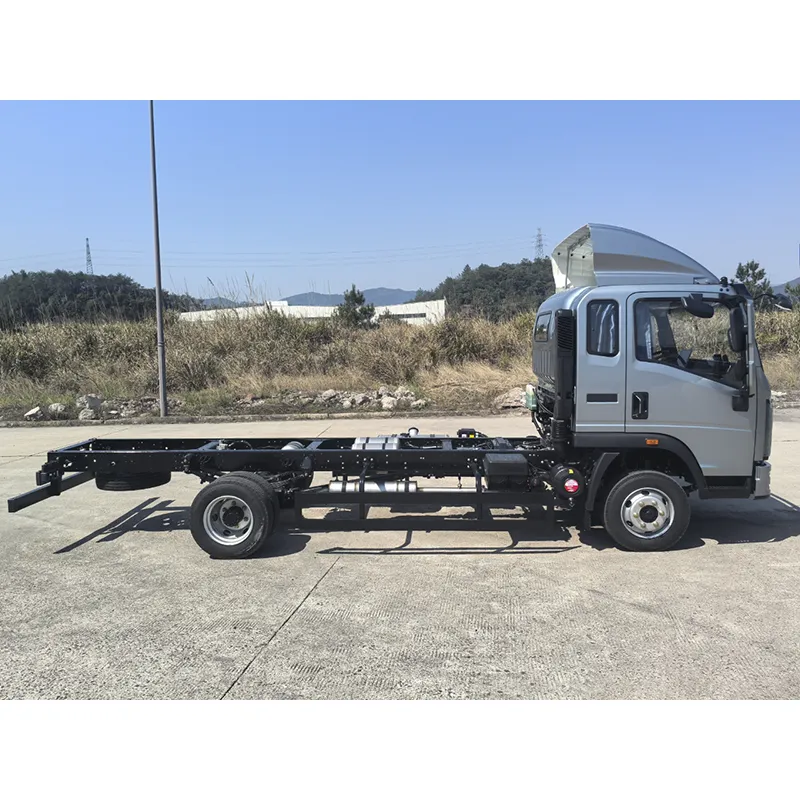

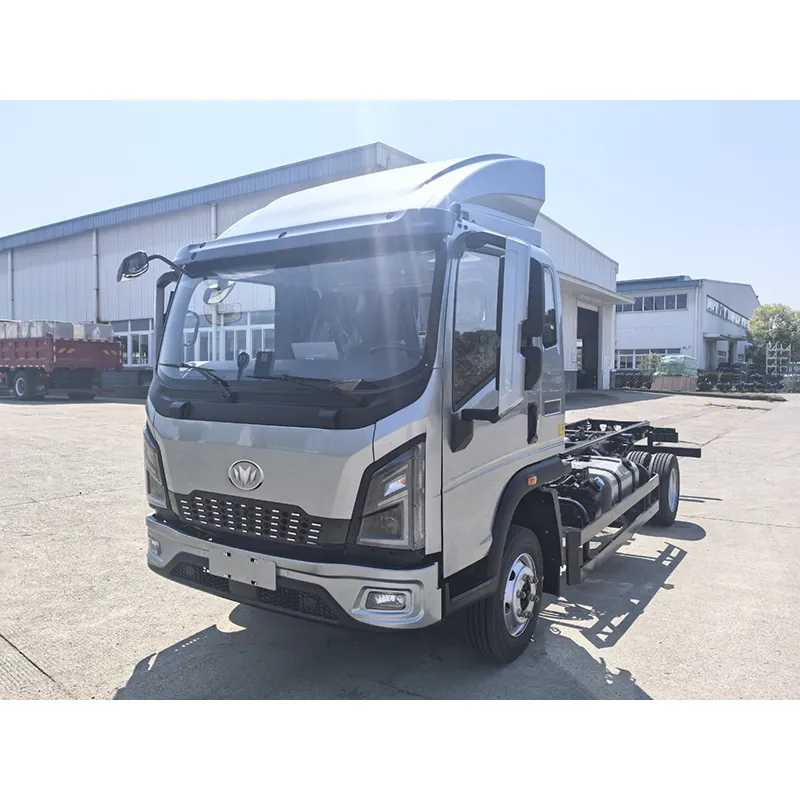

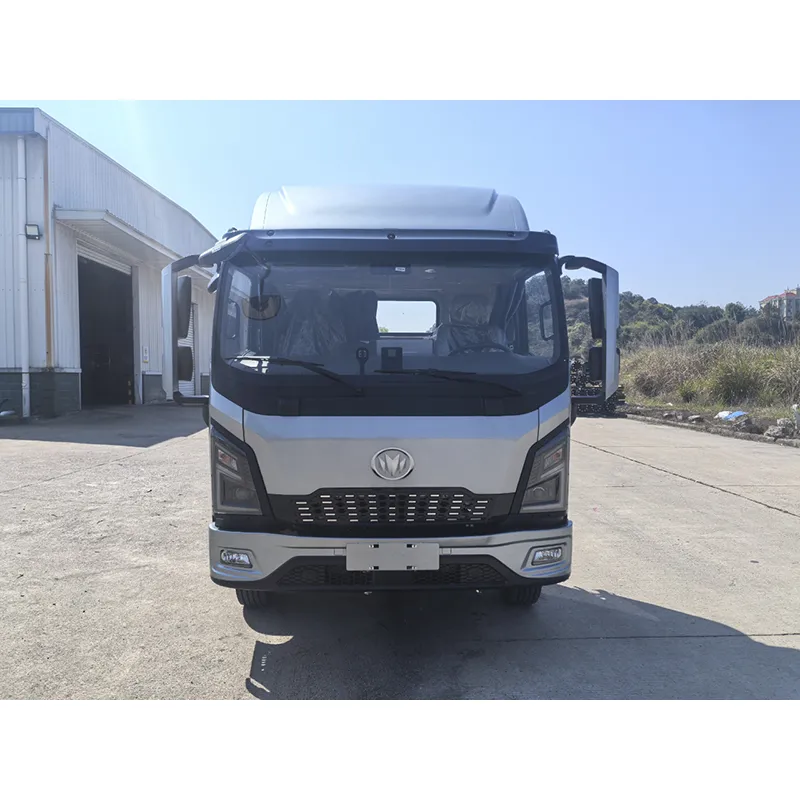

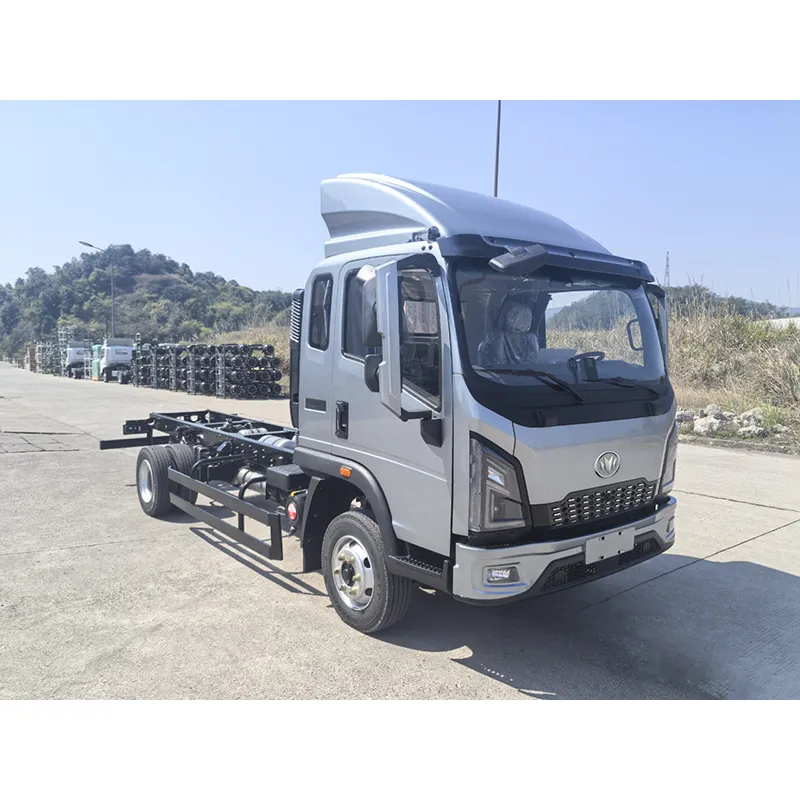

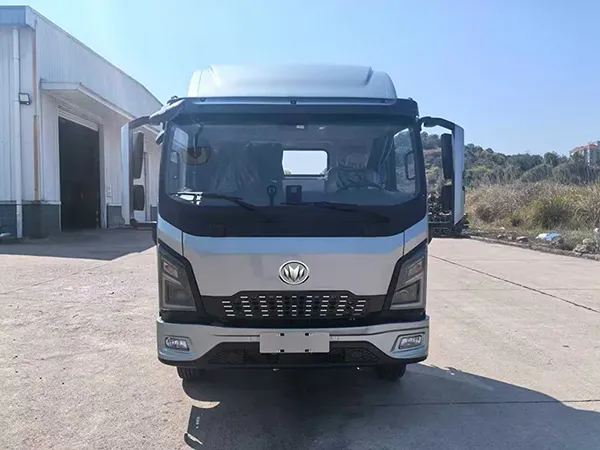

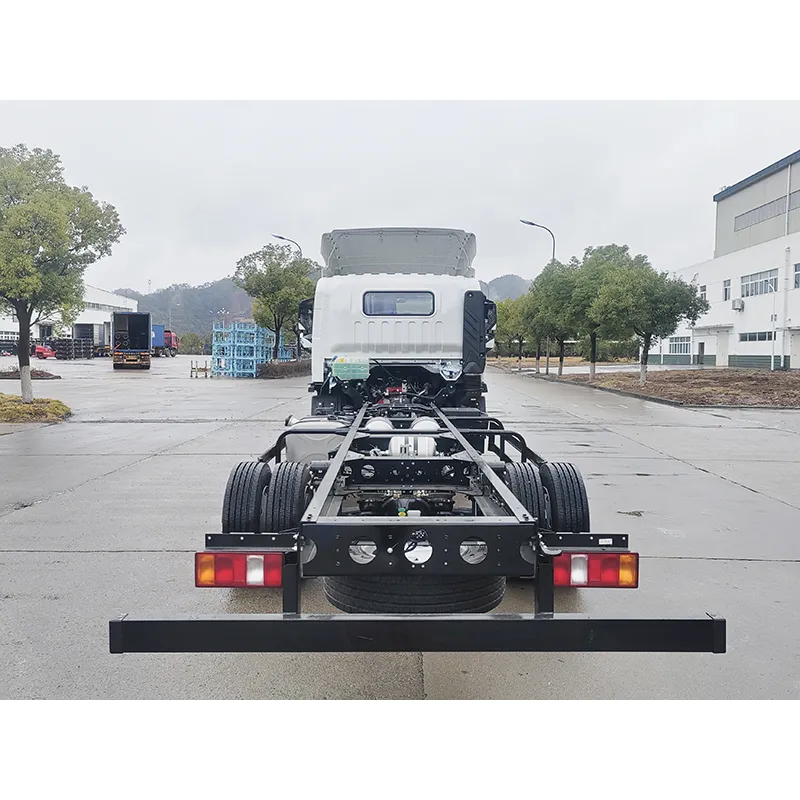

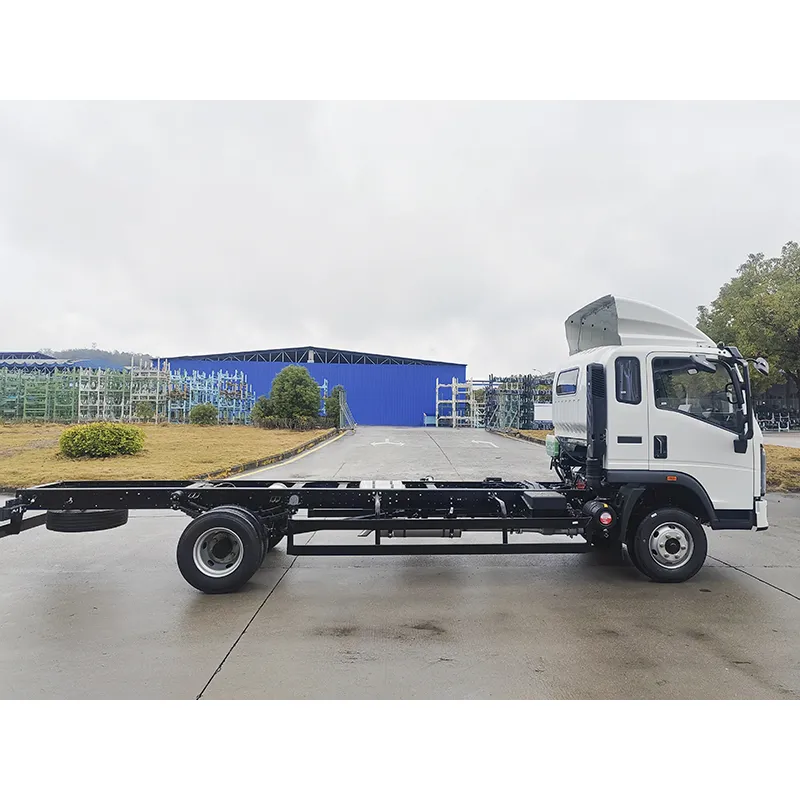

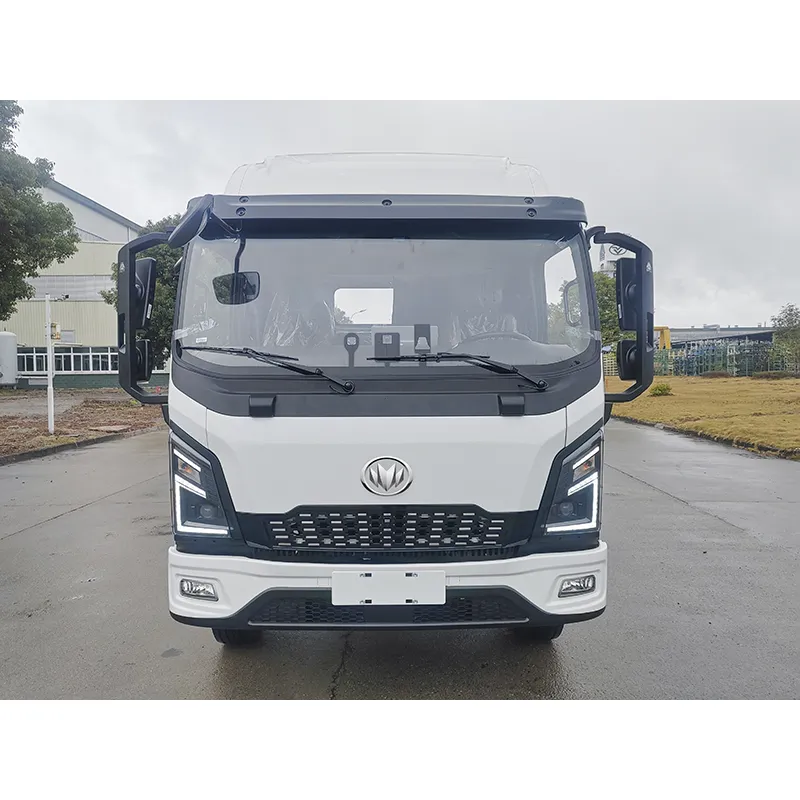

Light Duty Truck Chassis

The FJ1098F4515E1, a new 4x2 light - duty truck chassis by Keyton for urban logistics, has an 8T gross vehicle weight, around 3360 kg curb weight (no cargo box), 4500 mm wheelbase, and 7980x2250x2550 mm overall dimension. Its cabin (208019331438 mm) has 1 berth. The engine delivers 113KW power and 500 N.m torque, meeting Euro V standards. It uses a FAST 6DSX60T manual transmission and features a disc - brake front axle and a 4.875 rear axle final reduction ratio.

4x2 Light Duty Truck Chassis			Details & Comments
Category	Type	GVW 6T
	Model	FI1068F3815E1
General info	Application Purpose	Urban logistics transport
	Driving Form	4X2
	Wheelbase	3800 mm
	GVW	6 T
	Curb weight	Roughly 3220kg without cargo box
	Front overhang	1040
	Rear overhang	2090
	Box Dimension (L*W*H)	4850*2050*500
	Overall Dimension (L*W*H)	7130x2250x2470 (Without spolier and rear-view mirror)
Cabin	Model	2080*1933*1438 with 1 berth Berth width: 350mm With standard spoiler
Engine	Engine Model	ISF3.8S5154
	Max (hp/rpm)	113KW(154HP )@ 2600 r/min
	Max Torque (N.m/rpm)	500 N.m@ 1200 -2200r/min
	Emission L	3.760L
	Emission	Euro V, EEV
	Fuel-Injection Systems	High pressure common rail
	Radiator and Intercooler	water-cooled with tank
	Exhaust brake	√
Transmission	Transmission	FAST 6DSX60T
	Type of Gearbox	MT with syntronizer
	Gear Shift	6F&1R
	Torque	600N.m
	Ratio	6.667, 4.014, 2.416, 1.522, 1, 0.777, 6.133 (R)
Clutch	Clutch Spec.	Ф350mm
Frame	height	216
	Thickness	6
Axle	Front axle_Brake type	Disc
	Front axle_Load	1061J(2.7T)	Max Payload: 4T
	Rear Axle_Load	1080(7.2T)	Max Payload: 10T
	Rear Axle_Final reduction ratio	4.333	Max. Speed:120km
	Rear Axle_Brake type	Drum
	Front axle stabilizer bar	√
	Rear axle stabilizer bar	√
Suspension	Front suspension Spring	3 pieces leaf spring
	Rear suspension type	5+3 pieces leaf spring
Brake System	ABS+ESC	Ruili Kormee
	Parking Brake/ trail brake	Ruili Kormee
	AEBS	Ruili Kormee
	LDWS	Ruili Kormee
	Working Air Pressure (circuit pressure)	√
	Air Tanks	√
Steering	Power Steering	√
	Steering machine	China brand
Tire	Tire	215/75R17.5
	Wheel Rim	Steel ring
Other specs	Fuel Tank Volume	200L, Aluminium
	Adblue Tank Volume	16L
	Battery	2 x (12V 100AH)
	Hill Start Assist (HAS)	√
	Rear Buzzer	√
	Spare Tire Carrier	Spare Tire Carrier and spare Tire
	Rear Fog Lamp	√
	Tail light	√
	Engine Idle adjuster-PTO	√
	Mud Guard	○
	Side guard	○
	Rear guard	○
	Rear camera	√
	Sunvisor	√

KEYTON 4x2 Light Duty Truck Chassis			Details & Comments
Category	Type	GVW 8T
	Model	FJ1098F4515E1
General info	Application Purpose	Urban logistics transport
	Driving Form	4X2
	Wheelbase	4500 mm
	GVW	8 T
	Curb weight	Roughly 3360kg without cargo box
	Front overhang	1040
	Rear overhang	2290
	Box Dimension (L*W*H)	5750*2150*500
	Overall Dimension (L*W*H)	7980x2250x2550 (Without spolier and rear-view mirror)
Cabin	Model	2080*1933*1438 with 1 berth Berth width: 350mm With standard spoiler
Engine	Engine Model	ISF3.8S5154
	Max (hp/rpm)	113KW(154HP )@ 2600 r/min
	Max Torque (N.m/rpm)	500 N.m@ 1200 -2200r/min
	Emission L	3.760L
	Emission	Euro V, EEV
	Fuel-Injection Systems	High pressure common rail
	Radiator and Intercooler	water-cooled with tank
	Exhaust brake	●
Transmission	Transmission	FAST 6DSX60T
	Type of Gearbox	MT with syntronizer
	Gear Shift	6F&1R
	Torque	760N.m
	Ratio	6.667, 4.014, 2.416, 1.522, 1, 0.777, 6.133 (R)
Clutch	Clutch Spec.	Ф350mm
Frame	height	216
	Thickness	6
Axle	Front axle_Brake type	Disc
	Front axle_Load	1061J(2.7T)
	Rear Axle_Load	1080(7.2T)
	Rear Axle_Final reduction ratio	4.875
	Rear Axle_Brake type	Drum
	Front axle stabilizer bar	●
	Rear axle stabilizer bar	●
Suspension	Front suspension Spring	11 pieces leaf spring
	Rear suspension type	11+7 pieces leaf spring
Brake System	ABS+ESC	Ruili Kormee
	Parking Brake/ trail brake	Ruili Kormee
	AEBS	Ruili Kormee
	LDWS	Ruili Kormee
	Working Air Pressure(circuit pressure)	●
	Air Tanks	●
Steering	Power Steering	●
	Steering machine	China brand
Tire	Tire	235/75R17.5
	Wheel Rim	Steel ring
Other specs	Fuel Tank Volume	200L, Aluminium
	Adblue Tank Volume	16L
	Battery	2 x (12V 100AH)
	Hill Start Assist (HAS)	●
	Rear Buzzer	●
	Spare Tire Carrier	Spare Tire Carrier and spare Tire
	Rear Fog Lamp	●
	Tail light	●
	Engine Idle adjuster-PTO	●
	Mud Guard	○
	Side guard	○
	Rear guard	○
	Rear camera	●
	Sunvisor	●
