1. Introduction of EM
Equipped with a brand new 4JD2 engine with a maximum power of 152 horsepower and an Isuzu high load chassis... This car has the advantages of reliability, durability, fuel efficiency, and no need to worry about it. These advantages have been recognized by many users for its product quality and have successfully shaped its good market reputation. The cargo box of Winged EM adopts lightweight design, with the main frame structure made of lightweight high-strength steel and the box body made of B510L material. While ensuring strength, it achieves the goal of reducing the weight of the entire vehicle. Looking at the details of the entire vehicle, the use of panoramic front windshield and large side windows provides drivers with a wide enough field of view, while the addition of electrically heated exterior mirrors ensures that driving in rainy and snowy weather is also clearly visible, allowing drivers to observe the surrounding conditions of the vehicle at any time, ensuring safety without blind spots.
2. Parameter (Specification) of JIANGXI ISUZU ELF EM
EM |
EM5(Medium body) |
EM7(Wide body) |
Vehicle parameters |
||
Cab width(mm) |
1880 |
1880 |
emission standard |
Stg 6/Stg 2 |
Stg 6/Stg 2 |
Braking type |
Air brakes |
Air brakes |
Cab type |
Single/half row |
Single/half row |
engine model |
4JD2 |
4JD2 |
engine displacement (L) |
2.478 |
2.478 |
engine power(kw/ps) |
112/153 |
112/153 |
engine torque (N.m) |
400 |
400 |
ect |
6MT |
6MT |
tire size |
7.00R16 |
7.00R16 |
ABS |
ABS |
ABS |
fuel tank vol.(L) |
100 |
100 |
Urea tank vol.(L) |
16 |
16 |
Rear axle ratio |
4.556/5.286 |
4.556/5.286 |
DISPOSITION |
||
MP3 Bluetooth Phone |
S |
S |
ESP driving modes |
S |
S |
Low wind resistance rounded corner cargo box |
S |
S |
Cruise control |
S |
S |
rear view mirror heating |
S |
S |
front fog lamp |
S |
S |
LED day running lamp |
S |
S |
Rear reversing radar |
S |
S |
Interior central locking |
S |
S |
power window |
S |
S |
Steering Wheel Audio/Function Control |
S |
S |
MP3/USB |
S |
S |
Manual air conditioning(refrigeration) |
S |
S |
Manual air conditioning(heater) |
S |
S |
Turn to auxiliary lighting |
S |
S |
Steering wheel adjustment-4ways |
S |
S |
Key fob |
S |
S |

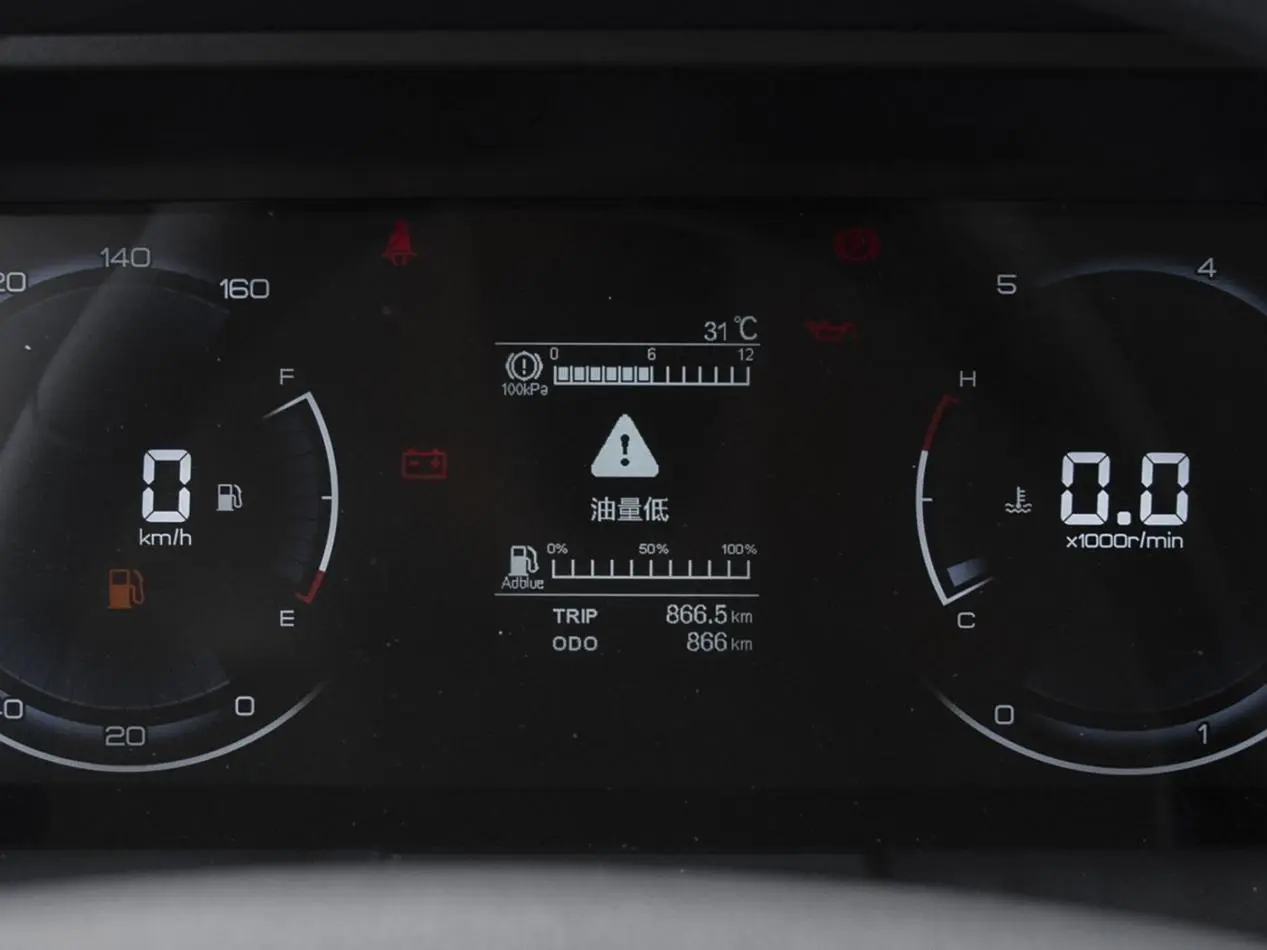

Instrument clusters(Instrument cluster) |
S |
S |
Anti-speeding tips |
S |
S |
Brake wear alarm |
S |
S |
Automatic adjustment of brake clearance |
S |
S |
Driver fatigue alarm |
S |
S |
Dashcam power take-off interface |
S |
S |
Leather steering wheel |
O |
O |
Main driver's shock absorbing seat |
O |
O |
Exhaust brake |
O |
O |
Oil circuit heating |
O |
O |

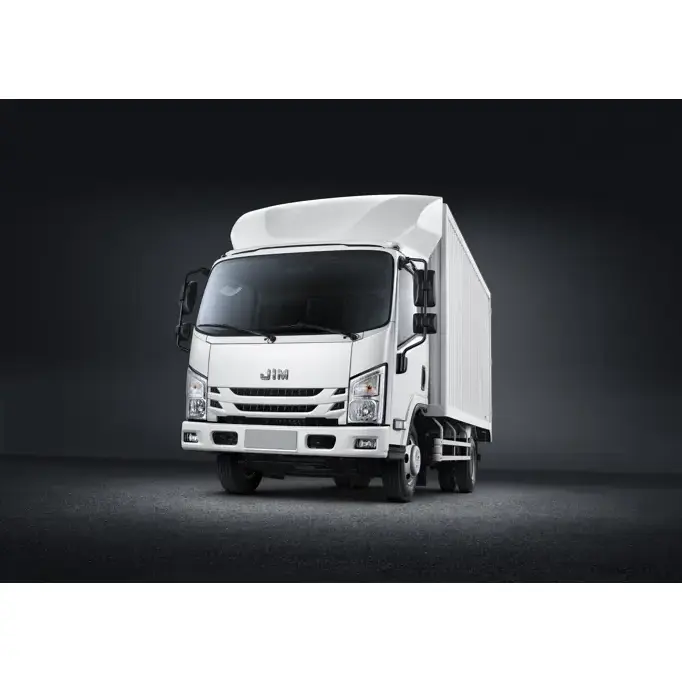

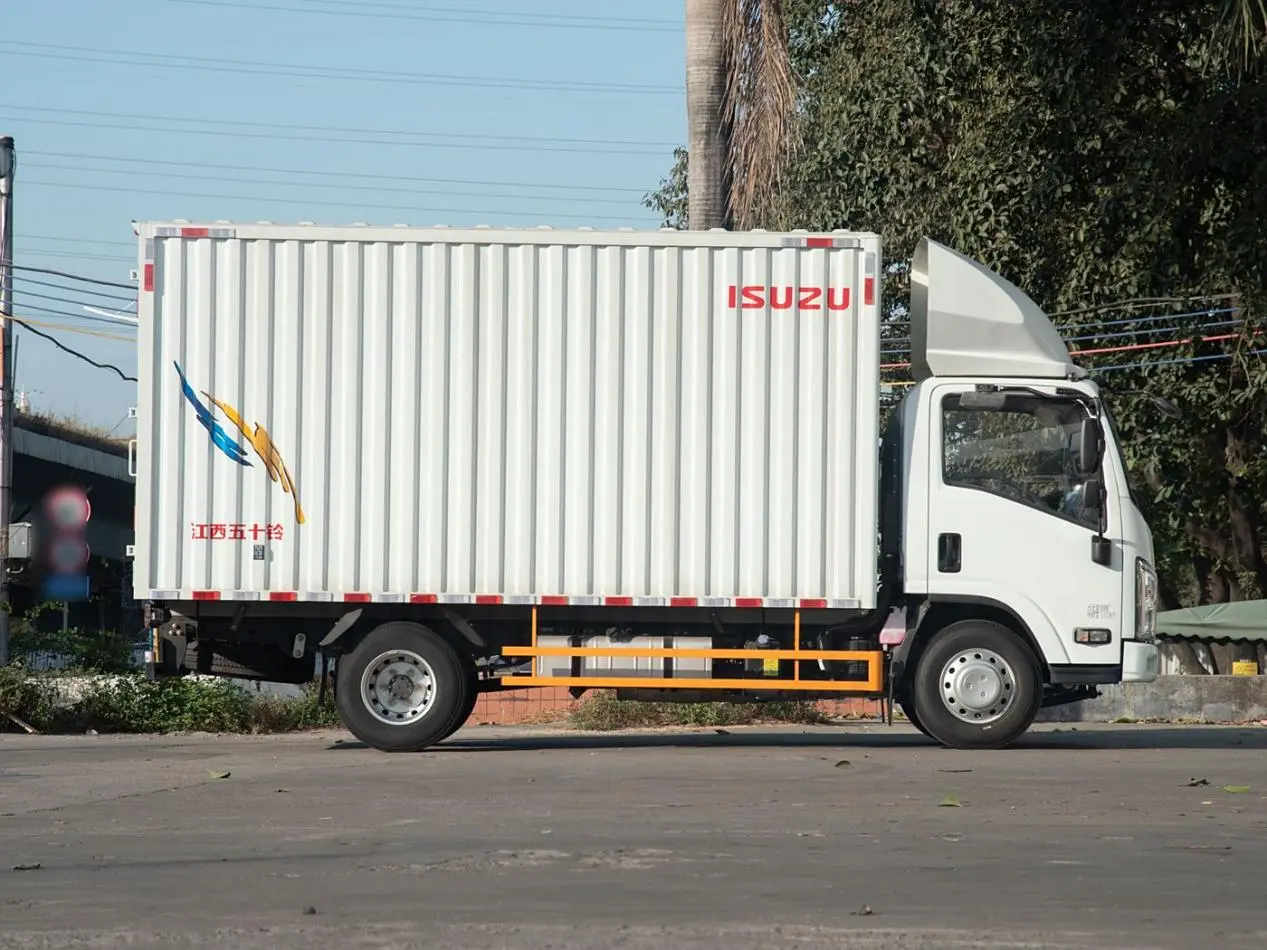

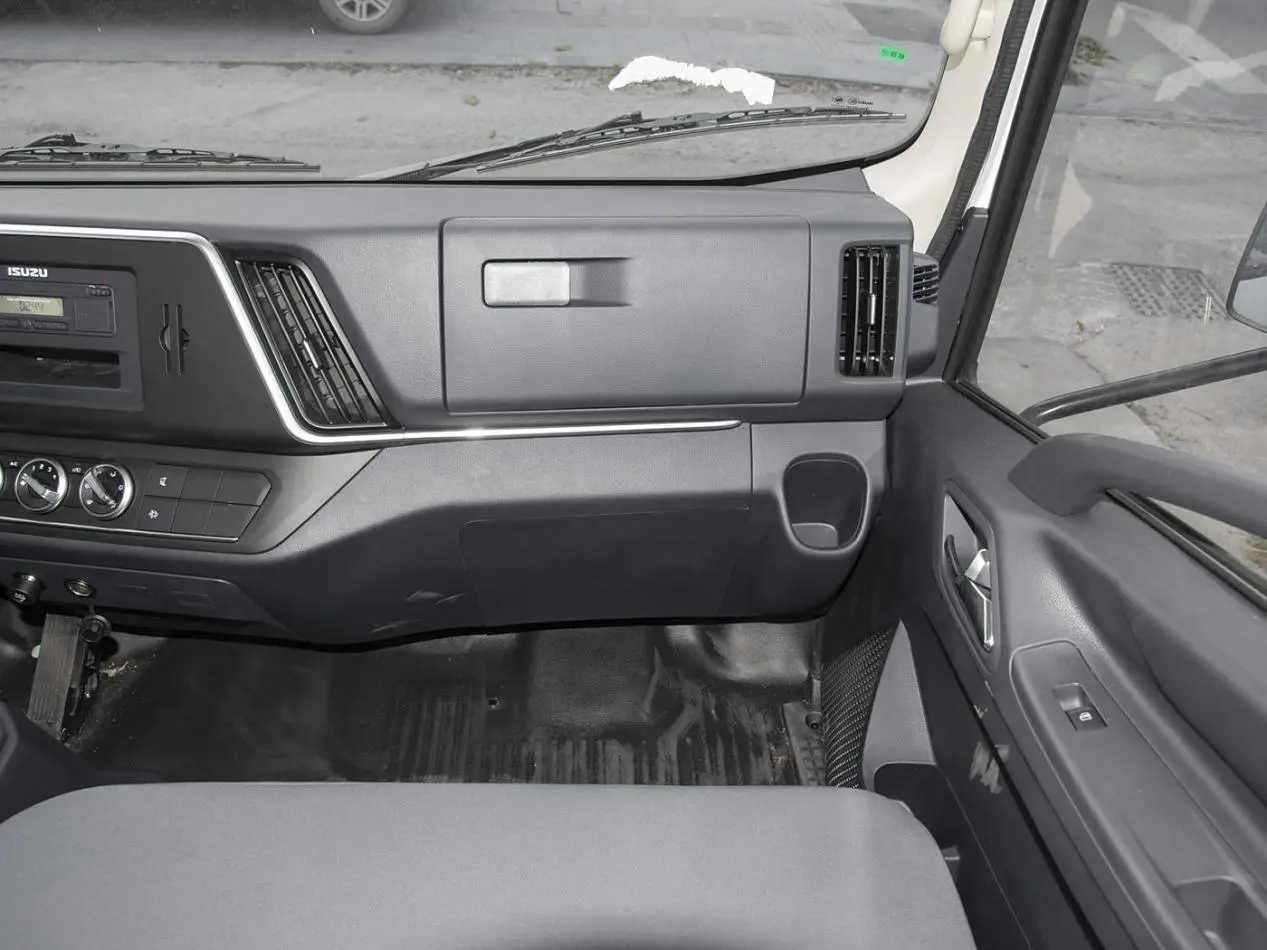

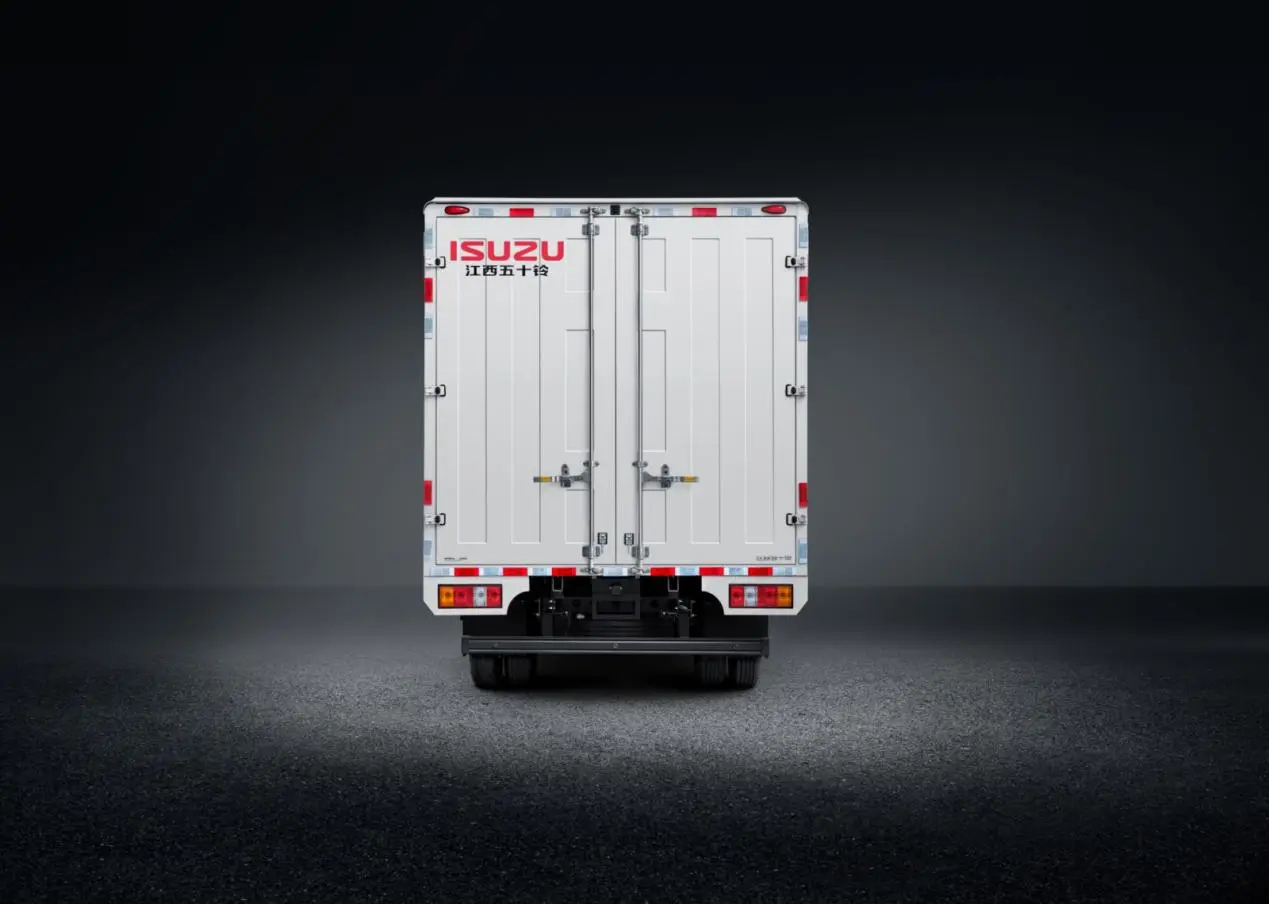

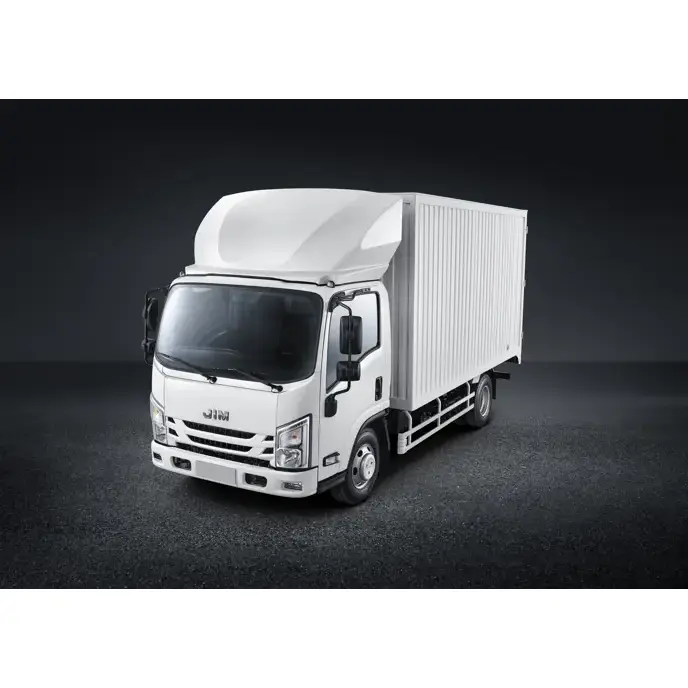

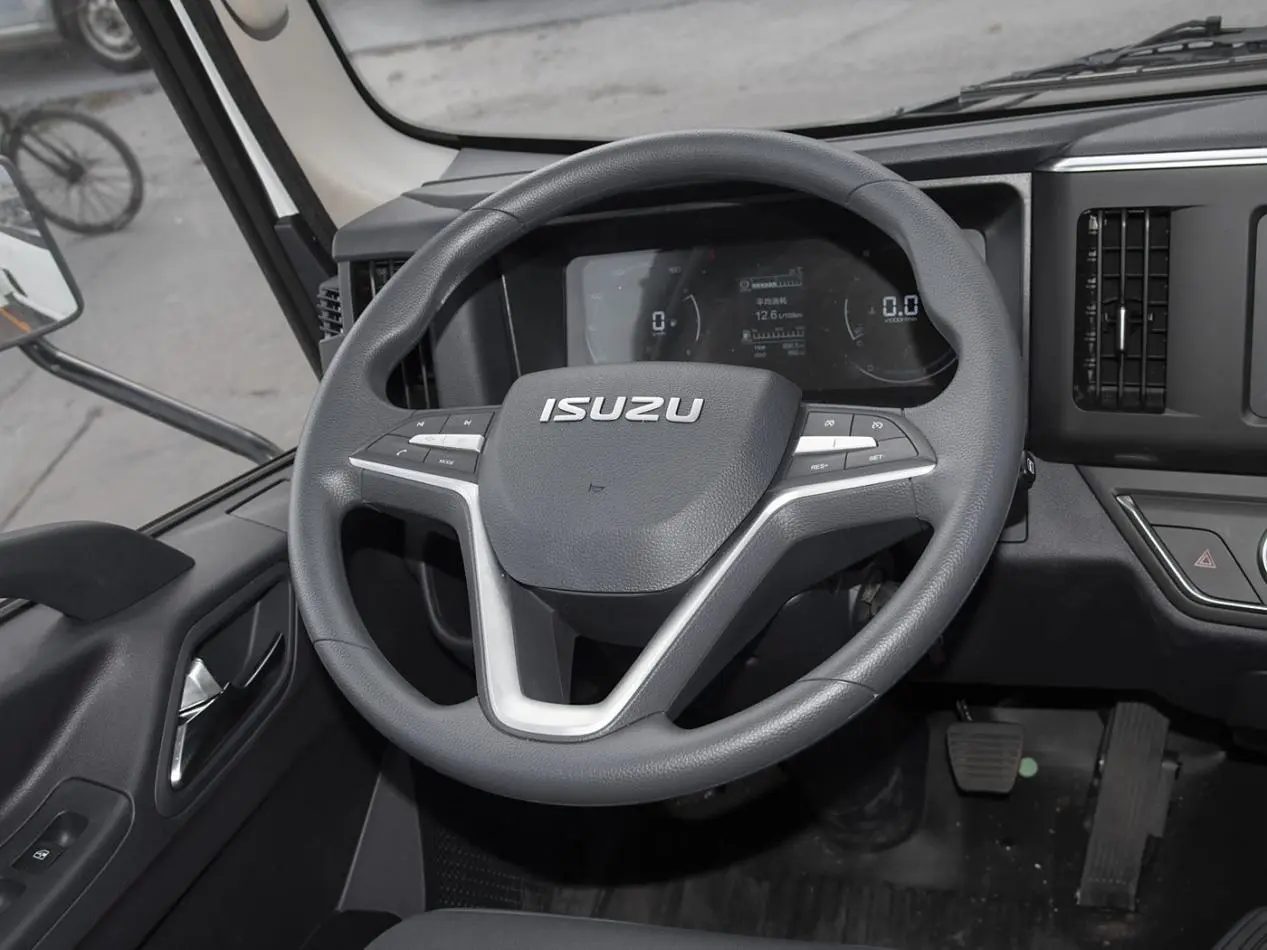

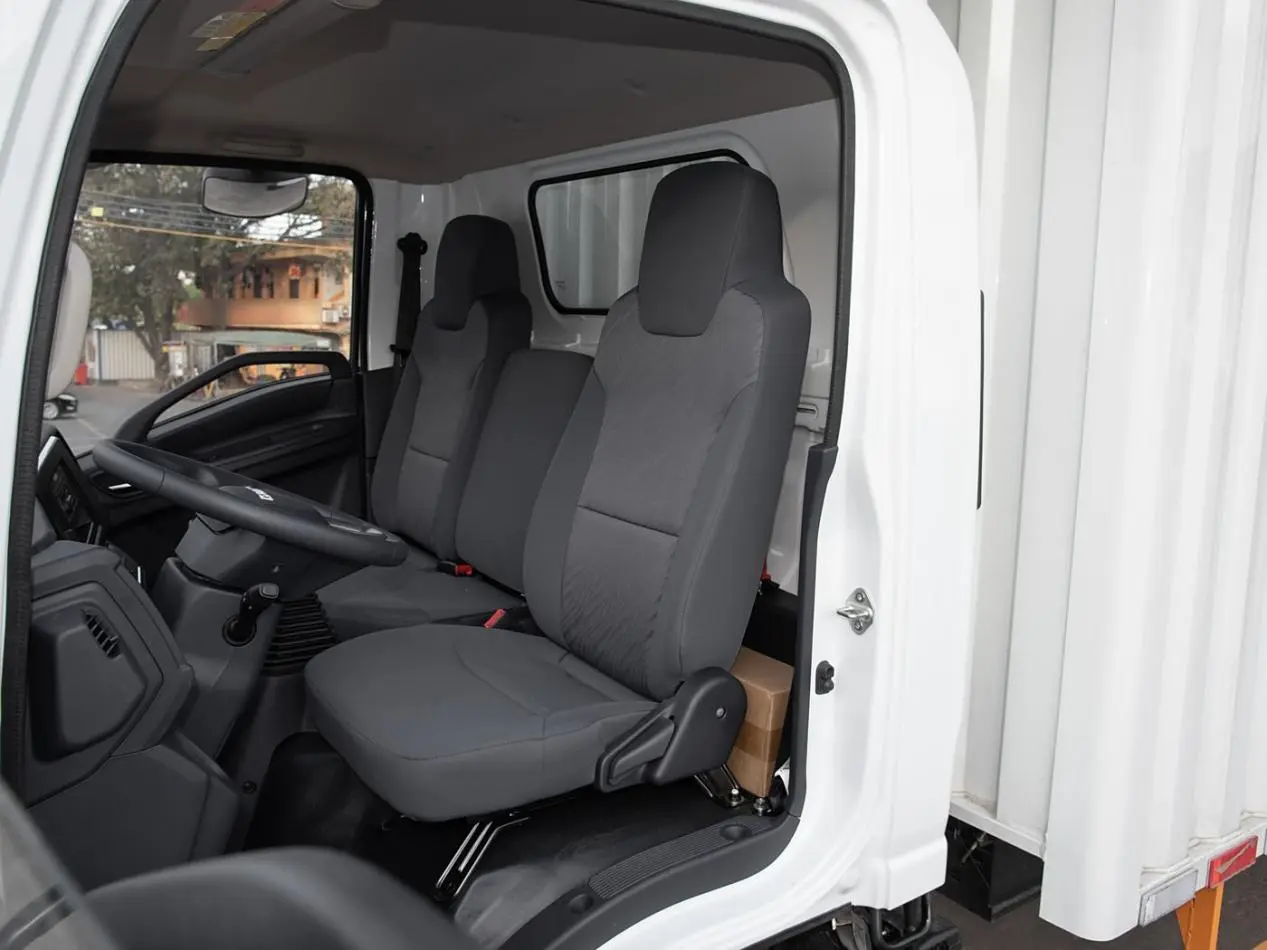

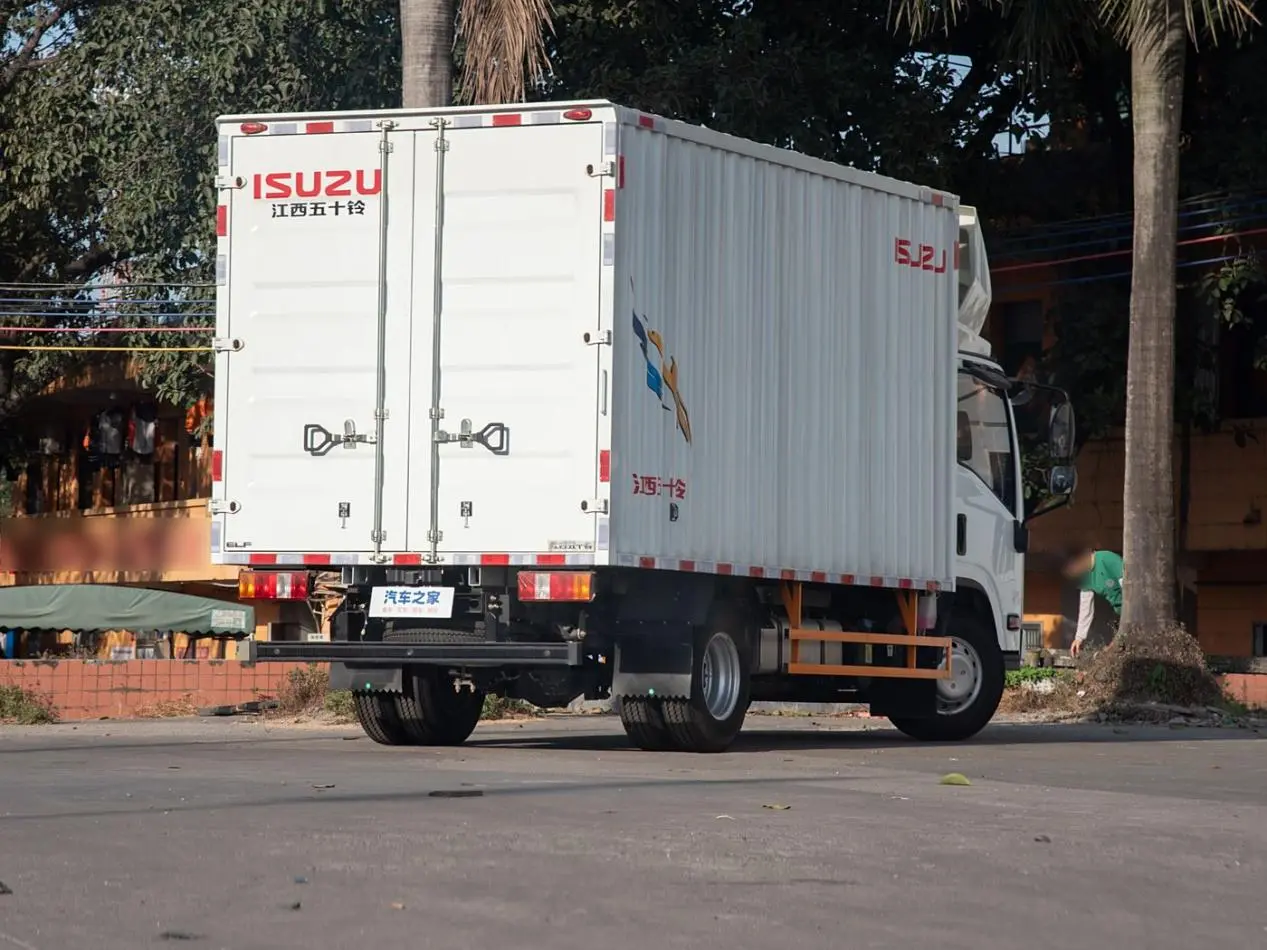

3. Details of EM detailed pictures as follows:
