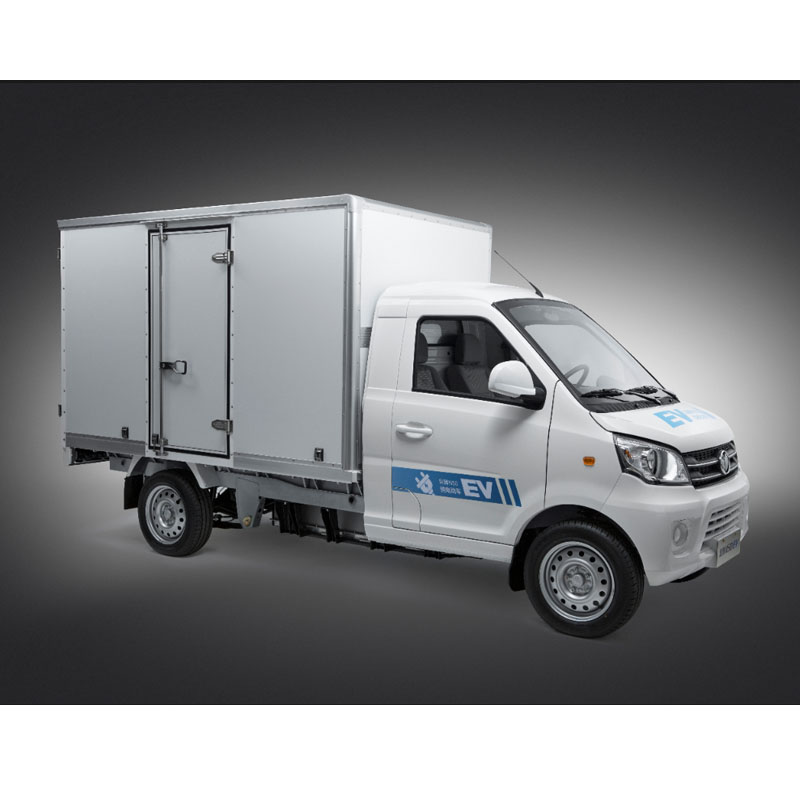

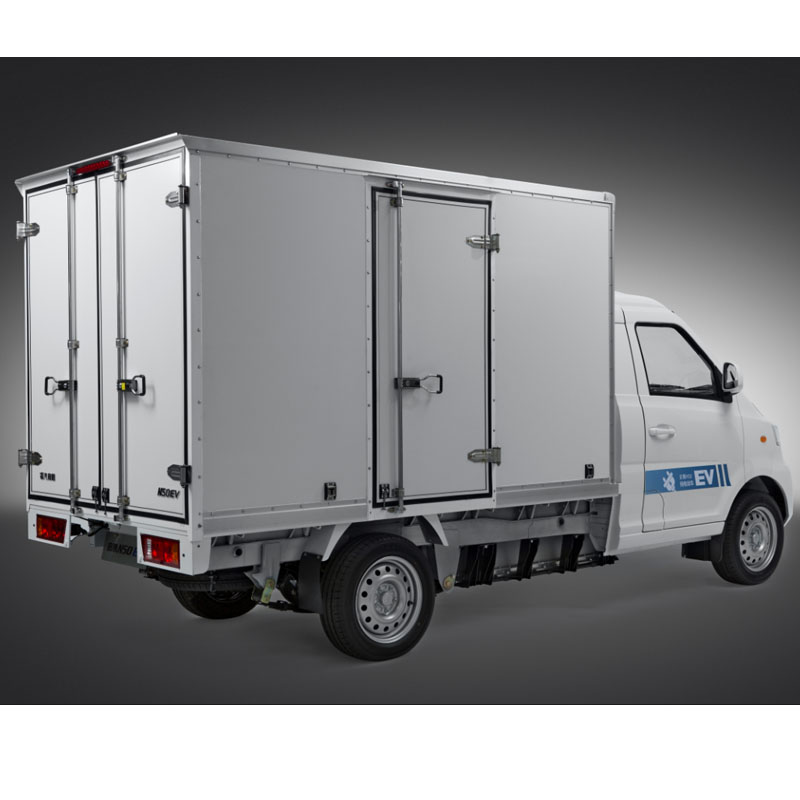

Electric Truck 5TEV

5TEV model is Electric Truck, with ternary lithium battery, rated power is 92.5KWh, max. loading capacity is 2600kgs. Its low energy consumption will save much energy compared with a gasoline vehicle.

Send Inquiry

Product Description

Electric Truck 5TEV
Cab L×W×H: 1683×1900 ×1750 mm
Truck Dimensions L×W×H: 5780×1905×2690 mm
Wheel base 3300 mm
Front overhang 1180 mm
Rear overhang 1400 mm
Weight Gross weight 5,000 KG
Curb weight (without cargo box) 2,360 KG
Performance Endurance mileage 250-300 KM
Min. turning radius 7 m
0-50km/h acceleration Time 10-15 S
Max. Grade ability 26%
Min. ground clearance 200 mm
Maximum speed 100 KM/H
Battery Type Ternary lithium battery
Rated Capacity 176 Ah
Rated power 92.5 KWh
Rated voltage 525.6 V
Motor Type Permanent Magnet Synchronous Motor
 Rated/peak torque 200/380 N•m
Rated/peak power 55/120kw
Max. rpm 6000 rpm
Weight 63 KG
Dimensions ∅274*292 mm
Range of working temperature -40~135 ℃
On board charger Output power 6.6kw
Dimensions 472*244*126mm
Chassis Front axle Front Tread  1646 mm
Front axle rated loading capacity 2000 KG
Rear axle Rear Tread 1590mm
Rear axles loading capacity 3500kg
Rear axle ratio 6.167
Tyre 215/75R16 LT
Braking system Integral hydraulic four-channel ABS Assembly
FR: Disc   RR: Drum
