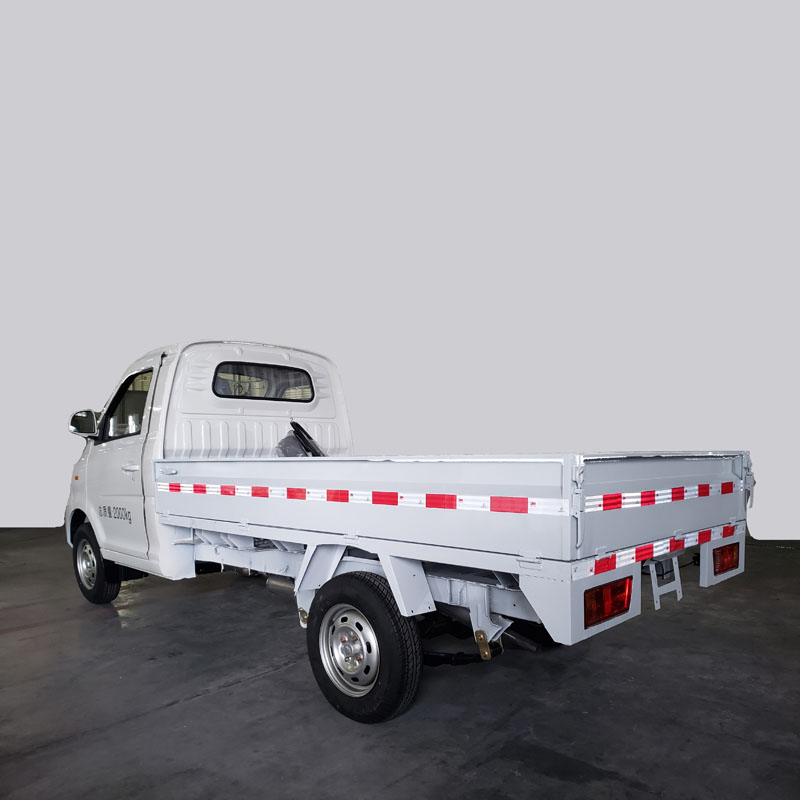

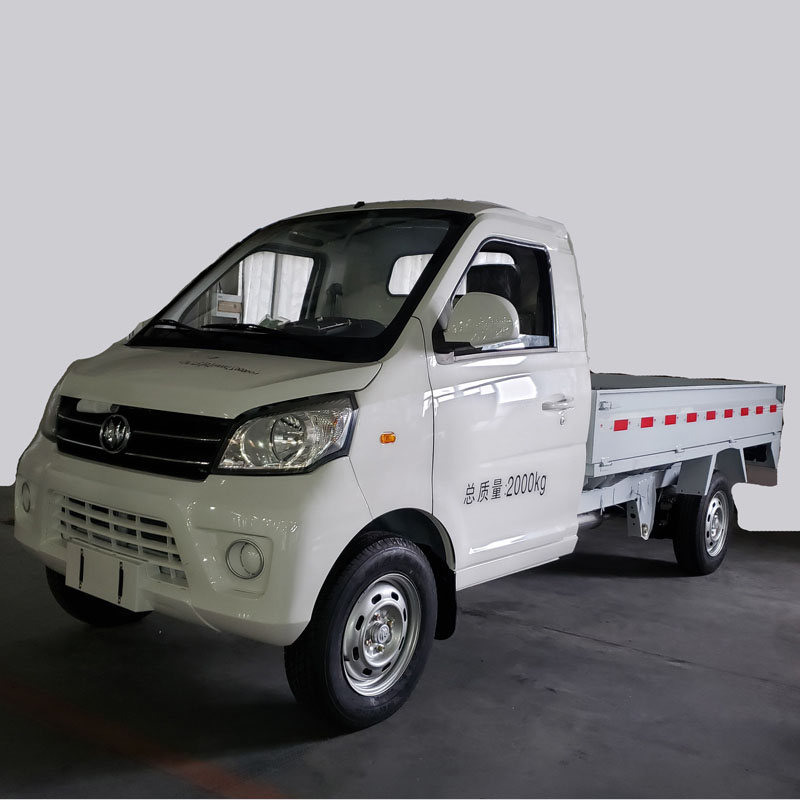

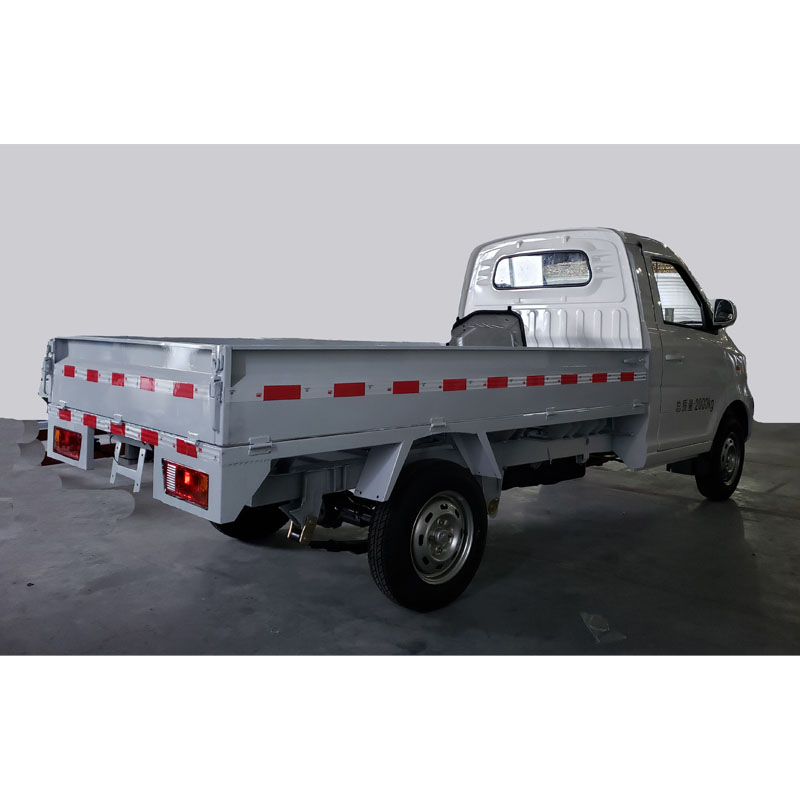

Electric Truck 8TEV

8TEV model is Electric Truck, with ternary lithium battery, rated power is 143KWh, max. loading capacity is 4400kgs. Its low energy consumption will save much energy compared with a gasoline vehicle. Welcome to buy Electric Truck 8TEV from us.

Send Inquiry

Product Description

Electric Truck 8TEV
Cab L×W×H: 1730×1890 ×1860 mm
Truck Dimensions L×W×H: 6300×2005×2715 mm
Wheel base 3800 mm
Front overhang 1200 mm
Rear overhang 1300 mm
Weight Gross weight 8,000 KG
Curb weight (without cargo box) 3,600 KG
Performance Endurance mileage 250-300 KM
Min. turning radius 8.6 m
0-50km/h acceleration Time 12 S
Max. Grade ability 30%
Min. ground clearance 220 mm
Maximum speed 100 KM/H
Battery Type Ternary lithium battery
Rated Capacity 272 Ah
Rated power 143 KWh
Rated voltage 525.6V
Motor Type Permanent Magnet Synchronous Motor
Rated/peak power 70 /112KW
Rated/peak torque 350/860 N•m
Max. rpm 5000 rpm
Weight 110 kg
Dimensions ∅415*215 mm
Range of working temperature -40~135 ℃
On board charger Output power 22kw
Dimensions 374*252*165mm
Chassis Front axle Front Tread 1614 mm
Front axle rated loading capacity 2500 KG
Rear axle Rear Tread 1630mm
Rear axles loading capacity 5500kg
Rear axle ratio 5.38
Tyre 215/75R17.5 16PR
Braking system Four-channel air pressure ABS Assembly
FR/RR: Disc
