NLM MOTOR 6-9 Ton Light Duty Truck

✅ ‌Carry more, run faster‌: 6-ton payload capacity, one trip equals two, no more duplicate hauls.
✅ ‌Fuel-efficient and worry-free‌: Optimized powertrain, fuel consumption is 1.5L/100km lower than its peers, saving over 8,000 yuan annually.
✅ ‌Easy driving‌: 3.8-5.2 meter wheelbase, easily maneuvering through narrow alleys in the market.
✅ ‌Intelligent convoy‌: Standard rearview camera and ABS, turning novice drivers into experienced drivers in seconds.

Send Inquiry

Product Description

1. Introduction of NLM MOTOR 6-9 Ton Light Duty Truck

The NLM MOTOR 6-9 Ton Light Duty Truck is equipped with the Foton Cummins ISF3.8S5154 engine, paired with the FAST 6DSX60T gearbox, providing strong power and a powerful start; High strength steel frame with large rear axle, excellent load-bearing capacity; Adopting a high-end braking system, with multiple reliable verifications, the braking effect is excellent, making driving safer. Suitable for various transportation and complex working conditions in application scenarios.

2. Parameter (Specification) of NLM MOTOR 6-9 Ton Light Duty Truck

Category	Type	GVW 6T (2025 Version Cabin)	GVW 9T
Model	Chassis	ZZ1068F3815E1	ZZ1098F4515E1
General Info	Application Purpose	Urban logistics transport	Urban logistics transport
	Driving Form	4X2	4X2
	Wheelbase	3800 mm	4500 mm
	GVW	6 T	9 T
	Curb Weight	Roughly 3100kg without cargo box	Roughly 3360kg without cargo box
	Front Overhang	1040	1040
	Rear Overhang	2090	2290
	Box Dimension (LWH)	48502050500	57502150500
	Overall Dimension (LWH)	7130x2250x2470 (Without spolier and rear-view mirror)	7980x2250x2550 (Without spolier and rear-view mirror)
Cabin	Model	208019331438 with 1 berth Berth width: 350mm With standard spoiler	208019331438 with 1 berth Berth width: 350mm With standard spoiler
Engine	Engine Model	ISF3.8S5154	ISF3.8S5154
	Max (hp/rpm)	113KW(154HP )@ 2600 r/min	113KW(154HP )@ 2600 r/min
	Max Torque (N.m/rpm)	500 N.m@ 1200 -2200r/min	500 N.m@ 1200 -2200r/min
	Emission L	3.760L	3.760L
	Emission	Euro V, EEV	Euro V, EEV
	Fuel-Injection Systems	High pressure common rail	High pressure common rail
	Radiator and Intercooler	Water-cooled with tank	water-cooled with tank
	Exhaust Brake	√	√
Transmission	Transmission	FAST 6DSX60T	FAST 6DSX60T
	Type of Gearbox	MT with syntronizer	MT with syntronizer
	Gear Shift	6F&1R	6F&1R
	Torque	600N.m	760N.m
	Ratio	6.667,4.014,2.416,1.522,1,0.777,6.133 (R)	6.667,4.014,2.416,1.522,1,0.777,6.133 (R)
Clutch	Clutch Spec.	Ф350mm	Ф350mm
Frame	Height	216	216
Frame	Thickness	6	6
Axle	Front Axle_Brake Type	Disc	Disc
	Front Axle_Load	1061J(2.7T)	1061J(2.7T)
	Rear Axle_Load	1080(7.2T)	1080(7.2T)
	Rear Axle_Final Reduction Ratio	4.333	4.875
	Rear Axle_Brake Type	Drum	Drum
	Front Axle Stabilizer Bar	√	√
	Rear Axle Stabilizer Bar	√	√
Suspension	Front Suspension Spring	3 pieces leaf spring	11 pieces leaf spring
Suspension	Rear Suspension Type	5+3 pieces leaf spring	11+7 pieces leaf spring
Brake System	ABS+ESC	Ruili Kormee	Ruili Kormee
	Parking Brake/ Trail Brake	Ruili Kormee	Ruili Kormee
	AEBS	Ruili Kormee	Ruili Kormee
	LDWS	Ruili Kormee	Ruili Kormee
	Working Air Pressure(circuit pressure)	√	√
	Air Tanks	√	√
Steering	Power Steering	√	√
Steering	Steering Machine	China brand	China brand
Tire	Tire	215/75R17.5	235/75R17.5
Tire	Wheel Rim	Steel ring	Steel ring
Other Specs	Fuel Tank Volume	200L,Aluminium	200L,Aluminium
	Adblue Tank Volume	16L	16L
	Battery	2 x (12V 100AH)	2 x (12V 100AH)
	Hill Start Assist (HAS)	√	√
	Rear Buzzer	√	√
	Spare Tire Carrier	Spare tire carrier and spare tire	Spare tire carrier and spare tire
	Rear Fog Lamp	√	√
	Tail Light	√	√
	Engine Idle Adjuster-PTO	√	√
	Mud Guard	○	○
	Side Guard	○	○
	Rear Guard	○	○
	Rear Camera	√	√
	Sunvisor	√	√

3. Details of NLM MOTOR 6-9 Ton Light Duty Truck

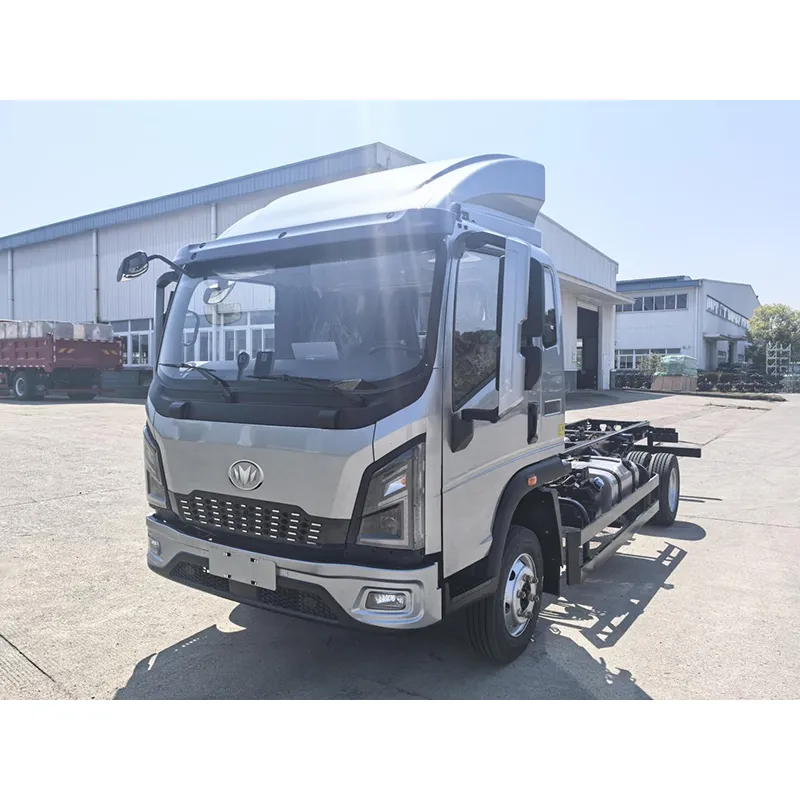

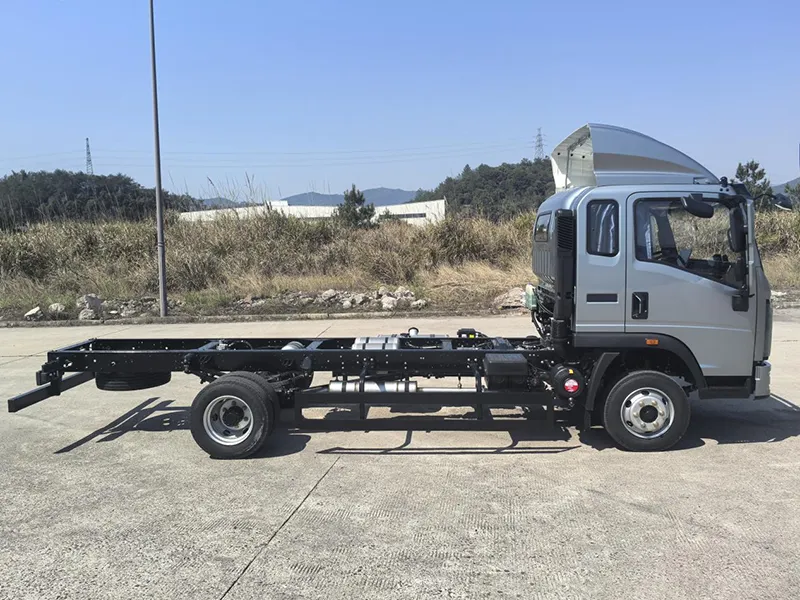

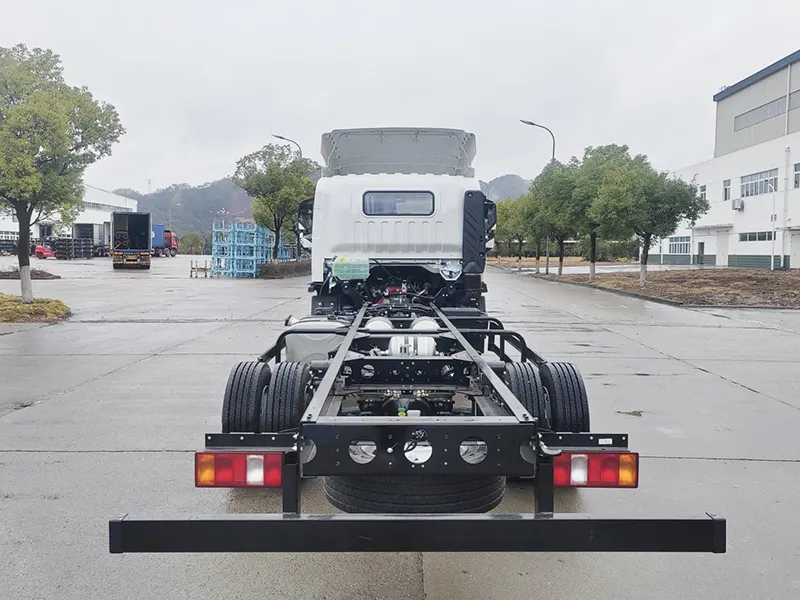

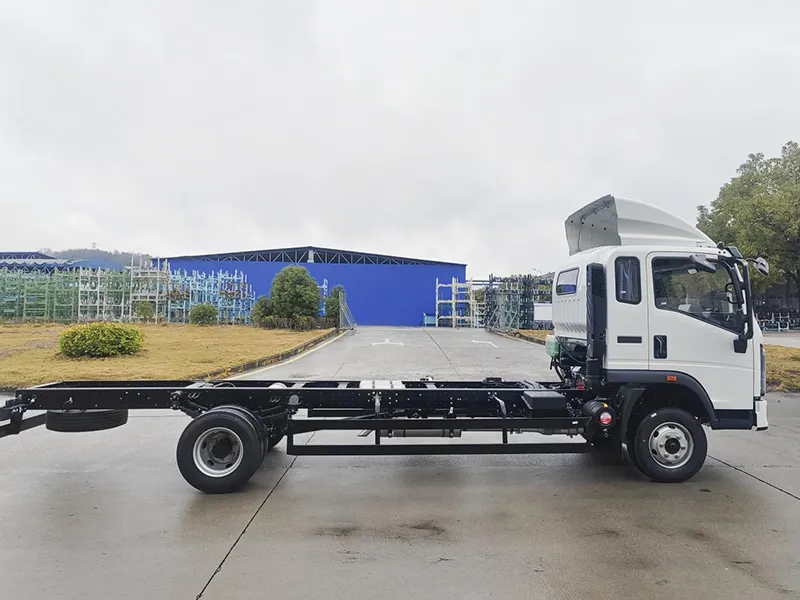

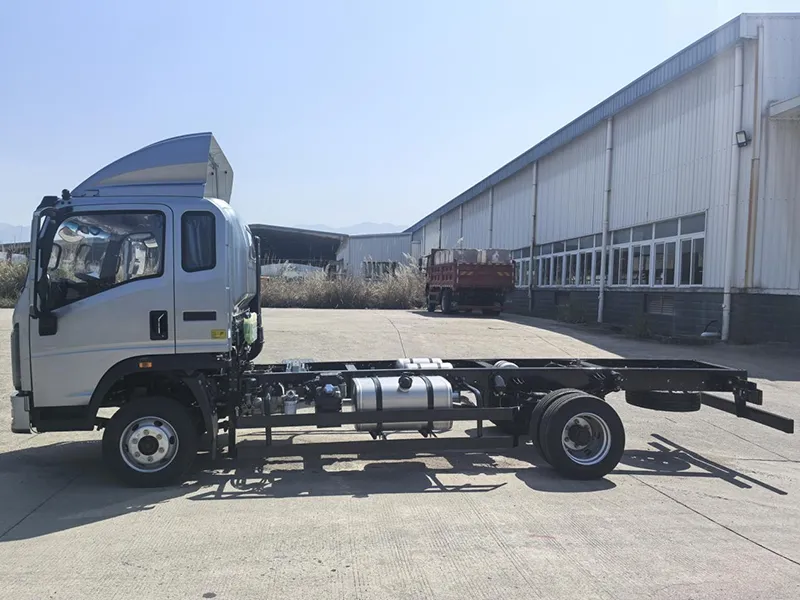

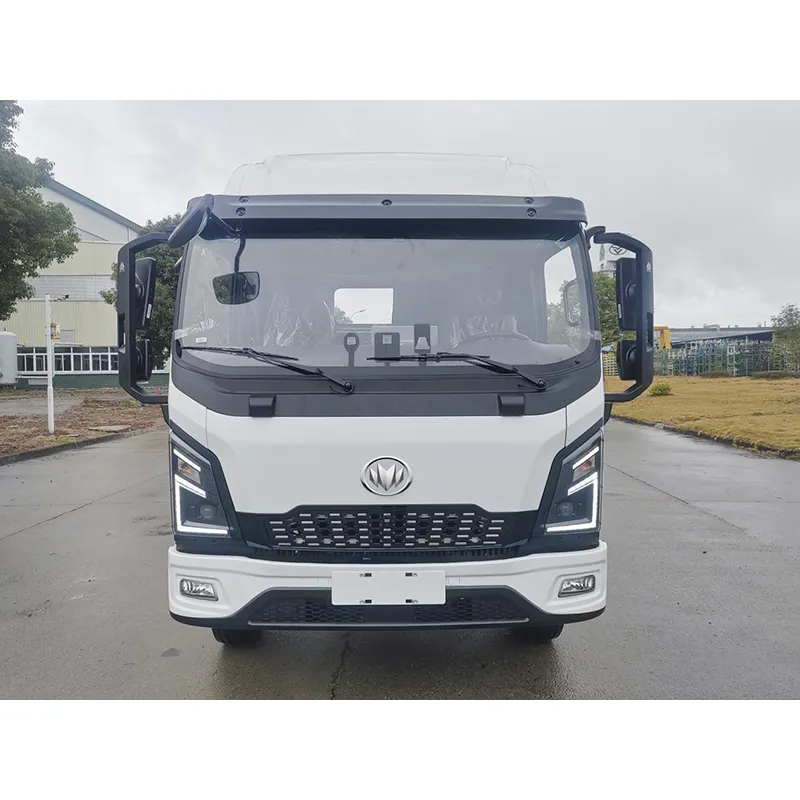

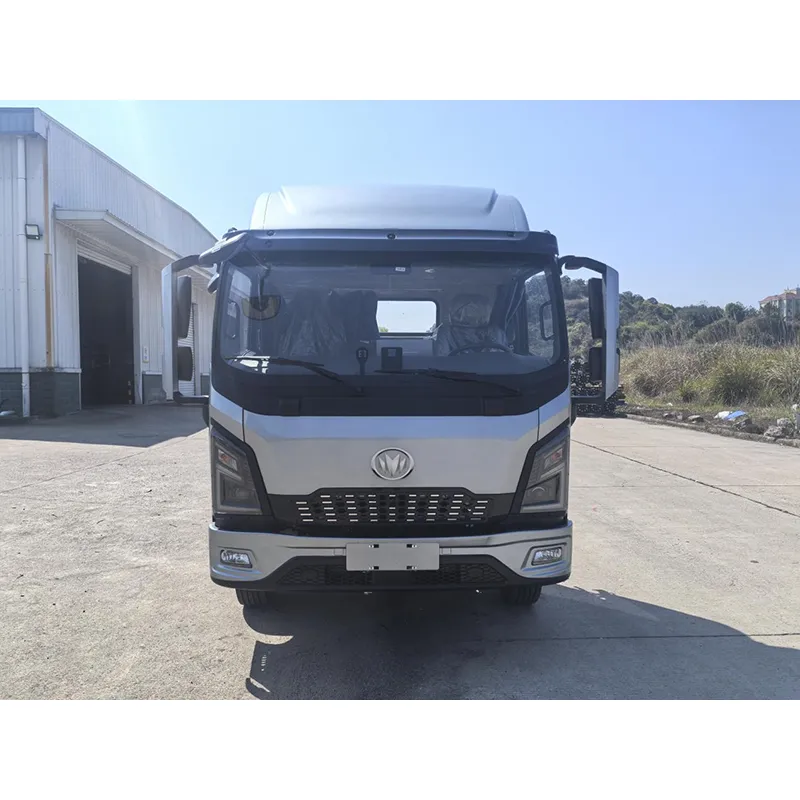

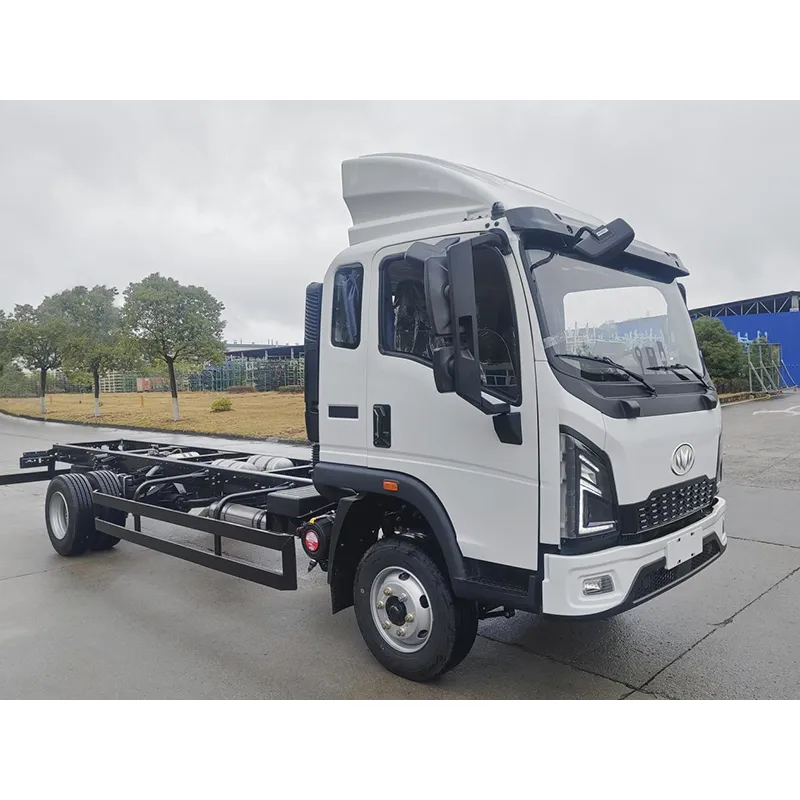

NLM MOTOR 6-9 Ton Light Duty Truck’s detailed pictures as follows:
