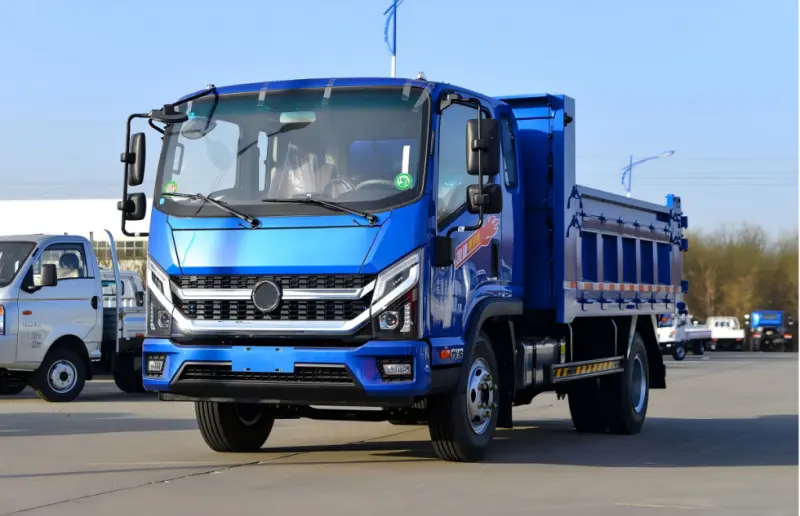

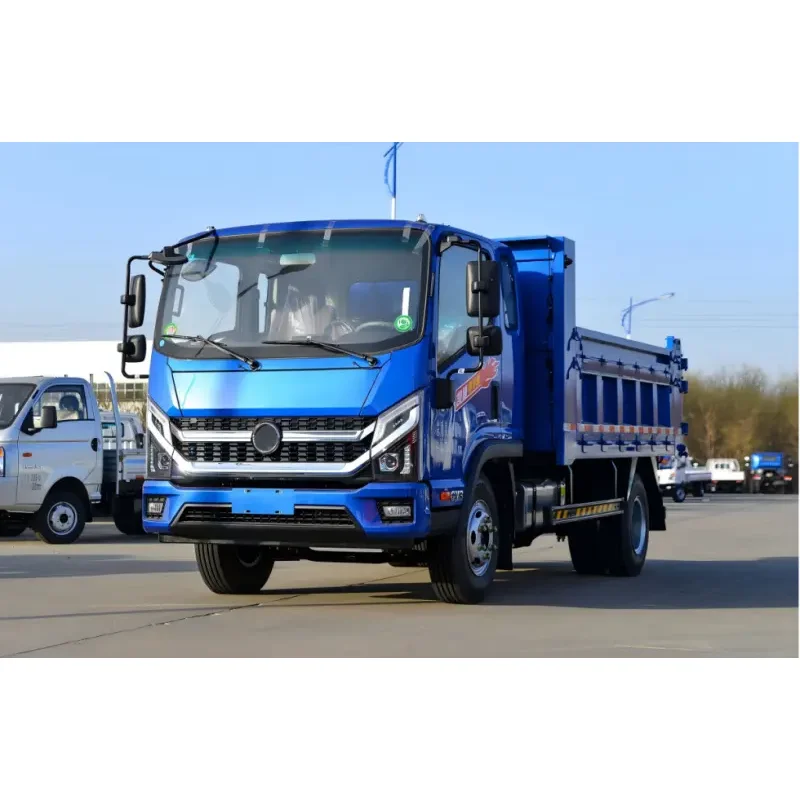

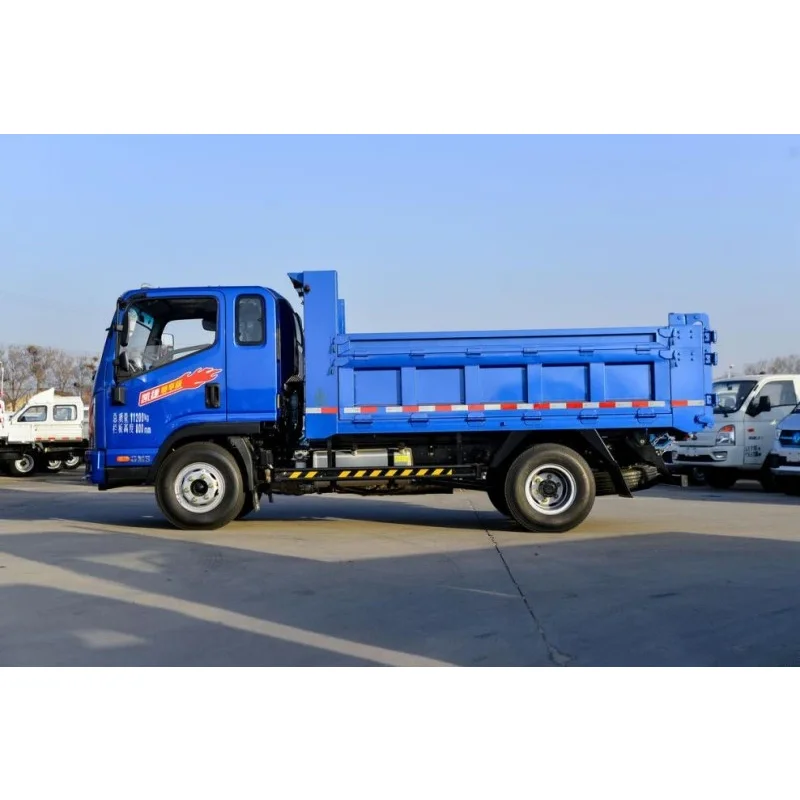

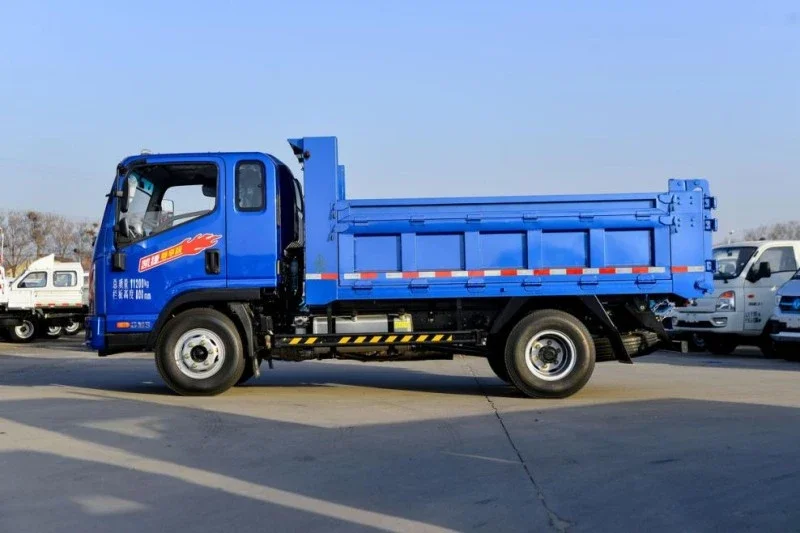

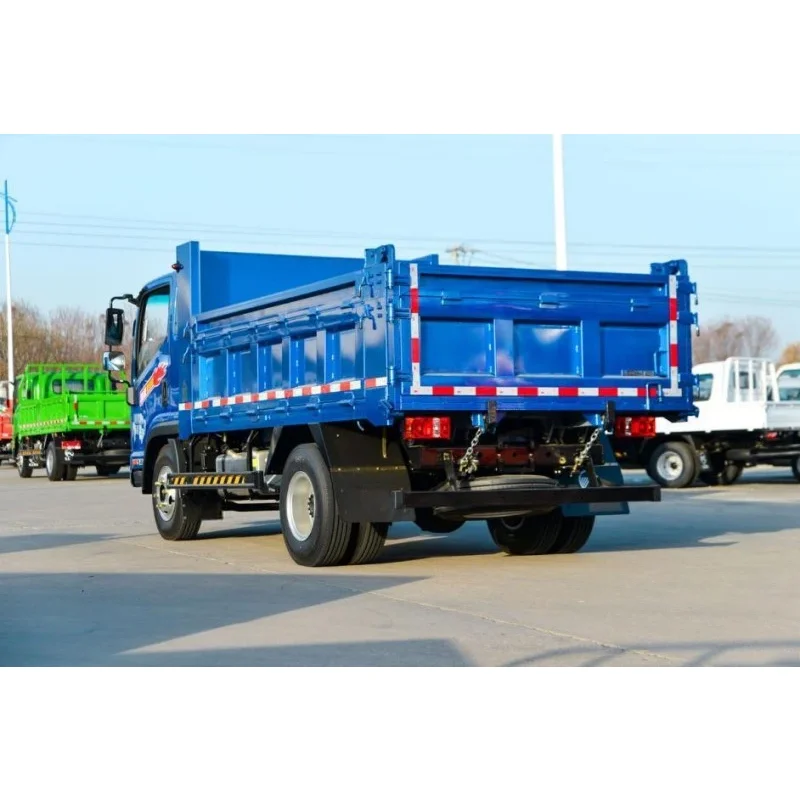

Srpski језик KEYTON GM36B is a medium-duty truck designed for versatile cargo transportation in urban and regional settings. With its robust build, powerful engine, and practical cargo box, it delivers excellent value for logistics companies and distribution operators.
Powered by a 2.982L diesel engine producing 88 kW of power and 345 N·m of torque, the GM36B offers strong and reliable performance for daily hauling tasks. The one-and-a-half cabin design with a 3,260 mm wheelbase provides a spacious cargo box, capable of handling up to 6.5 tons of payload. Equipped with air brake system, spring energy parking brake, ABS, power steering, air conditioning, power windows, and central lock, the GM36B combines commercial capability with driver comfort. Whether for city deliveries or regional transport, the KEYTON GM36B is a cost-effective and dependable choice.
|
Model |
GM36B |
|
Emission |
Euro-Ⅱ |
|
Suggested payload |
6.5T |
|
Cabin |
one and half cabin(1900) |
|
Wheel base |
3260 |
|
Front/rear overhang(mm) |
1130/1460 |
|
Overall dimensions(mm) |
5850*2280*2400 |
|
Cargo box size(mm) |
3650*2100*600 |
|
Curb weight(kg) |
4700 |
|
G.V.W |
11200 |
|
Max.speed(km/h) |
100 |
|
Tyre model |
8.25R16 |
|
Wheeltrack(front/rear) |
1610/1655 |
|
Final ratio |
5.286 |
|
QTY of wheels |
6+1 |
|
Brake system |
Air brake |
|
Parking brake |
Spring energy air cut brake |
|
Gearshift |
8+2 speed,manually |
|
Battery volt |
24V |
|
Displacement(cc) |
2982 |
|
Power(kw)/rpm |
88/3200 |
|
Torque(n.m)/rpm |
345/1800-2200 |
|
ABS |
● |
|
Power steering |
● |
|
Media |
MP5 |
|
A/C |
● |
|
Power window |
● |
|
Central lock |
● |
Key highlights of the KEYTON GM36B:

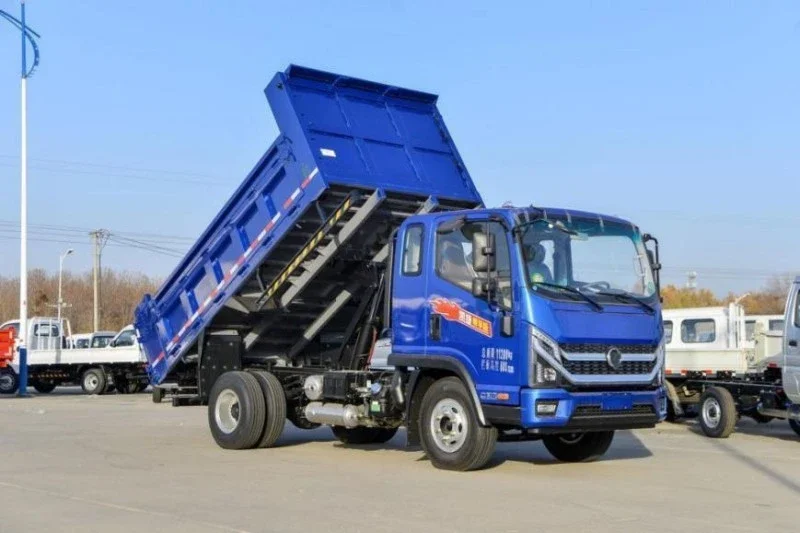

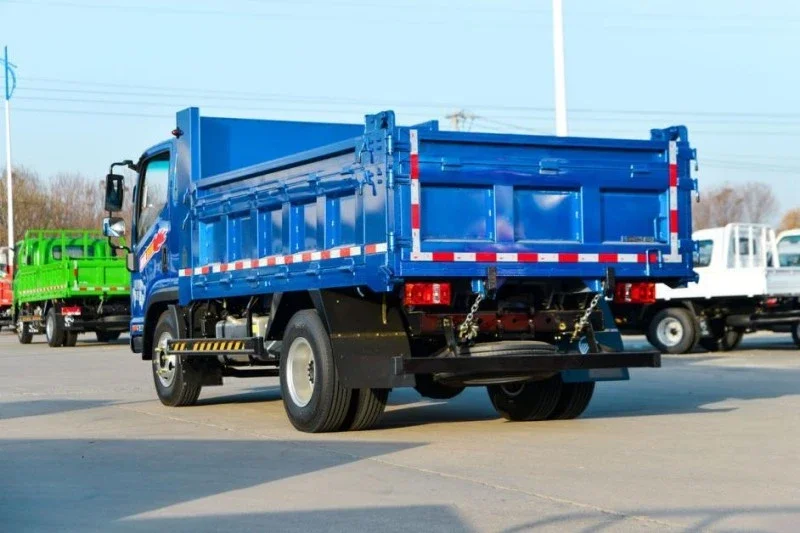

· Large cargo capacity: 3,650×2,100×600 mm cargo box with 6.5-ton payload, ideal for urban deliveries, logistics, and distribution operations.
· Robust chassis & suspension: Durable construction with 8.25R16 tires (6+1) and air brake system for stable and safe driving.
· Easy maintenance: Simple mechanical structure with widely available parts, reducing downtime and maintenance costs.



The KEYTON GM36B passes the following quality management certifications:
The GM36B has a recommended payload of 6.5 tons, with a gross vehicle weight of 11,200 kg.
The GM36B is powered by a 2.982L diesel engine, delivering 88 kW of power and 345 N·m of torque.
The GM36B comes equipped with power steering, air conditioning, power windows, central lock, and an MP5 media system for a more comfortable driving experience.
