Keyton Electric Mini Refrigerator Van

KEYTON Electric Mini Refrigerator Van is a smart and reliable model, with advanced ternary lithium battery and low noise motor. Its low energy consumption will save as much as 85% energy compared with a gasoline vehicle.

Send Inquiry

Product Description

Introduction of Electric Mini Refrigerator Van

Basic parameters of the whole vehicle

Project					Electric Mini Refrigerator Van
Main configuration					CATL battery
Number of seats (including driver)					2
Dimension	Size			LWH，㎜	4490 1610 2050,2115
	Cargo space			LWH，㎜	2170 1280 1060
	Wheelbase，㎜				3050
	Tread			Front，㎜	1386
				Rear，㎜	1408
Weight	Curb weight，㎏				1670
	Total weight，㎏				2900
	Rated load mass，㎏				1230
Pass parameter	Minimum ground clearance，㎜				125
	Front suspension，㎜				545
	Rear suspension，㎜				895
	Approach angle，（°）				28
	Departure angle，（°）				17
	Minimum turning diameter，m				11.9
Driving range(km)	Working condition method				245
Steering gear	Type				Rack and pinion type (with power assist)
Rear axle	Main reducer				Two stage cylindrical gear speed ratio 8.952
	Differential mechanism				Straight planet bevel gear
Driving system	Front suspension				Spiral spring McPherson type independent suspension
	Rear suspension				Leaf spring non independent suspension
	Tire specification（F/R）				175/75R14C；185R14C（Rear）
Braking system	Type				Double circuit X-type hydraulic brake
	Brake				Front disk rear drum
	Parking brake				Mechanical cable type applied to rear wheel brake
Driving motor	Quantity, set / vehicle				1
	Type				Permanent magnet synchronous motor
	Model				TZ180XSIN101
	Phase number m				3
	Rated torque，N·m				90
	2min maximum torque 2Min，N·m				220
	Rated power，kW				30
	2min maximum power 2min，kW				60
	Rated speed，r/min				3183
	Rated efficiency，％				96.5
Motor controller	Model				IEVD170-34Z50AL
	Rated voltage，V				336
Electrical system	Auxiliary battery				12V
	Power battery		Battery type		Lithium iron phosphate battery
			Rated voltage，V		334.88
			Capacity C3，A·h		125
			Service life		5 years or 200000 km
			Energy density（W.h/kg)		137.6
	Charger (AC / DC)		Input voltage，VAC		220
			Maximum output current，A		3.3kw charger ≤ 10
	Maximum charging time，h				3.3kw charger ≤ 12
	Lighting, signal				Headlamp, front and rear turn light, front and rear position light, brake light, rear fog light, reversing light, license plate light, combination instrument, interior light, indicator light, horn, hazard warning light, etc
Air conditioning	Air conditioning	Electric compressor Rated power，W			950
		Refrigerating capacity，W			1850
		Cryogen			R134a
	Heater	Rated fan power，W			175
		Calorific value，W			2000
Refrigerating performance	Time needed for reefer temperature down to the lowest(-10°C), h[In summer, circumstances temperature: 30°C, constant speed at 40km/h ]				≤4
	Running for 4 hours at , the variation of average temperature, K [circumstances temperature: 30°C]				≤2
	Reefer air impermeability（h-1）, 20 m2≤heat transfer surface of reefer≤40 m2				≤3.8
	Insulation performance of reefer（W/(m2·K)）				≤0.4
	Rainfall test				No leakage
Refrigerating unit	Type				E type
	Model				YZ280E，YD-318DE
	Reefer temperature range				-10℃～+20℃
	Refrigerating output(W)				2000(0℃)
	Driving mode				Independent
	Voltage DC（V）				336
	Refrigerant				R404A
	Reefer temperature adjusting				Electronic digit display
	Safety device				High-low voltage switch safety protection
	Defrosting mode				Manual/automatic defrosting

Details of Electric Minivan

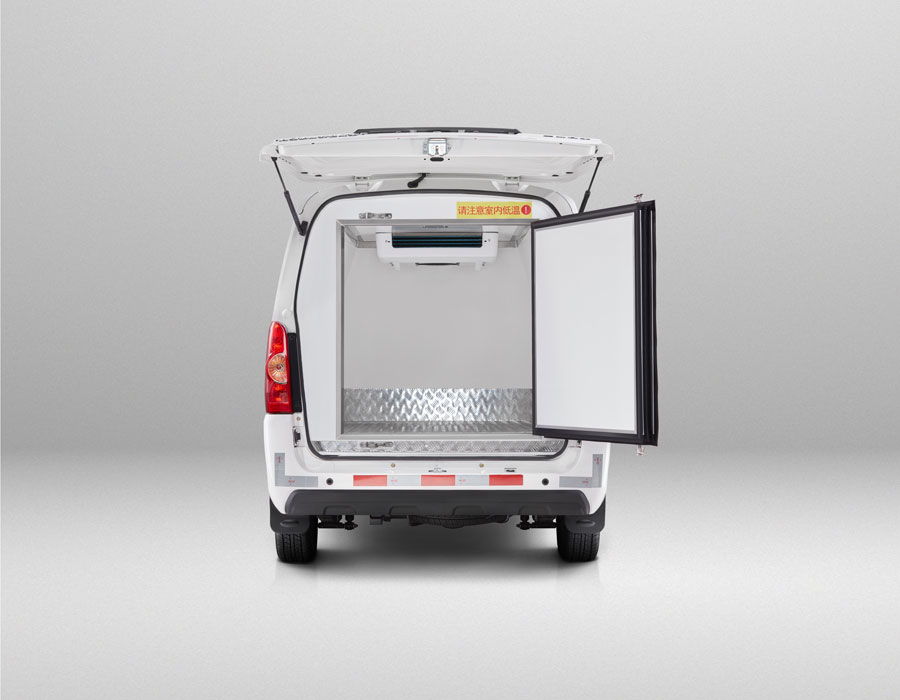

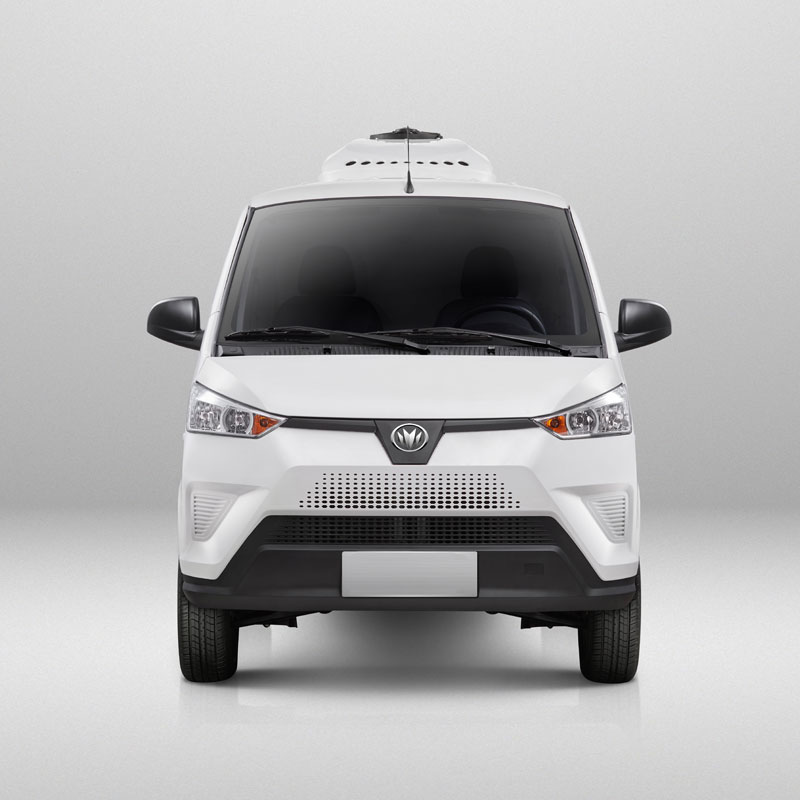

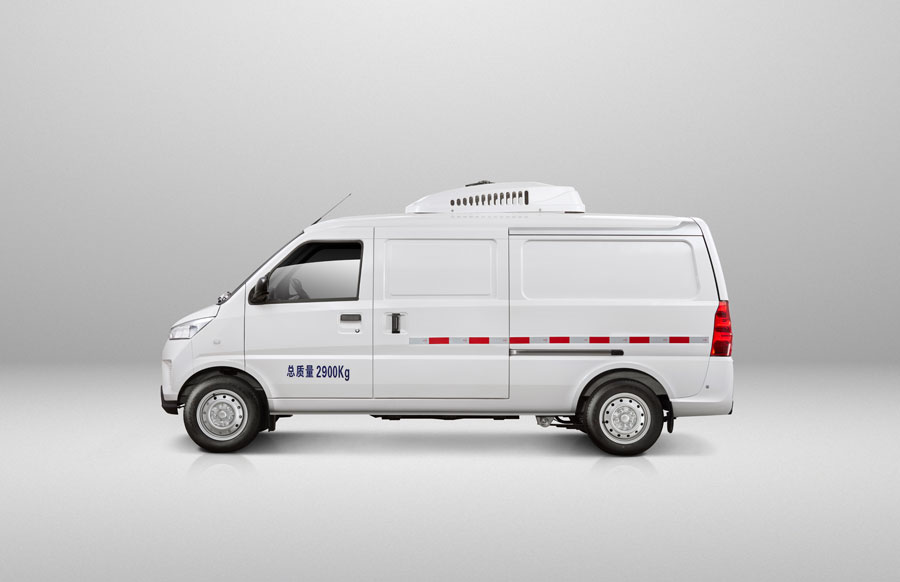

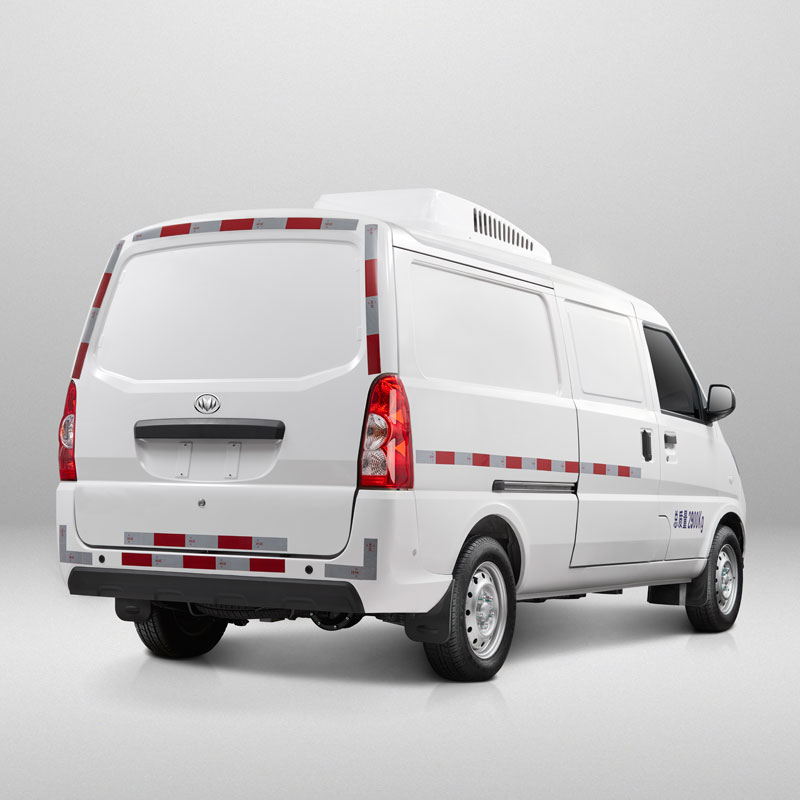

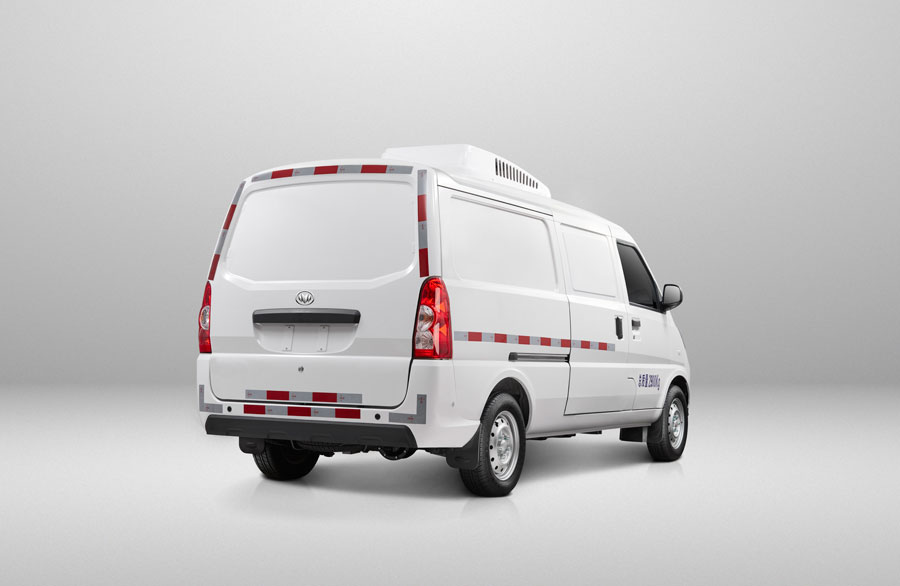

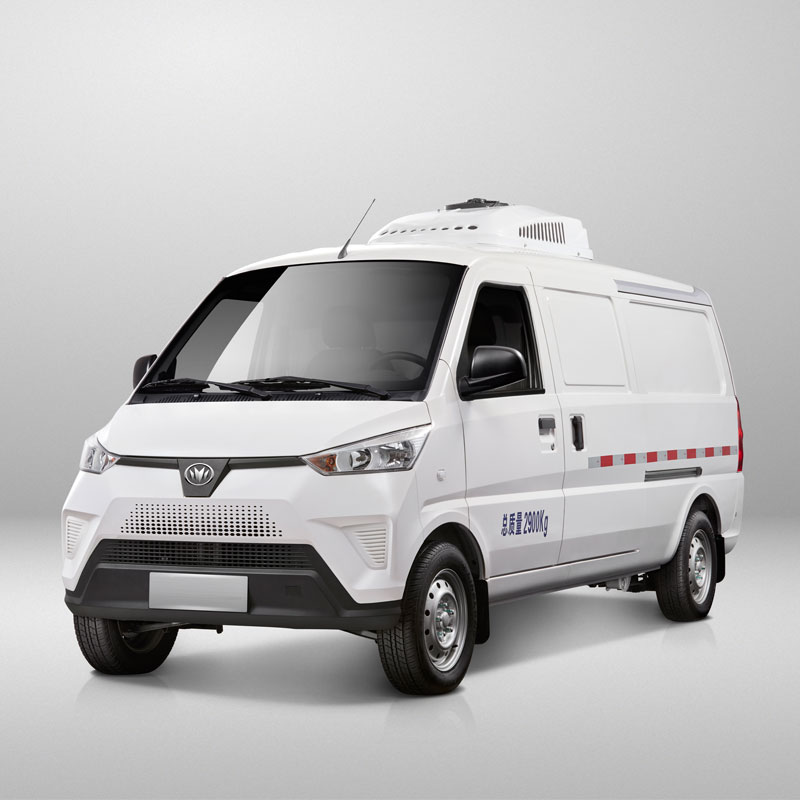

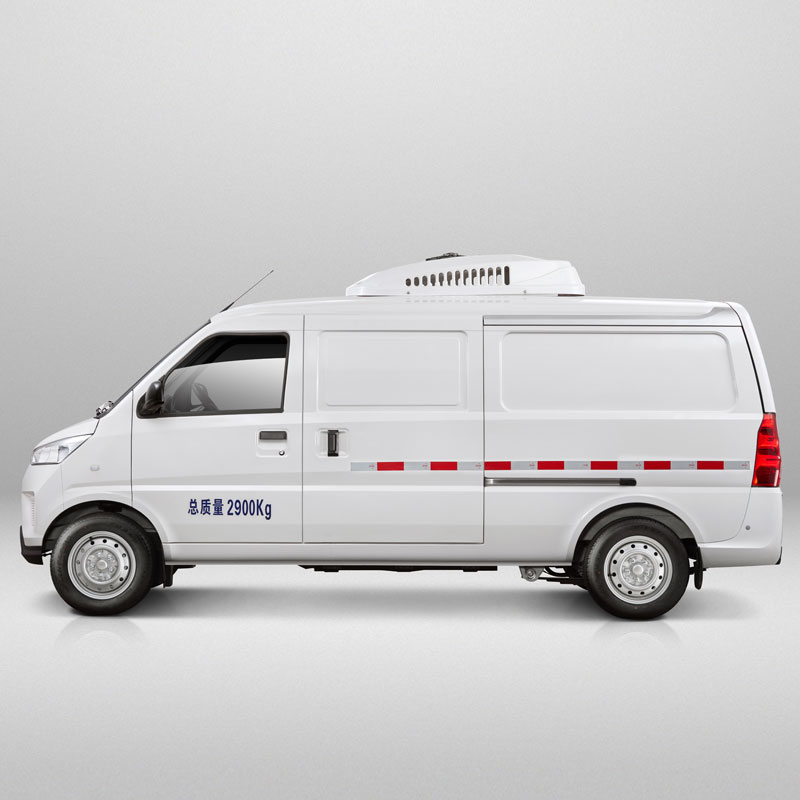

KEYTON Electric Mini Refrigerator van’s detailed pictures as follows:

Product Qualification

KEYTON EV50 Electric Minivan passes the following quality management certifications:

FAQ

1.What is the selling point of your company?

Our FJ Group is the JV partner with Mercedes-Benz, producing V Class in China. That’s why all our products standard is even higher than other Chinese brands.

2.How many countries have you ever exported to?

We have exported to Bolivia, Myanmar, Philippines, Egypt, Nigeria, about 20 countries.

3.What is your biggest overseas market?

We have sold more than 5,000 units to Bolivia since 2014, and the altitude of that country is about 3,000 meters. Which means the vehicles is running well in the tough area.

4.What about the WARRANTY?

We are offering 2 years or 60,000 kms, whichever comes first.

5.What about the delivery time?

45 days since down payment.
