1.Introduction of Toyota Camry Hybrid Electric Sedan
The car is equipped with a 2.0L hybrid power. The maximum engine power is 145KW, the total electric motor power is 83KW, the maximum engine torque is 188N·m, and the maximum electric motor torque is 206N·m. It is matched with an E-CVT electronic continuously variable transmission. The overall power output is linear and the acceleration performance is strong. The actual acceleration from 0 to 100 km/h is 8.88 seconds. The fuel consumption advantage is obvious. The WLTC comprehensive working condition fuel consumption is as low as 4.2L/100KM, and the actual measurement by Dongchedi is 4.09L/100KM.
2.Parameter (Specification) of Toyota Camry Gasoline Sedan
Camry 2024 Model Hybrid 2.0HE Elite Edition |
Camry 2024 Model Hybrid 2.0HGVP Luxury Edition |
Camry 2024 Model Hybrid 2.0HG Prestige Edition |
Camry 2024 Model Hybrid 2.0HS Sport Edition |
Camry 2024 Model Hybrid 2.0HXS Sport Plus Edition |
|
Maximum power (kW) |
145 |
||||
Maximum torque (N · m) |
— |
||||
WLTC Combined Fuel Consumption |
4.2 |
4.5 |
|||
Body structure |
4-Door 5-Seat Sedan |
||||
Engine |
2.0L 152Horsepower L4 |
||||
Length * Width * Height (mm) |
4915*1840*1450 |
4950*1850*1450 |
|||
Official 0-100km/h acceleration (s) |
— |
||||
Maximum speed (km/h) |
180 |
||||
Curb weight (kg) |
1585 |
1590 |
1595 |
1610 |
|
Maximum Loaded Mass(kg) |
2070 |
||||
Engine model |
M20F |
||||
Displacement |
1987 |
||||
Intake Form |
●Naturally Aspirated |
||||
Engine Layout |
●Transverse |
||||
Cylinder Arrangement Form |
L |
||||
Number of Cylinders |
4 |
||||
Valvetrain |
DOHC |
||||
Number of Valves per Cylinder |
4 |
||||
Maximum Horsepower |
152 |
||||
Maximum power (kW) |
112 |
||||
Maximum Power Speed |
6000 |
||||
Maximum torque (N · m) |
188 |
||||
Maximum Torque Speed |
4400-5200 |
||||
Maximum Net Power |
112 |
||||
Energy Source |
●Hybrid |
||||
Fuel Octane Rating |
●NO.92 |
||||
Fuel Supply Method |
Mixed Injection |
||||
Cylinder Head Material |
● Aluminum alloy |
||||
Cylinder Block Material |
● Aluminum alloy |
||||
Environmental Standards |
●Chinese VI |
||||
Motor type |
rear permanent magnet/synchronous |
||||
Total power of electric motor (kW) |
83 |
||||
Total torque of electric motor (N-m) |
206 |
||||
Number of driving motors |
Single Motor |
||||
Motor layout |
Front |
||||
Battery type |
●Triple lithium Battery |
||||
for short |
E-CVT (Electronic Continuously Variable Transmission) |
||||
Number of gears |
|||||
Transmission type |
Electrical Continuously Variable Transmission Box |
||||
Driving method |
|||||
Front suspension type |
●MacPherson independent suspension |
||||
Rear suspension type |
●Double-wishbone independent suspension |
||||
Assistance type |
●Electric power assistance |
||||
Vehicle structure |
Load bearing type |
||||
Front brake type |
●Ventilation disc type |
||||
Rear brake type |
● Disc type |
||||
Parking brake type |
● Electronic parking |
||||
Front tire specifications |
●215/55 R17 |
●215/55 R17 O235/45 R18(¥2000) |
●235/40 R19 |
||
Rear tire specifications |
●215/55 R17 |
●215/55 R17 O235/45 R18(¥2000) |
●235/40 R19 |
||
Spare tire specifications |
●Non-Full Size |
||||
Driver/passenger seat safety airbag |
Main●/Sub● |
||||
Front/rear side air wrap |
Front●/Back● |
||||
Front/rear head airbags (air curtains) |
Front ●/Back ● |
||||
Knee Airbag |
● |
||||
Front Center Airbag |
● |
||||
Tire pressure monitoring function |
● Tire pressure display |
3.Details of Toyota Camry Gasoline Sedan

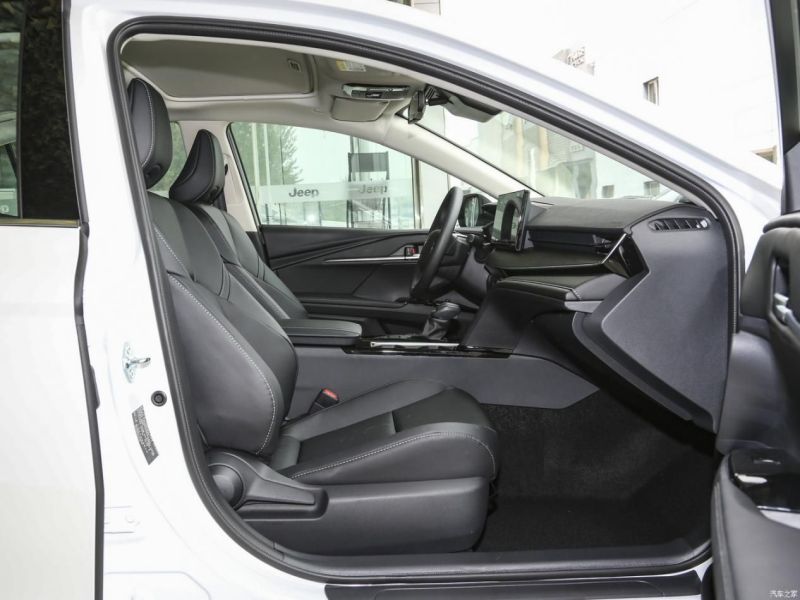

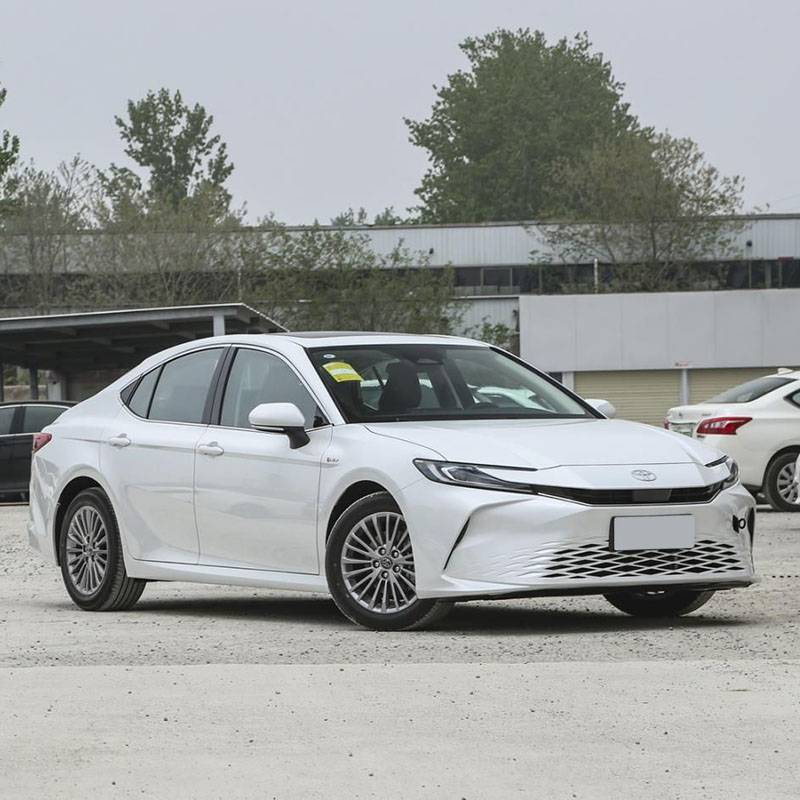

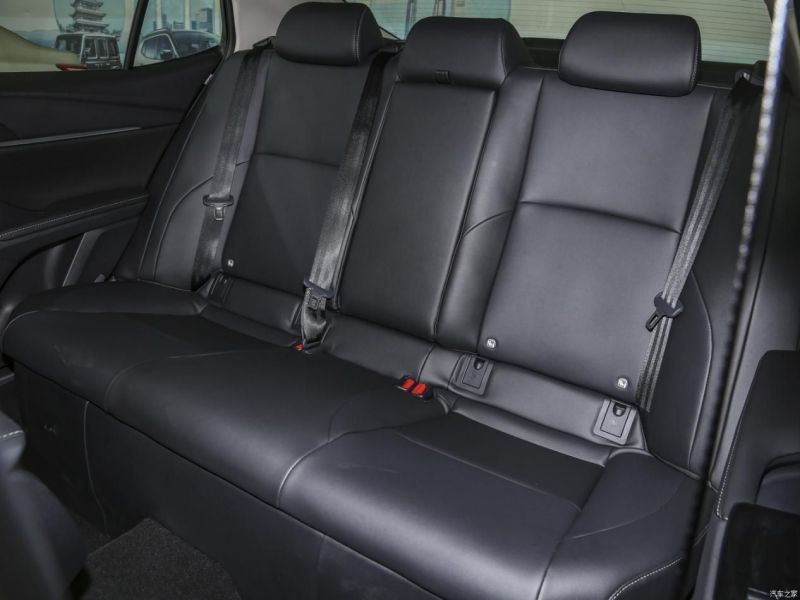

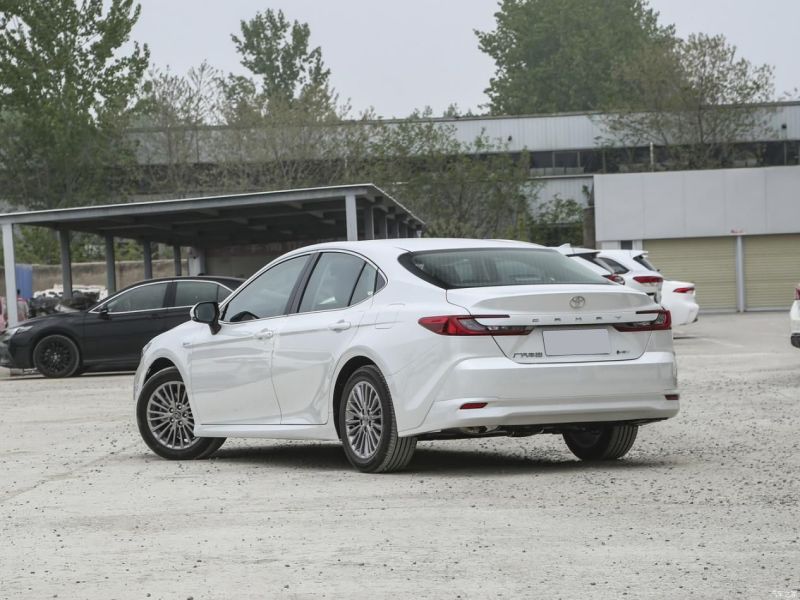

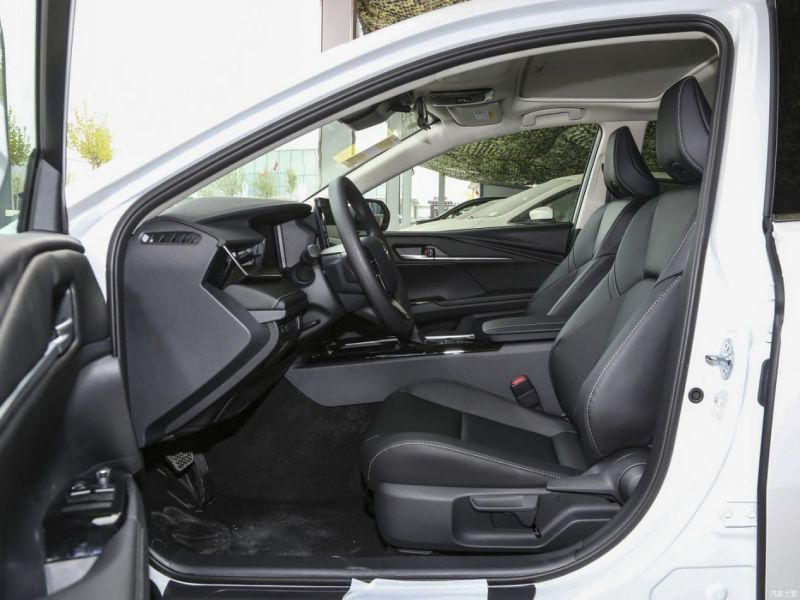

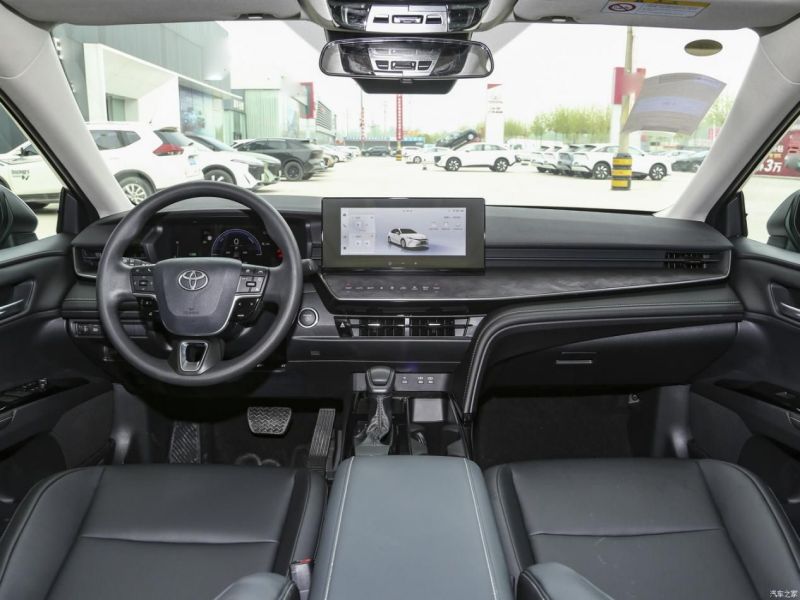

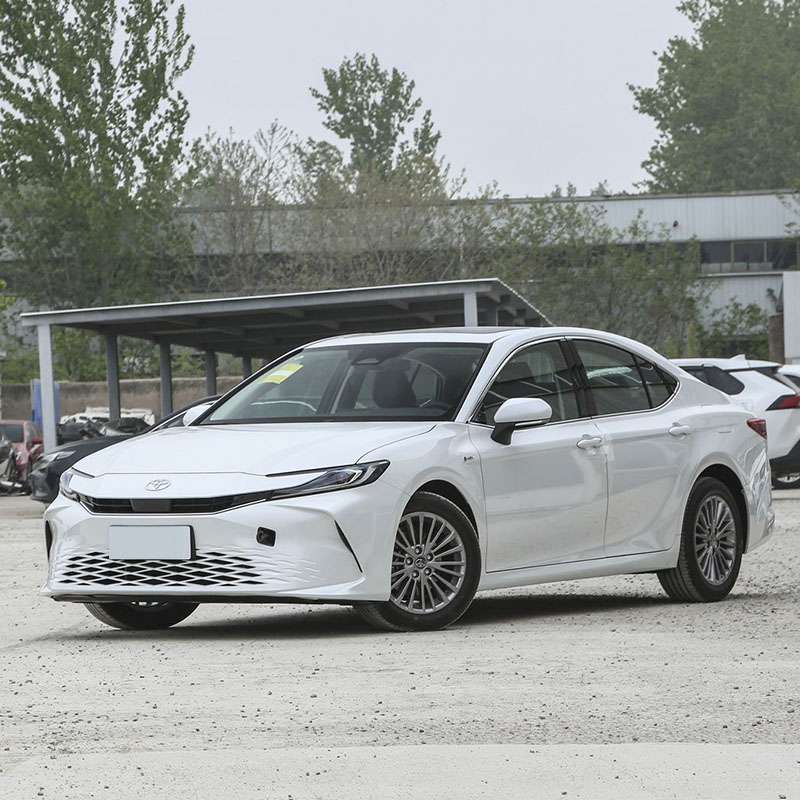

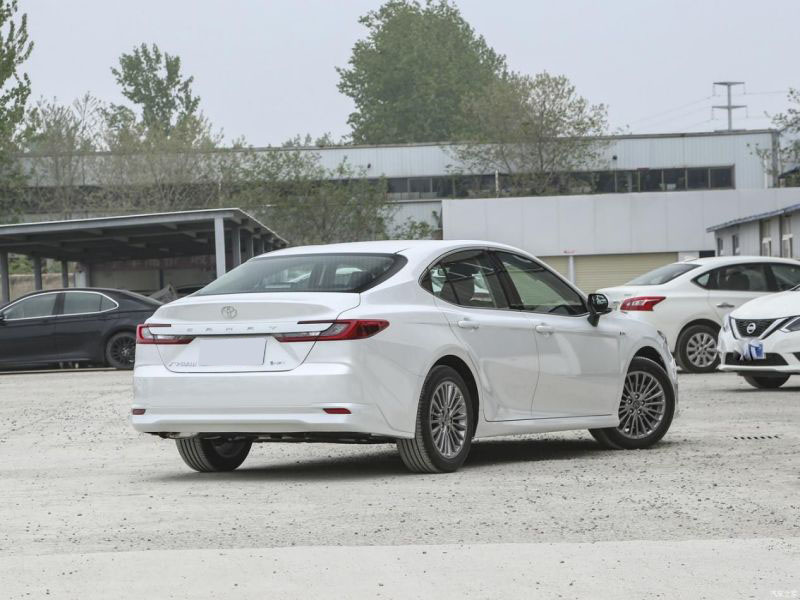

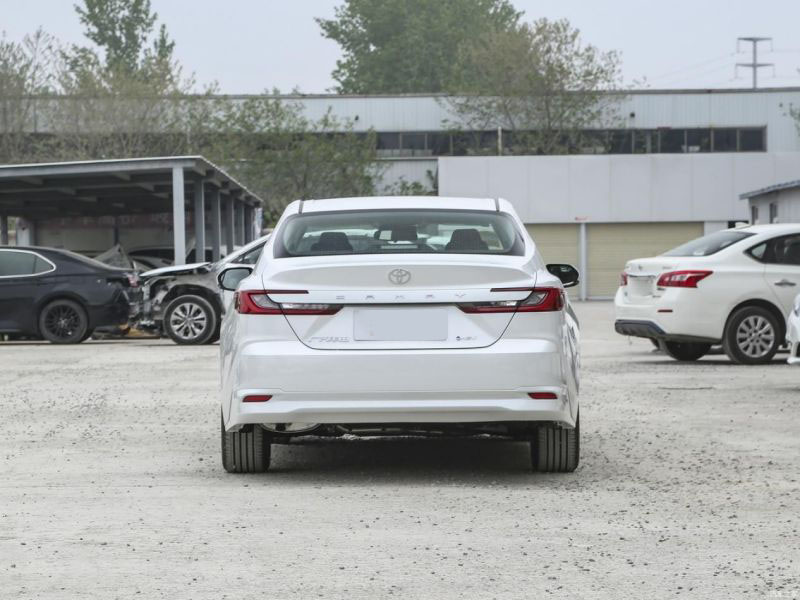

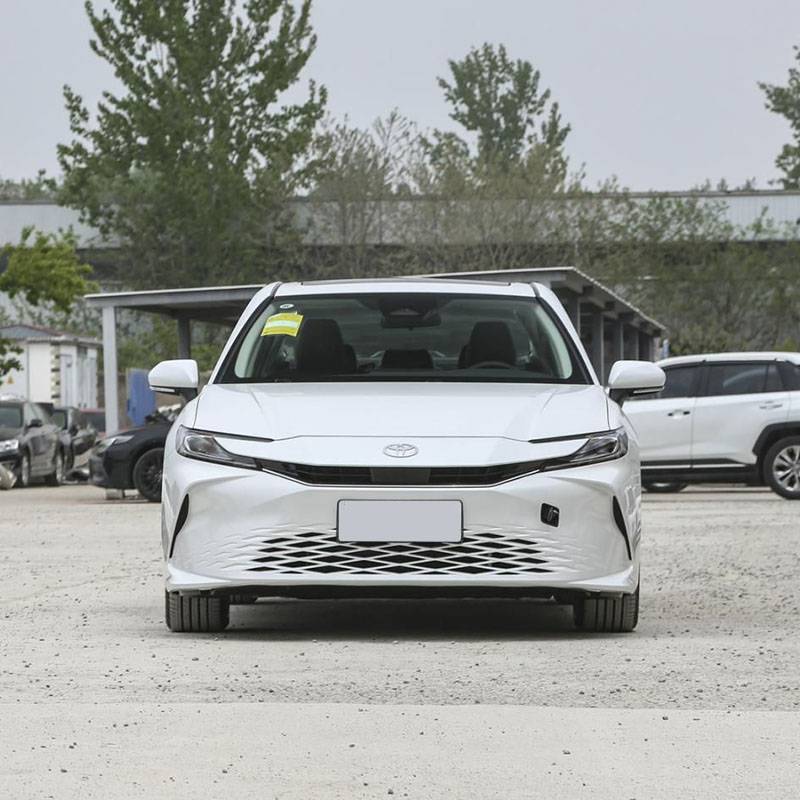

Toyota Camry Gasoline Sedan’s detailed pictures as follows:
