KEYTON Electric Mini Van EV50

KEYTON Electric Van EV50 is a smart and reliable model, with advanced ternary lithium battery and low noise motor. It could be modified as cargo van, police van, post van and so on. Its low energy consumption will save as much as 85% energy compared with a gasoline vehicle.

Send Inquiry

Product Description

1.Introduction of Electric Mini Van EV50

KEYTON EV50, Pure Electric 2 Seats Minivan Cargo Van, is a smart and reliable model, with advanced ternary lithium battery and low noise motor. It could be modified as cargo van, police van, post van and so on. Its low energy consumption will save as much as 85% energy compared with a gasoline vehicle.

2.Basic parameters of the whole vehicle

Project					Electric Mini Van
Main configuration					CATLbattery
Number of seats (including driver)					2
Dimension	Size	LWHmm			449016101900
	Cargo space	LWHmm			262214571340
	Wheelbase(mm)				3050
	Tread	Front(mm)			1386
		Rear(mm)			1408
Weight	Curb weight(Kg)				1430
	Total weight(Kg)				2510
	Rated load mass(Kg)				1080
Pass parameter	Minimum ground clearance(mm)				125
	Front suspension (mm)				545
	Rear suspension (mm)				895
	Approach angle(°)				28
	Departure angle(°)				17
	Minimum turning diameter(m)				11.9
Driving range (km)	Working condition method				300
Steering gear	Type				Rack and pinion type (with power assist)
Rear axle	Main reducer				Two stage cylindrical gear speed ratio 8.952
	Differential mechanism				Straight planet bevel gear
Driving system	Front suspension				Spiral spring McPherson type independent suspension
	Rear suspension				Leaf spring non independent suspension
	Tire specification（F/R）				175/70R14C
Braking system	Type				Double circuit X-type hydraulic brake
	Brake				Front disk rear drum
	Parking brake				Mechanical cable type applied to rear wheel brake
Driving motor	Quantity, set / vehicle				1
	Type				Permanent magnet synchronous motor
	Model				TZ180XSIN101
	Phase number (m)				3
	Rated torque(N·m)				90
	2min maximum torque(N·m)				220
	Rated power(kW)				30
	2min maximum power(kW)				60
	Rated speed(r/min)				3183
	Rated efficiency(％)				96.5
Motor controller	Model				IEVD170-34Z50AL
	Rated voltage(V)				336
Electrical system	Auxiliary battery				12V
	Power battery	Battery type			Lithium iron phosphate battery
		Rated voltage(V)			334.88
		Capacity C3(A·h)			125
		Service life			5 years or 200000 km
		Energy density (W.h/kg)			137.6
	Charger (AC / DC)	Input voltage(VAC)			220
		Maximum output current(A)			3.3kw charger ≤ 10,
	Maximum charging time(h)				3.3kw charger ≤ 12
	Lighting, signal				Headlamp, front and rear turn light, front and rear position light, brake light, rear fog light, reversing light, license plate light, combination instrument, interior light, indicator light, horn, hazard warning light, etc
Air conditioning	Air conditioning	Electric compressor Rated power(W)			950
		Refrigerating capacity(W)			1850
		Cryogen			R134a
	Heater	Rated fan power(W)			175
		Calorific value(W)		2000
Chassis and brake system
Front McPherson independent suspension			S
Rear leaf spring independent suspension			S
Front disc and rear drum hydraulic brake			S
ABS+EBD			S
EPS			S
vacuum booster			S
Electrical equipment
Radio player			S
USB			O
Reverse warning tone			-
parking sensor			S
Reversing image			O
Driver's airbag			-
Passenger airbag			-
3.3kwCharge			S
6.6kwCharge			O
Low speed tone assembly			S
Charging socket and harness assembly (slow charging)			S
Charging socket and harness assembly (fast charging)			S
Body accessories
Driver's power window			S
Front passenger power window			O
Manual co driver's window			S
Central locking			S
Remote key			O
Partition of passenger and freight area			S
Interior and exterior decoration
Left and right sun visors			S
Hub trim cover			S
Air conditioning system
Electric heating system			S
Electric air conditioning system			S
On board tools
Fire Extinguisher			S
On board tool assembly			S
Warning triangle			S
Jack assembly			S
Reflective Vest			-
Full size spare tire			S
Remarks:"s" standard configuration, "O" optional configuration, "-" not assembled Note: This information is only for reference, Newlongma has final explanation right.

3.Details of Electric Minivan

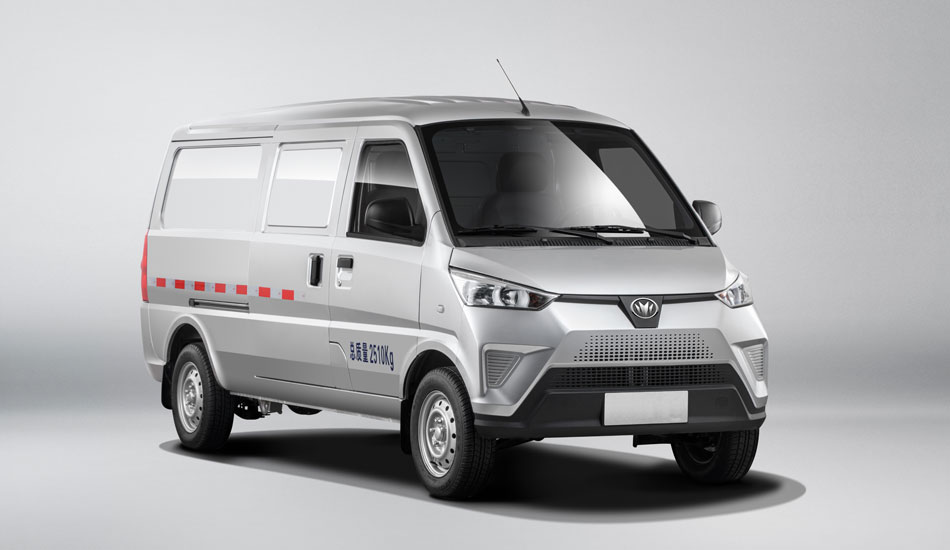

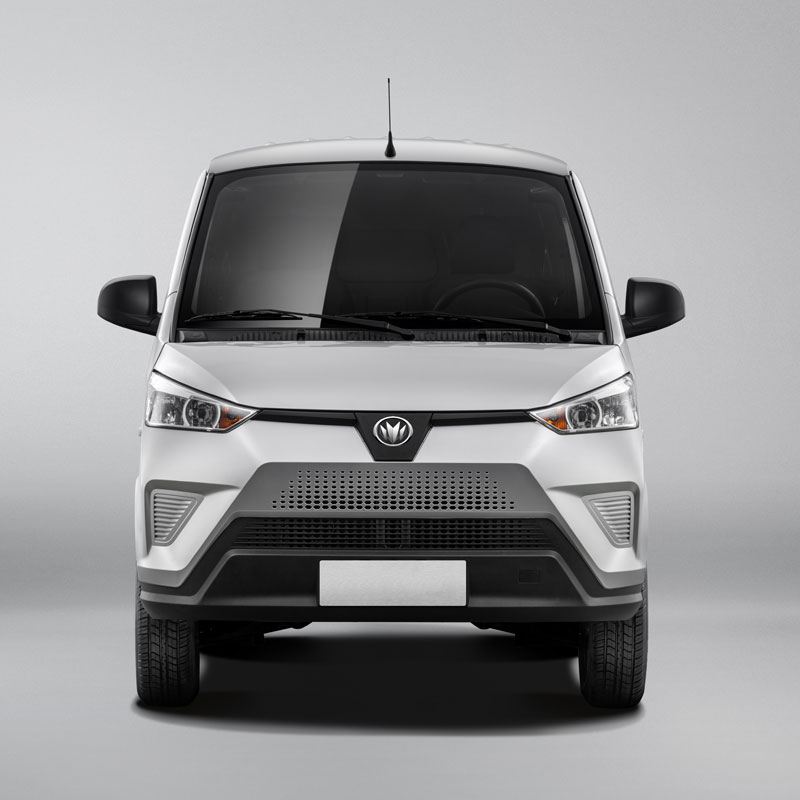

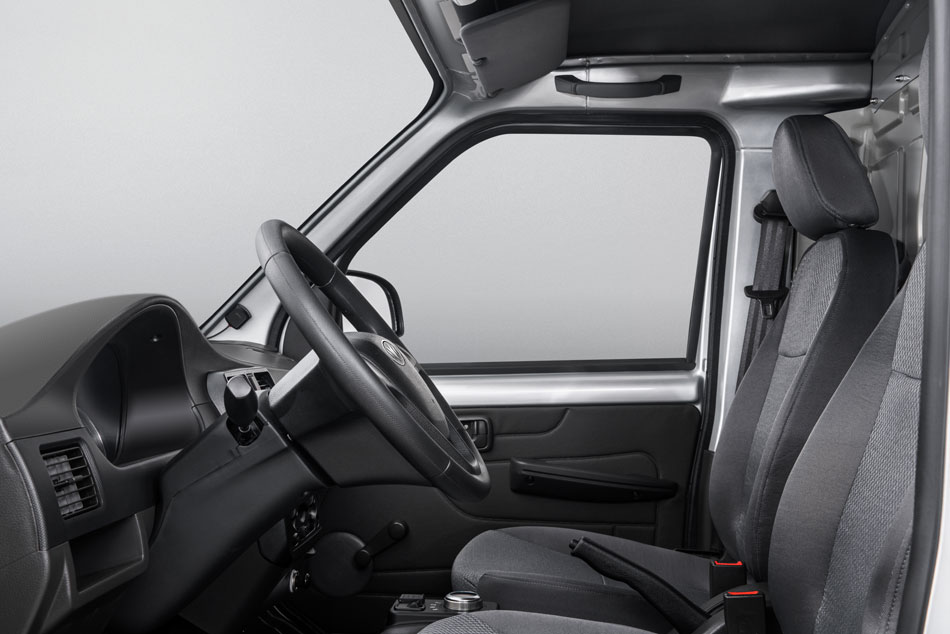

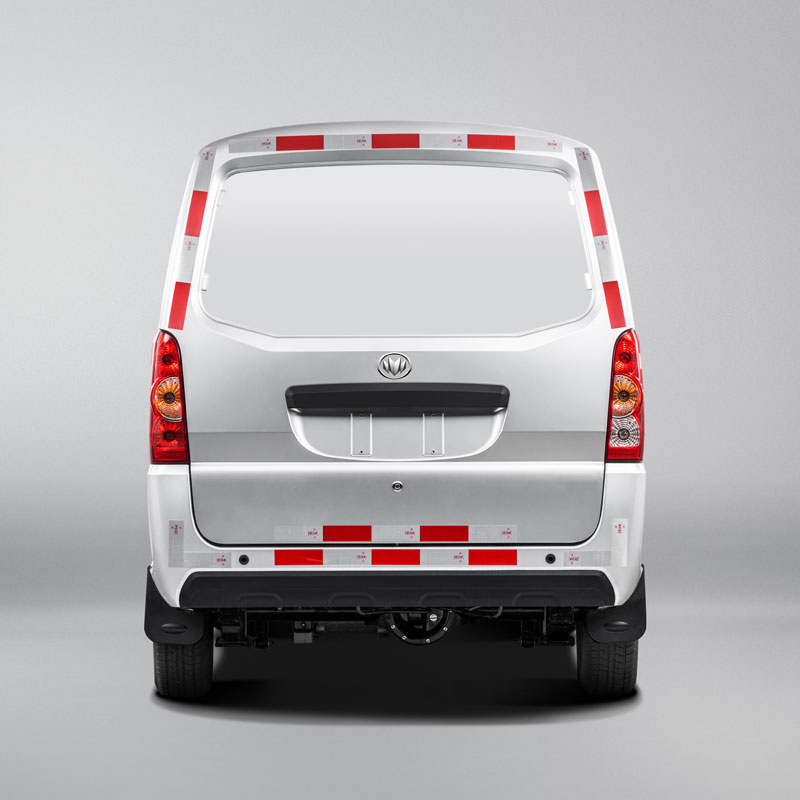

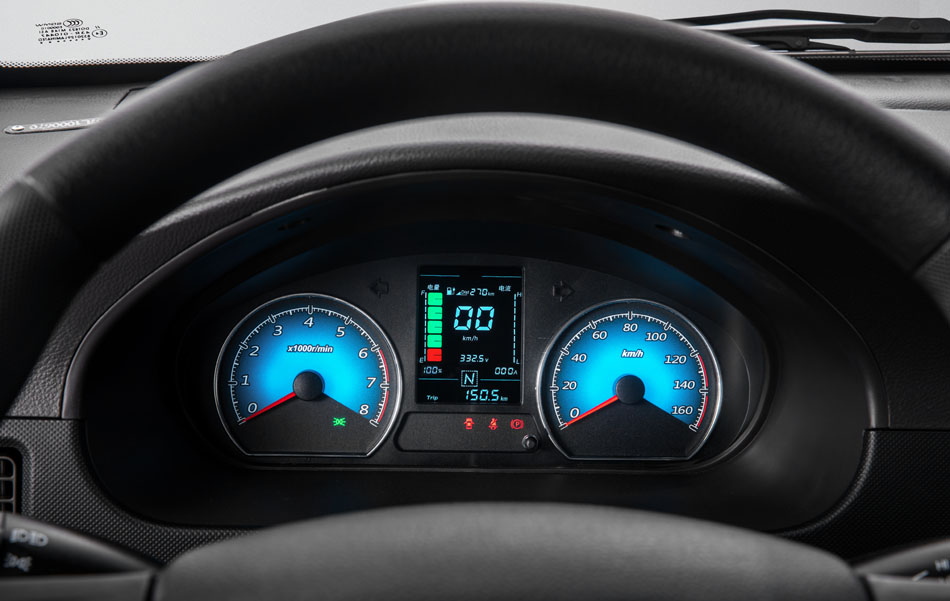

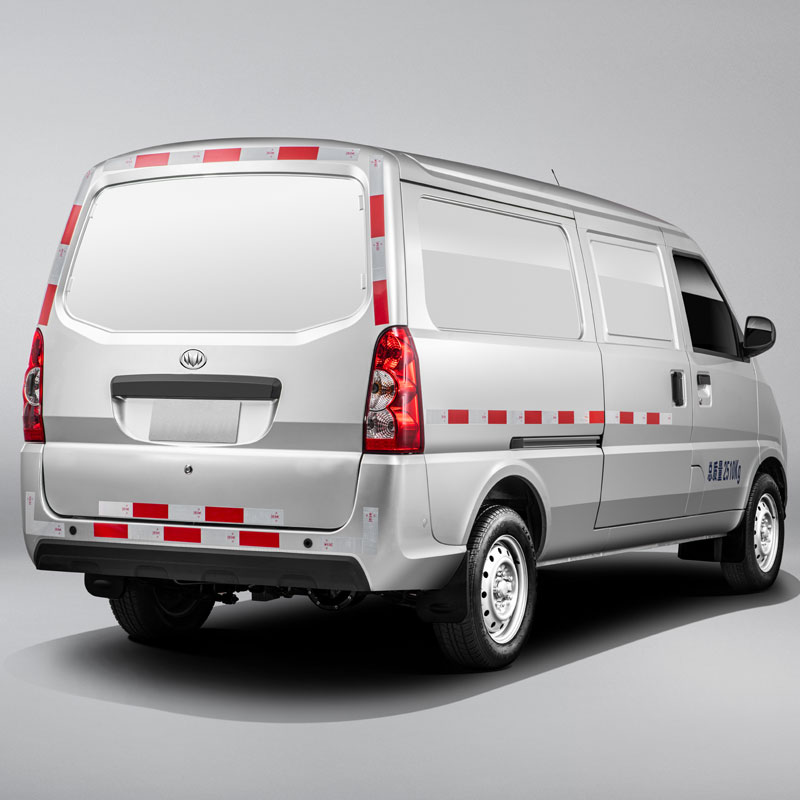

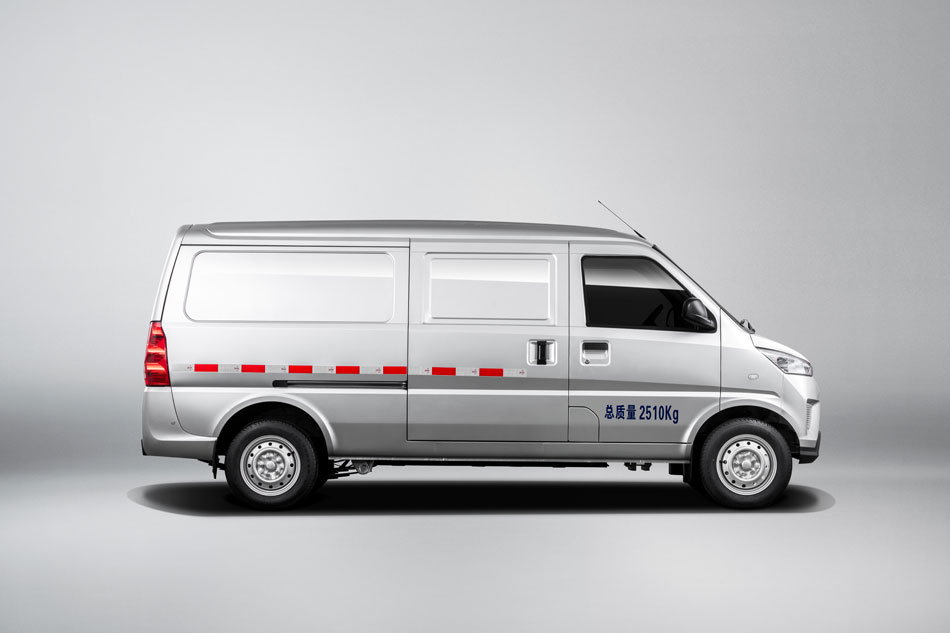

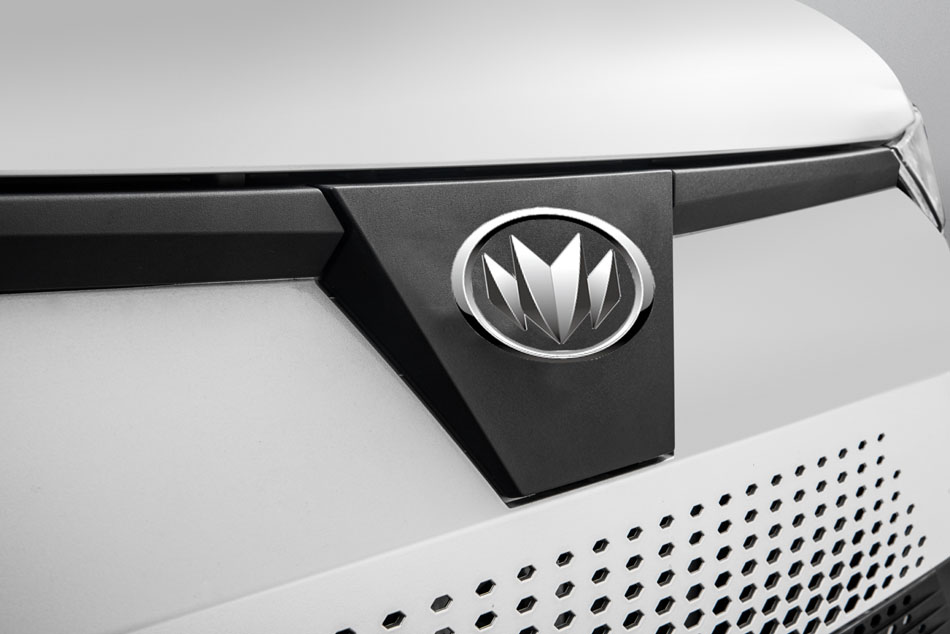

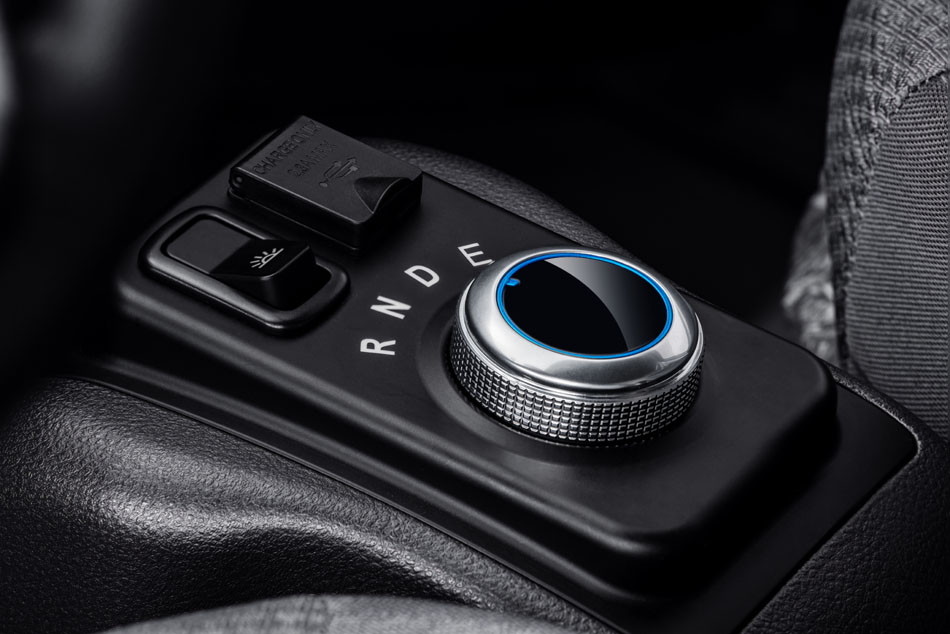

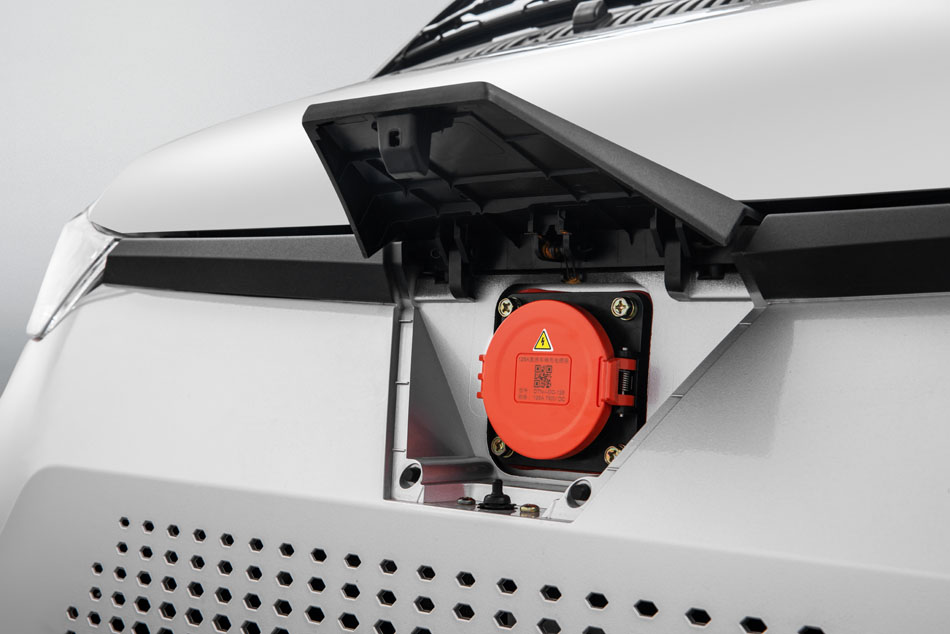

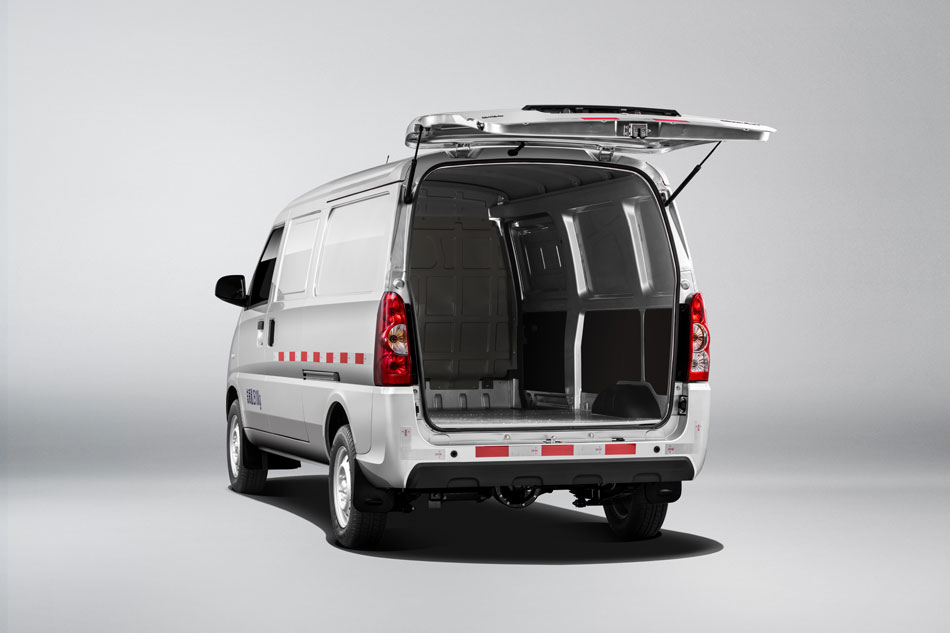

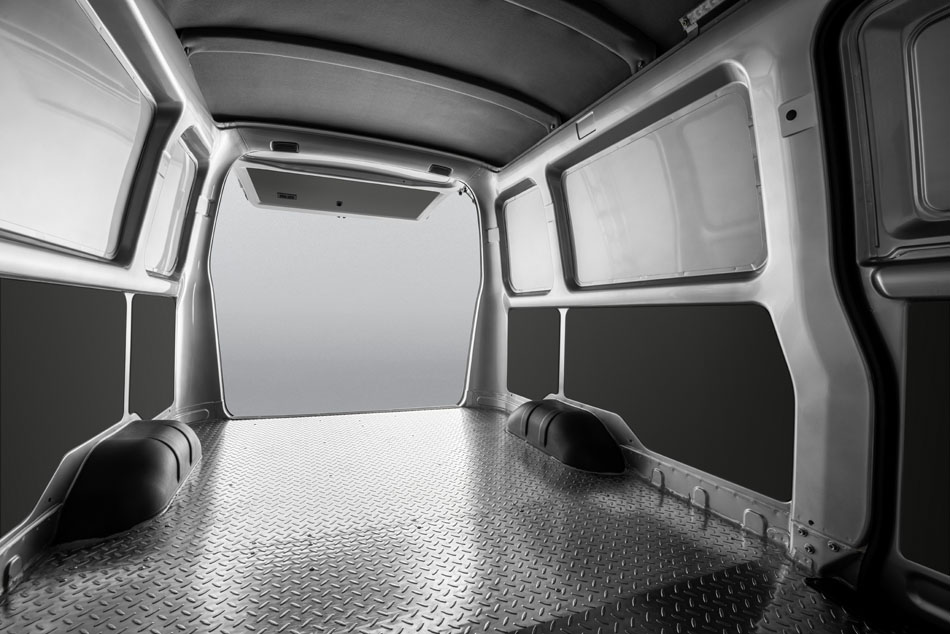

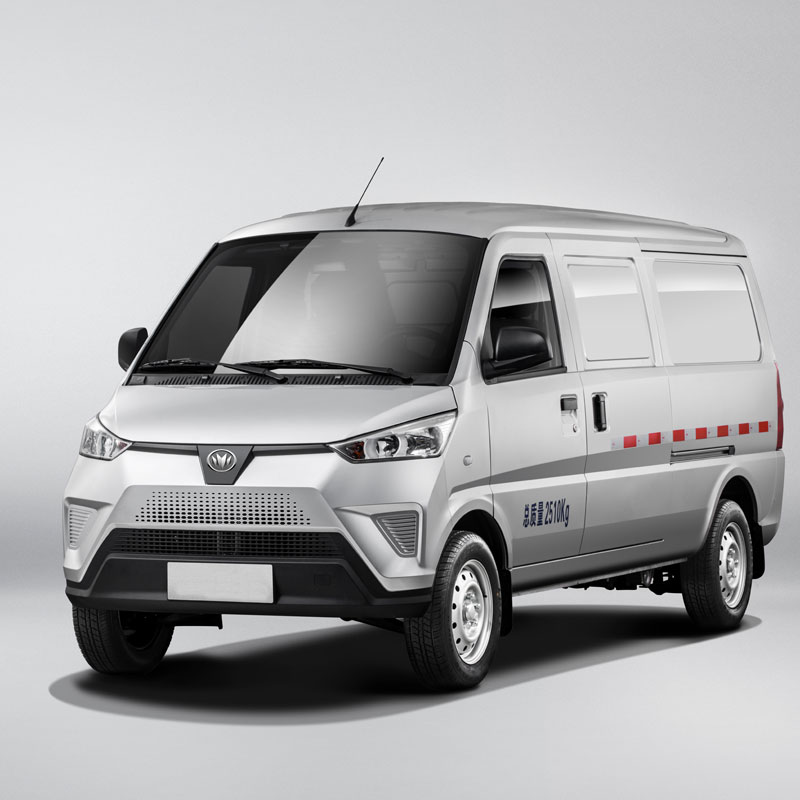

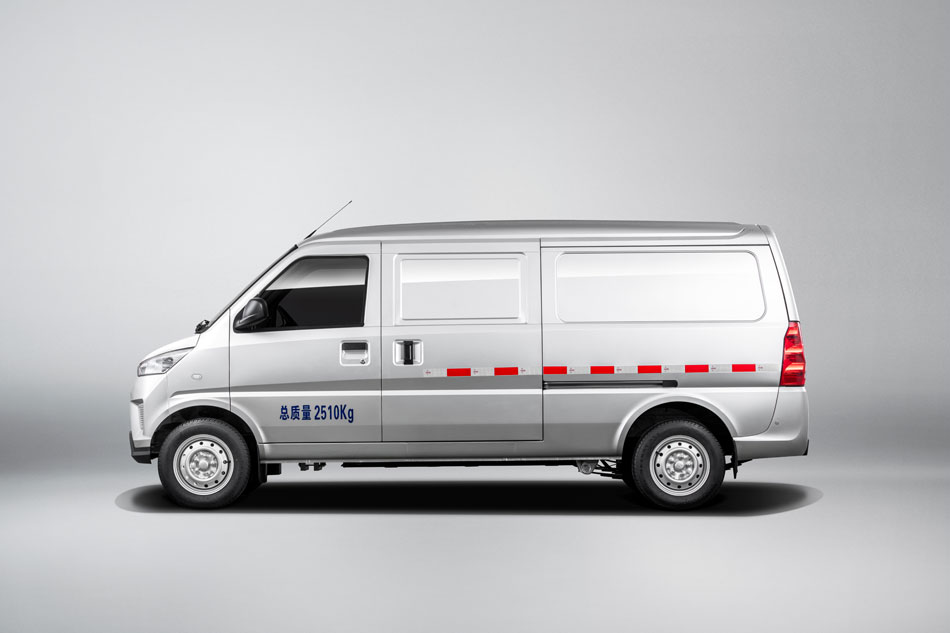

KEYTON EV50 Electric Minivan’s detailed pictures as follows:

4.Product Qualification

KEYTON EV50 Electric Minivan passes the following quality management certifications:

11 Seats Minivan

5.FAQ

1.What is the selling point of your company?

Our FJ Group is the JV partner with Mercedes-Benz, producing V Class in China. That’s why all our products standard is even higher than other Chinese brands.

2.How many countries have you ever exported to?

We have exported to Bolivia, Myanmar, Philippines, Egypt, Nigeria, about 20 countries.

3.What is your biggest overseas market?

We have sold more than 5,000 units to Bolivia since 2014, and the altitude of that country is about 3,000 meters. Which means the vehicles is running well in the tough area.

4.What about the WARRANTY?

We are offering 2 years or 60,000 kms, whichever comes first.

5.What about the delivery time?

45 days since down payment.
