1.Introduction of Highlander Intelligent Electric Hybrid Dual Engine SUV
The Highlander measures 4965mm in length, 1930mm in width, 1750mm in height, and has a wheelbase of 2850mm. Larger than its predecessor, these dimensions translate to a significantly increased interior space, creating a more spacious and comfortable cabin environment.
2. Parameter (Specification) of Highlander Intelligent Electric Hybrid Dual Engine SUV
Highlander Intelligent Electric Hybrid Dual Engine Configuration |
|
Basic Parameters |
|
Length*Width* Height |
4965*1930*1750 |
Wheelbase |
2850 |
Front and rear track width |
1655/1660 |
Minimum turning radius |
5.7 |
Curb Weight |
2035 |
NEDC comprehensive fuel consumption under operating conditions |
5.8 |
Fuel tank capacity |
65 |
Passenger capacity |
7 |
Power System |
|
Engine type |
Inline four cylinder/16 valve - DOHC overhead double camshaft/VVT-iE intelligent electric variable valve timing intake system/VVT-i intelligent variable valve timing electronic control system |
Fuel supply method |
EFI electronic control fuel injection system D-4S cylinder direct injection+intake manifold injection dual injection fuel supply system |
Emission standard |
Chinese VI |
Displacement |
2487 |
Compression ratio |
14 |
Max. power |
141/6000 |
Max. torque |
238/4200-4600 |
Max. Speed |
180 |
Transmission type |
E-CVT |
Intelligent electric hybrid dual engine power system |
|
Motor type |
Permanent Magnet Synchronous |
Peak power of electric motor |
134 front/40 rear |
Peak torque of electric motor |
270 front/121 rear |
Maximum output power of the system |
183 |
Battery type |
Metal hydride nickel battery |
Number of battery modules |
40 |
Battery capacity |
6 |
Suspension, braking, and driving mode |
|
Front/rear suspension system |
Front: MacPherson independent suspension Rear: Double wishbone independent suspension |
Power steering system |
EPS |
Front/rear brake system |
Ventilated disc brake |
Four wheel drive system |
|
E-FOUR |
● |
Appearance |
|
Shark fin antenna |
● |
Aluminum alloy wheels |
18 inch |
Tyre size |
235/55R20 |
Foldable exterior rearview mirror (with turn signal and heating function) |
● |
Electrically adjustable exterior rearview mirror |
● |
Intermittent wiper (adjustable duration) |
● |
Side window chrome trim |
● |
Lights |
|
LED front headlights |
● |
Light sensitive intelligent front headlight system |
● |
LED daytime running lights |
● |
LED front fog lights |
● |
LED combination taillights |
● |
Interior |
|
Multifunctional steering wheel (with up and down, front and rear 4-way adjustment) |
● |
Luxury technology center console |
● |
Front and rear reading lights |
● |
Second row central armrest and cup holder |
● |
Luxury carpets |
● |
Seats |
|
Advanced fabric seats |
● |
Driver's seat 6-way manual adjustment, passenger seat 4-way manual adjustment |
● |
Second row seats (adjustable for tilting, flattening, sliding, with 4/6 compartments) |
● |
Third row seats (adjustable for tilting, flattening, with 4/6 compartments) |
● |
Safety |
|
Driver's seat two-stage front SRS airbag |
● |
Passenger's seat front SRS airbag |
● |
Driver's knee SRS airbag |
● |
Front side SRS airbag |
● |
Side curtain-type SRS airbag |
● |
ISOFX child seat fixing device |
● |
Child protection door lock |
● |
Tire pressure monitoring system (with numerical display) |
● |
Anti lock braking system (with EBD electronic brake force distribution system) |
● |
Anti-theft monitoring alarm |
● |
Immobilizer |
● |
Emergency rescue, road rescue (with SRS airbag linkage) |
● |
Toyoda Pure Children's Seat |
OA |
3.Details of Highlander Intelligent Electric Hybrid Dual Engine SUV

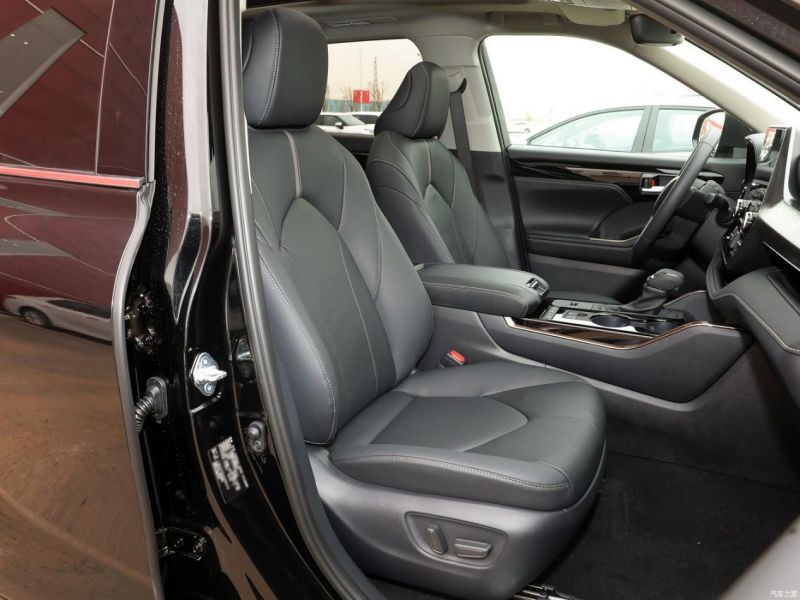

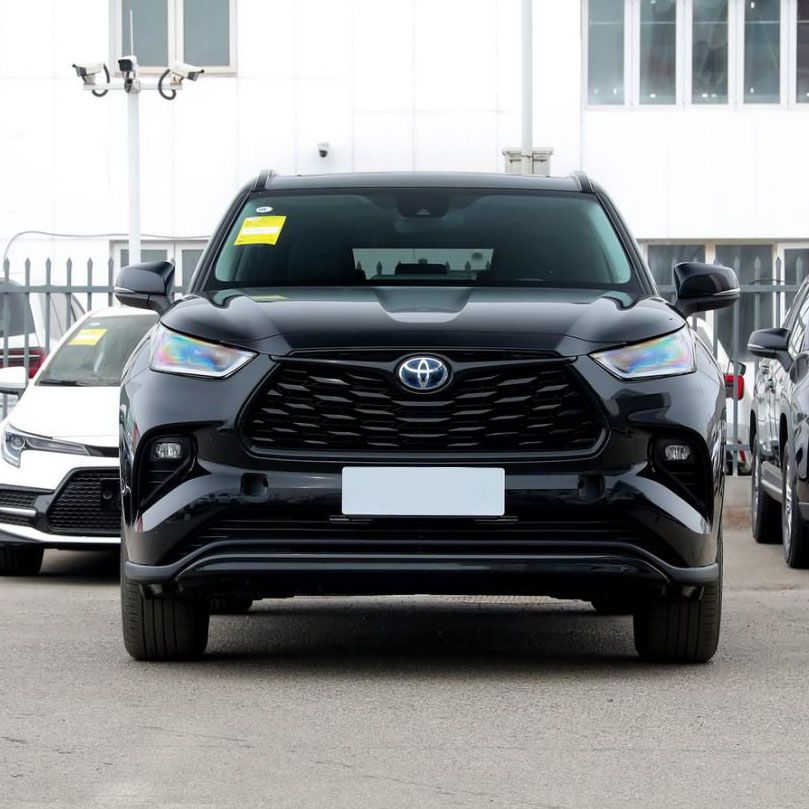

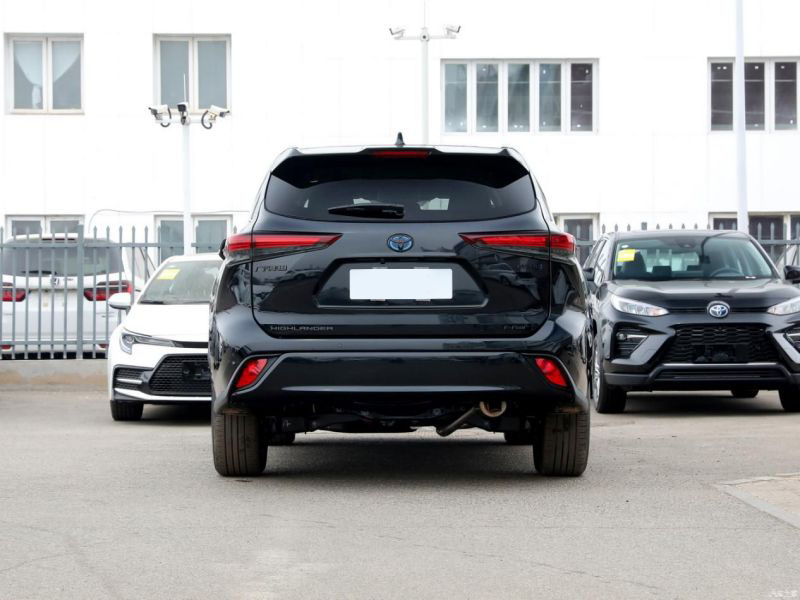

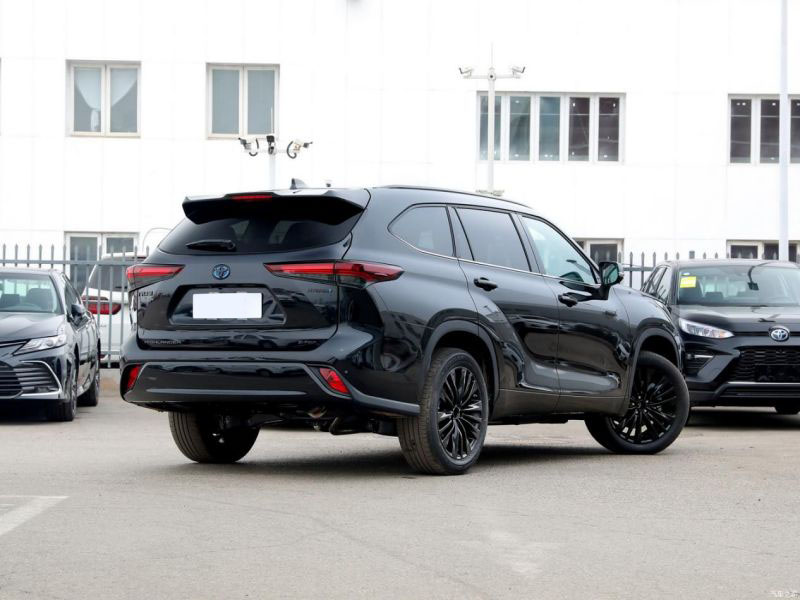

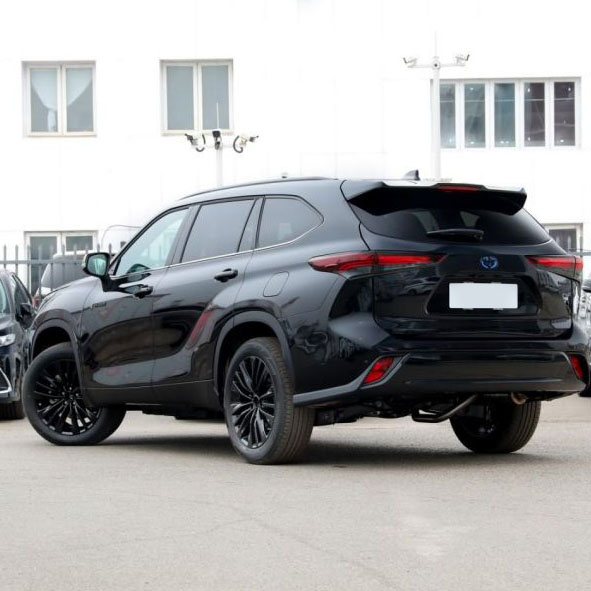

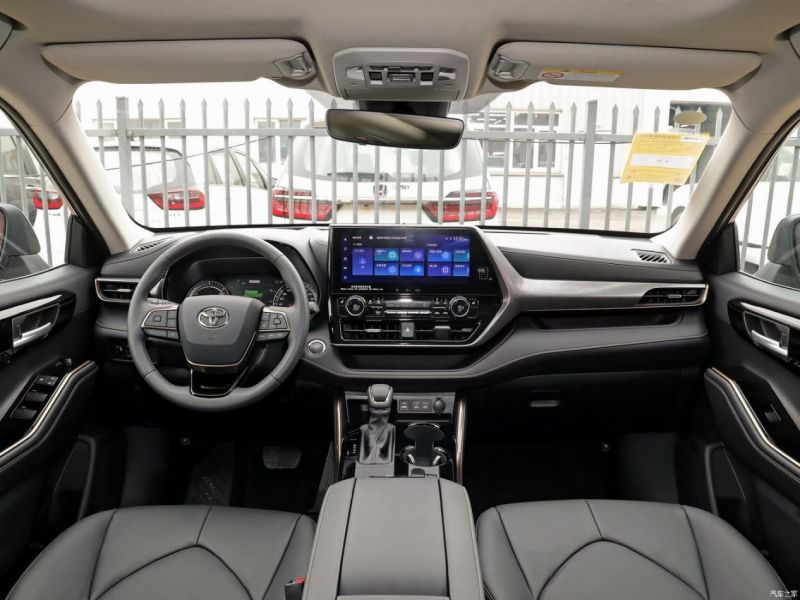

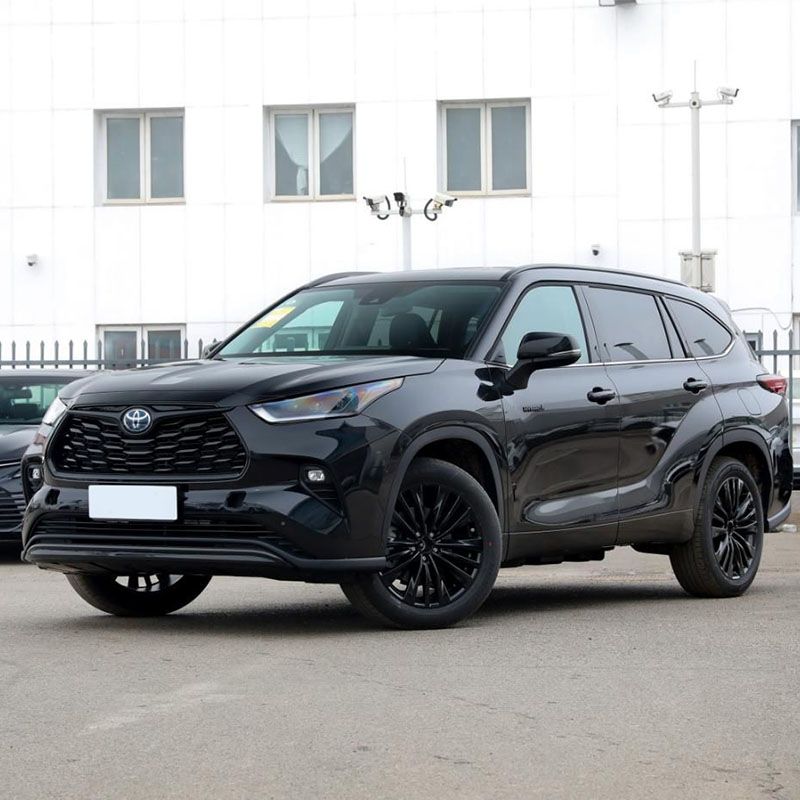

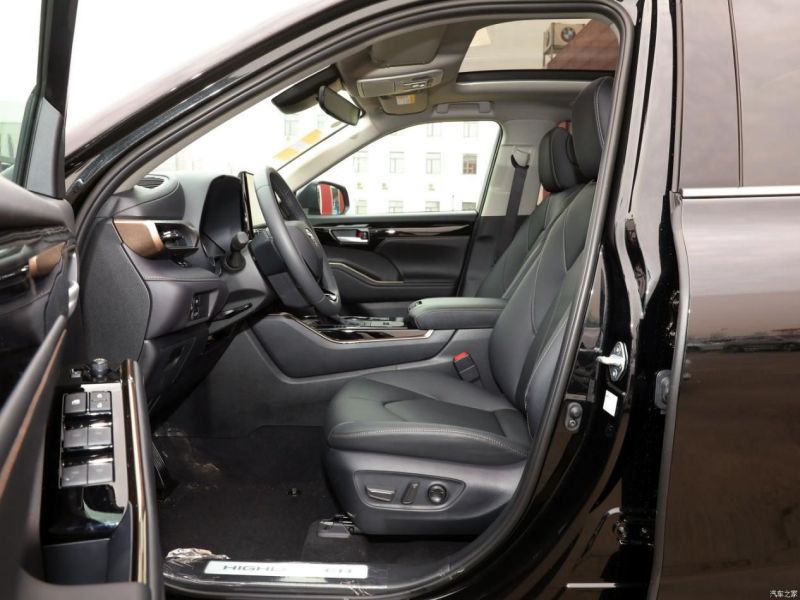

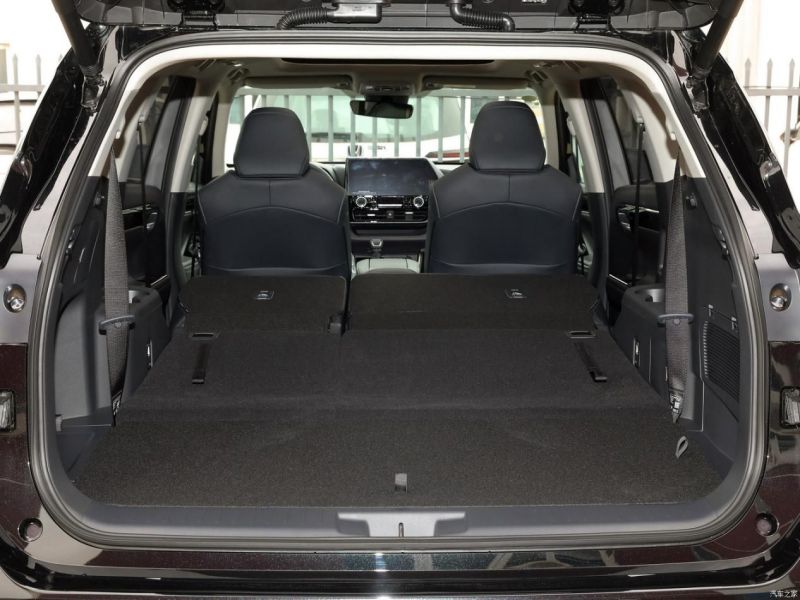

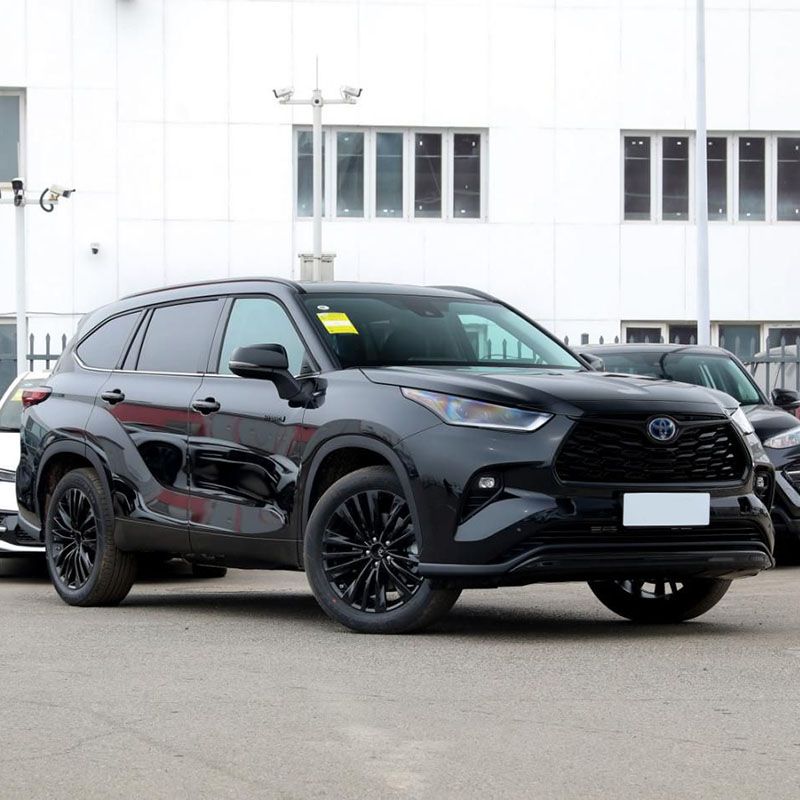

Highlander Intelligent Electric Hybrid Dual Engine SUV ’s detailed pictures as follows:
