1. Introduction of Dongfeng NAMMI06
Dongfeng Nammi06 is positioned as a small pure electric vehicle, equipped with a maximum power of 70kW motor and a CLTC range of 401/471km. It is equipped with a 10.25-inch floating central control screen, mobile phone wireless charging, 360° panoramic image and keyless entry. The body adopts a five-door four-seat design, with a length, width and height of 4306/1868/1645mm and a wheelbase of 2660mm, focusing on youthful design and urban commuting scenes.
2. Parameter (Specification) of Dongfeng NAMMI06
|
NAMMI06 2025 401 Air |
NAMMI06 2025 401 Pro |
NAMMI06 2025 401 Ultra |
NAMMI06 2025 471 Pro |
NAMMI06 2025 471 Ultra |
Basic parameters |
|
|
|||
CLTC pure electric range (km) |
401 |
401 |
401 |
471 |
471 |
Maximum power (kW) |
135 |
135 |
135 |
135 |
135 |
Maximum torque (N · m) |
290 |
290 |
290 |
290 |
290 |
Body structure |
5-Door 5-Seat SUV |
5-Door 5-Seat SUV |
5-Door 5-Seat SUV |
5-Door 5-Seat SUV |
5-Door 5-Seat SUV |
Electric motor (Ps) |
184 |
184 |
184 |
184 |
184 |
Length * Width * Height (mm) |
4306*1868*1645 |
4306*1868*1645 |
4306*1868*1645 |
4306*1868*1645 |
4306*1868*1645 |
Official 0-100km/h acceleration (s) |
— |
— |
— |
— |
— |
Maximum speed (km/h) |
150 |
150 |
150 |
150 |
150 |
Vehicle warranty |
— |
— |
— |
— |
— |
Curb weight (kg) |
1526 |
1526 |
1526 |
1550 |
1570 |
Maximum fully loaded mass |
1945 |
1945 |
1945 |
1975 |
1975 |
motor |
|
|
|||
Front motor brand |
FACC |
FACC |
FACC |
FACC |
FACC |
Front motor model |
TZ200XS32E |
TZ200XS32E |
TZ200XS32E |
TZ200XS32E |
TZ200XS32E |
Motor type |
Permanent magnet/synchronous |
Permanent magnet/synchronous |
Permanent magnet/synchronous |
Permanent magnet/synchronous |
Permanent magnet/synchronous |
Total power of electric motor (kW) |
135 |
135 |
135 |
135 |
135 |
Total horsepower of electric motor (Ps) |
184 |
184 |
184 |
184 |
184 |
Total torque of electric motor (N-m) |
290 |
290 |
290 |
290 |
290 |
Maximum power of front motor (kW) |
135 |
135 |
135 |
135 |
135 |
Maximum torque of front motor (N-m) |
290 |
290 |
290 |
290 |
290 |
Number of driving motors |
Single motor |
Single motor |
Single motor |
Single motor |
Single motor |
Motor layout |
Front |
Front |
Front |
Front |
Front |
Battery type |
●Lithium iron phosphate battery |
●Lithium iron phosphate battery |
●Lithium iron phosphate battery |
●Lithium iron phosphate battery |
●Lithium iron phosphate battery |
Battery brand |
●Sunwoda |
●Sunwoda |
●Sunwoda |
●Dongyuxinsheng |
●Dongyuxinsheng |
Battery cooling method |
Liquid Cooling |
Liquid Cooling |
Liquid Cooling |
Liquid Cooling |
Liquid Cooling |
Battery energy (kWh) |
44.94 |
44.94 |
44.94 |
51.87 |
51.87 |
Fast charging function |
Support |
Support |
Support |
Support |
Support |
Slow charging interface position |
Right left side of the car |
Right left side of the car |
Right left side of the car |
Right left side of the car |
Right left side of the car |
Location of fast charging interface |
Right left side of the car |
Right left side of the car |
Right left side of the car |
Right left side of the car |
Right left side of the car |
External AC discharge power (kW) |
3.3 |
3.3 |
3.3 |
3.3 |
3.3 |
External DC discharge power (kW) |
6 |
6 |
6 |
6 |
6 |

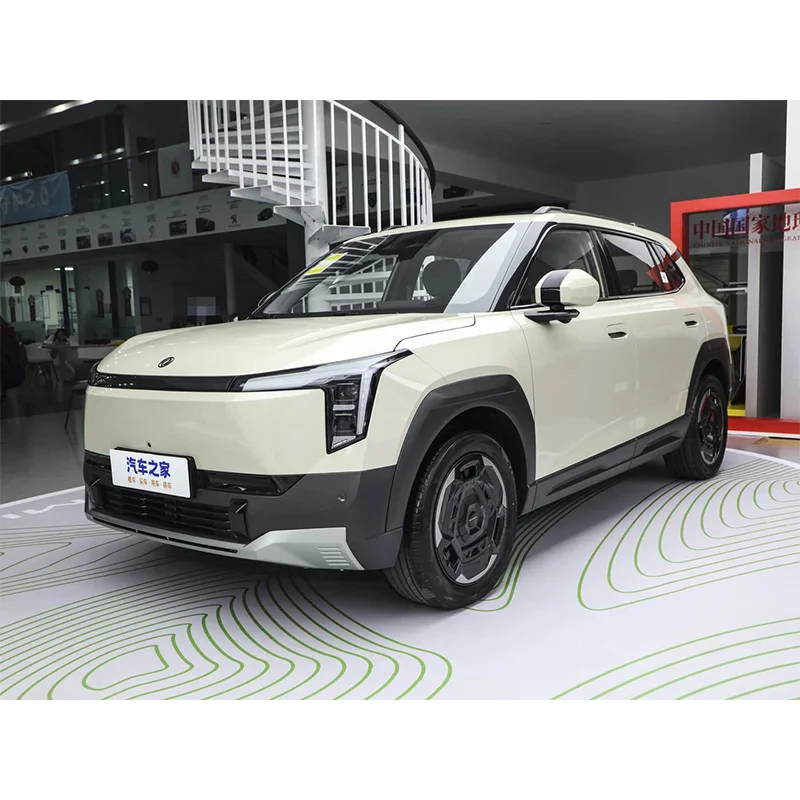

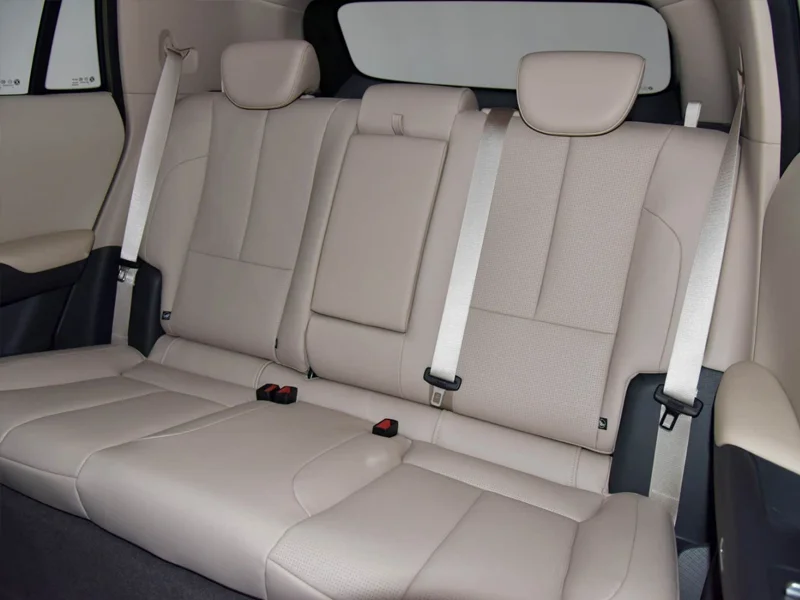

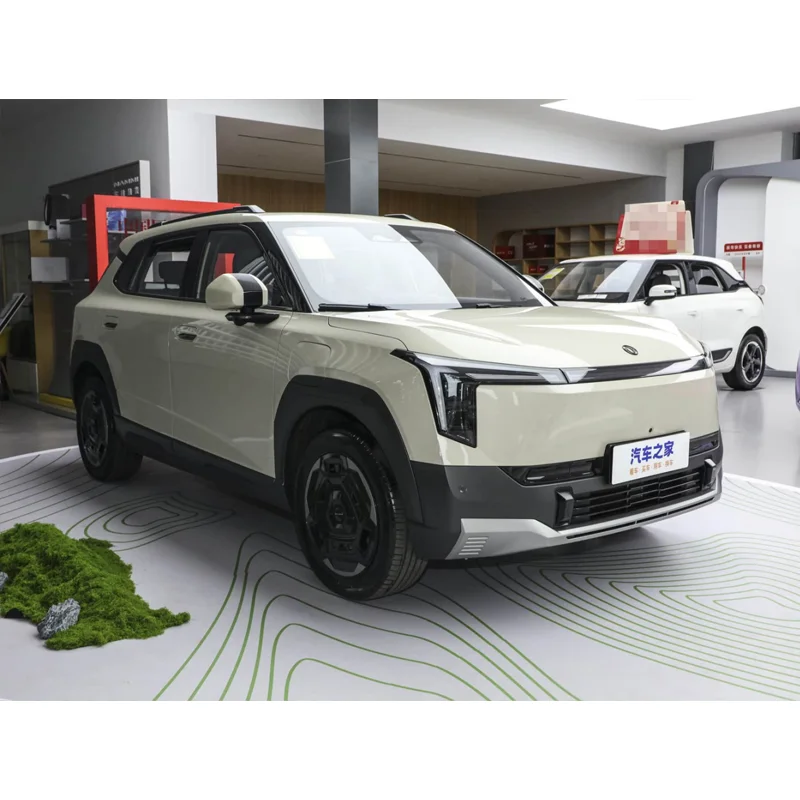

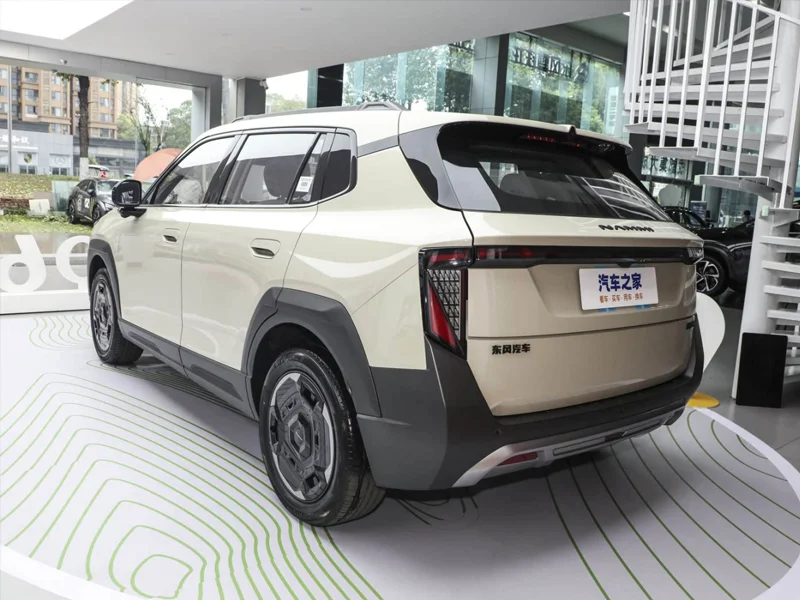

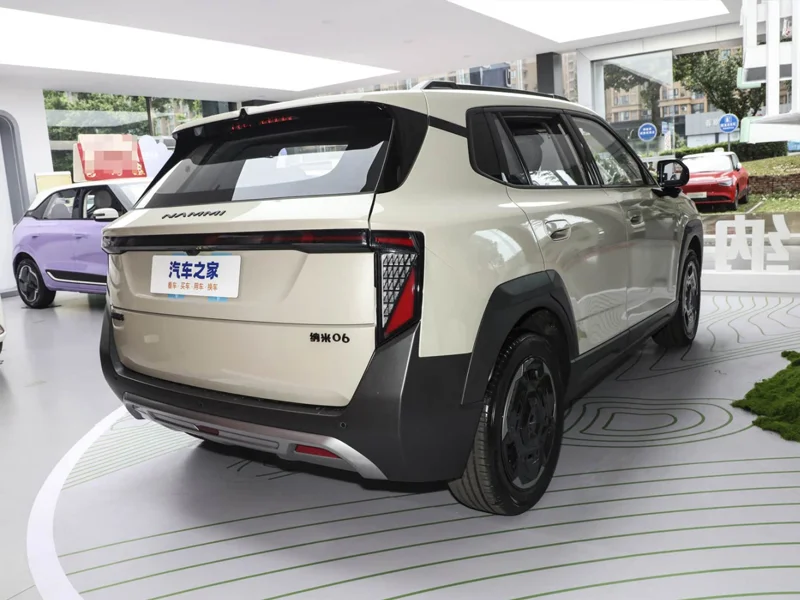

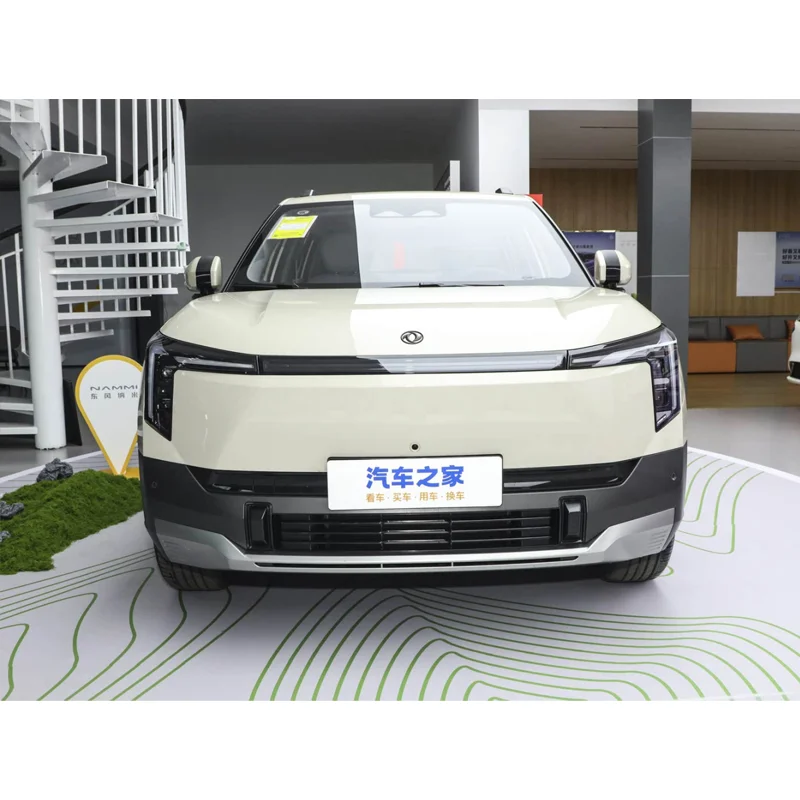

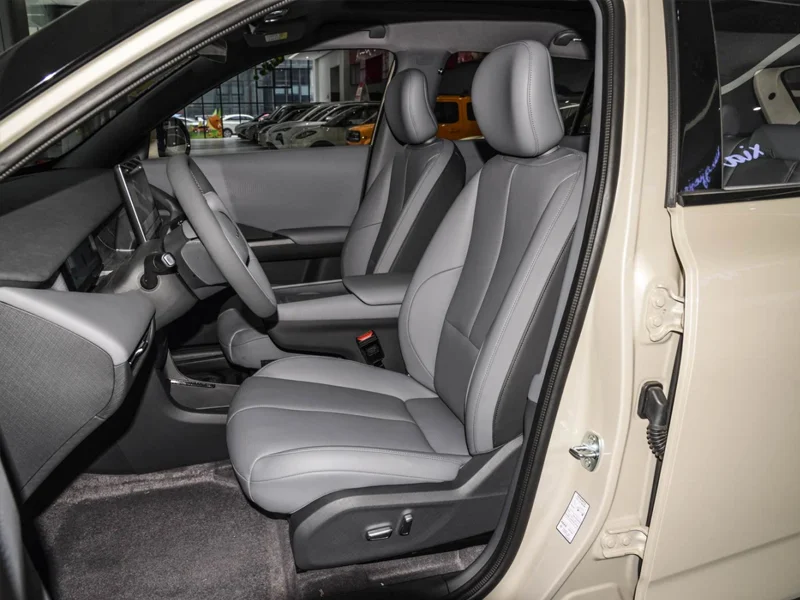

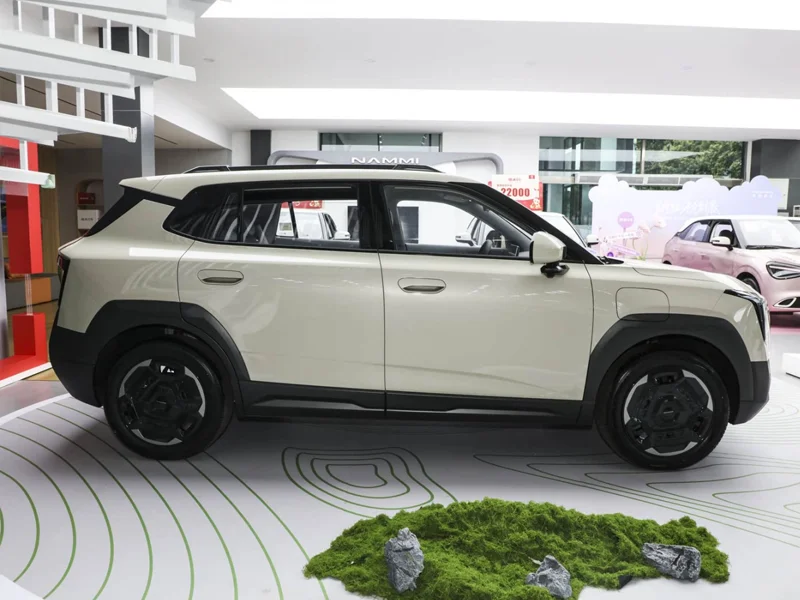

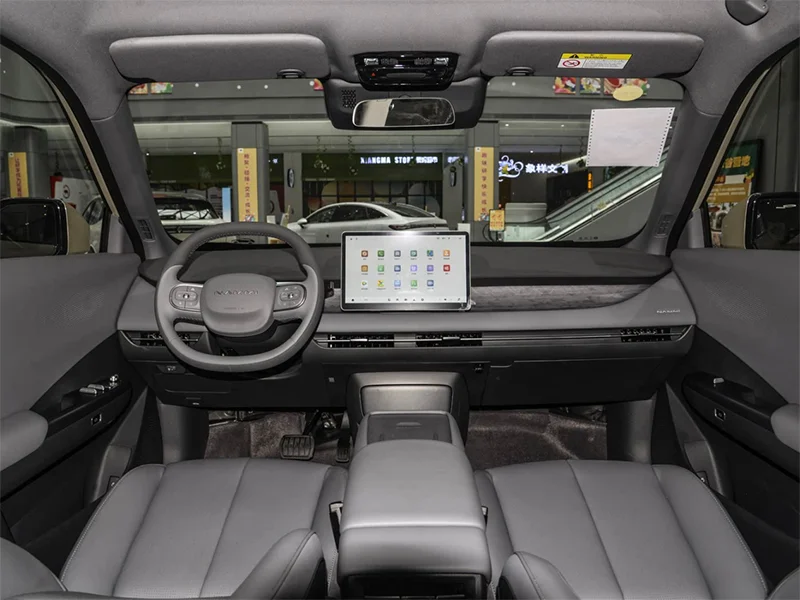

3.Details of Dongfeng NAMMI06 ’s detailed pictures as follows:
