Deepal S09

Deepal S09 is a mid-size SUV launched by Deepal Auto, positioned as a “smart electric SUV” with a focus on technology and practicality. It has smooth body lines, is equipped with Qualcomm Snapdragon 8155 chip, and supports intelligent voice, OTA upgrade and other functions. It takes into account both performance and endurance. The space layout is flexible and suitable for family users.

Send Inquiry

Product Description

1. Introduction of Deepal S09

Deepal S09 is a large six-seater smart flagship SUV for families launched by Deepal Auto. It has a body size of 5205×1996×1800mm and a wheelbase of 3105mm, with spacious space. Equipped with Huawei Qiankun Intelligent Driving ADS 3.3 and Hongmeng Cockpit HarmonySpace 5, it provides an excellent smart experience. It uses Deepal Super Range Extender 2.0 technology for low fuel consumption and long battery life. It also has high safety standards and rich comfort configurations with high cost performance.

2. Parameter (Specification) of Deepal S09

	Deepal S09 2025 4WD Ultra	Deepal S09 2025 4WD Ultra High End
Basic parameters
WLTC pure electric range (km)	170	170
CLTC pure electric range (km)	210	210
Maximum power (kW)	362	362
Maximum torque (N · m)	637	637
Body structure	5-Door 6-Seat SUV
Electric motor (Ps)	493	493
Length * Width * Height (mm)	520519961800	520519961800
Official 0-100km/h acceleration (s)	5.9	5.9
Maximum speed (km/h)	205	205
Vehicle warranty	●Five years or 100000 km	●Five years or 100000 km
Curb weight (kg)	2668	2668
Maximum fully loaded mass	3180	3180
Engine
Engine model	JL469ZQ1	JL469ZQ1
Displacement	1497	1497
Intake Form	●Turbocharger	●Turbocharger
Engine Layout	●Transverse	●Transverse
Cylinder Arrangement Form	L	L
Number of Cylinders	4	4
Valvetrain	DOHC	DOHC
Number of Valves per Cylinder	4	4
Maximum Horsepower	150	150
Maximum power (kW)	110	110
Maximum Power Speed	5000	5000
Maximum torque (N · m)	220	220
Maximum Torque Speed	3200-4200	3200-4200
Maximum Net Power	105	105
Energy Source	Extended Range	Extended Range
Fuel Octane Rating	●NO.92	●NO.92
Fuel Supply Method	Direct Injection	Direct Injection
Cylinder Head Material	● Aluminum alloy	● Aluminum alloy
Cylinder Block Material	● Aluminum alloy	● Aluminum alloy
Environmental Standards	●Chinese VI	●Chinese VI
motor
Front motor brand	Deepal	Deepal
Rear motor brand	Deepal	Deepal
Front motor model	AYDM01	AYDM01
Rear motor model	ATDM02	ATDM02
Motor type	Pre-Communication/asynchronous rear permanent magnet/synchronous	Pre-Communication/asynchronous rear permanent magnet/synchronous
Total power of electric motor (kW)	362	362
Total power of electric motor (Ps)	493	493
Total torque of electric motor (N-m)	637	637
Maximum power of front motor (kW)	131	131
Maximum torque of front motor (N-m)	262	262
Maximum power of rear motor (kW)	231	231
Maximum torque of rear motor (N-m)	375	375
Number of driving motors	Dual motor	Dual motor
Motor layout	Front+Rear	Front+Rear
Battery type	●Lithium iron phosphate battery	●Lithium iron phosphate battery
Battery brand	●CATL	●CATL
Battery cooling method	Liquid Cooling	Liquid Cooling
Battery energy (kWh)	40.18	40.18
Fast charging function	Support	Support
Slow charging interface position	Right left side of the car	Right left side of the car
Location of fast charging interface	Right left side of the car	Right left side of the car
External communication discharge power (kW)	6	6

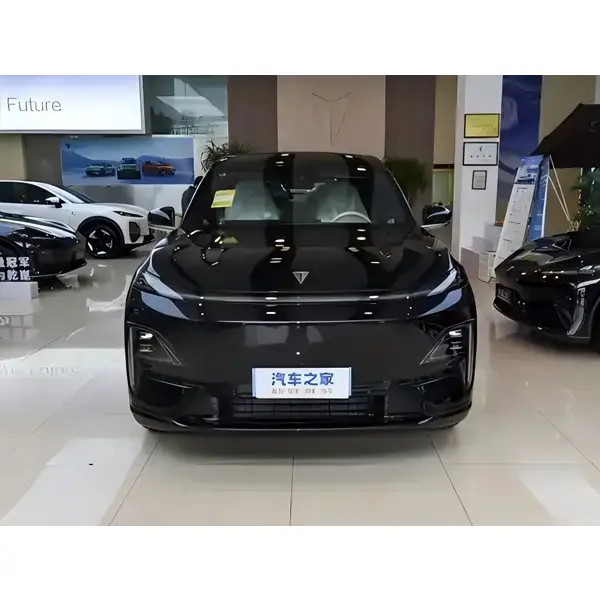

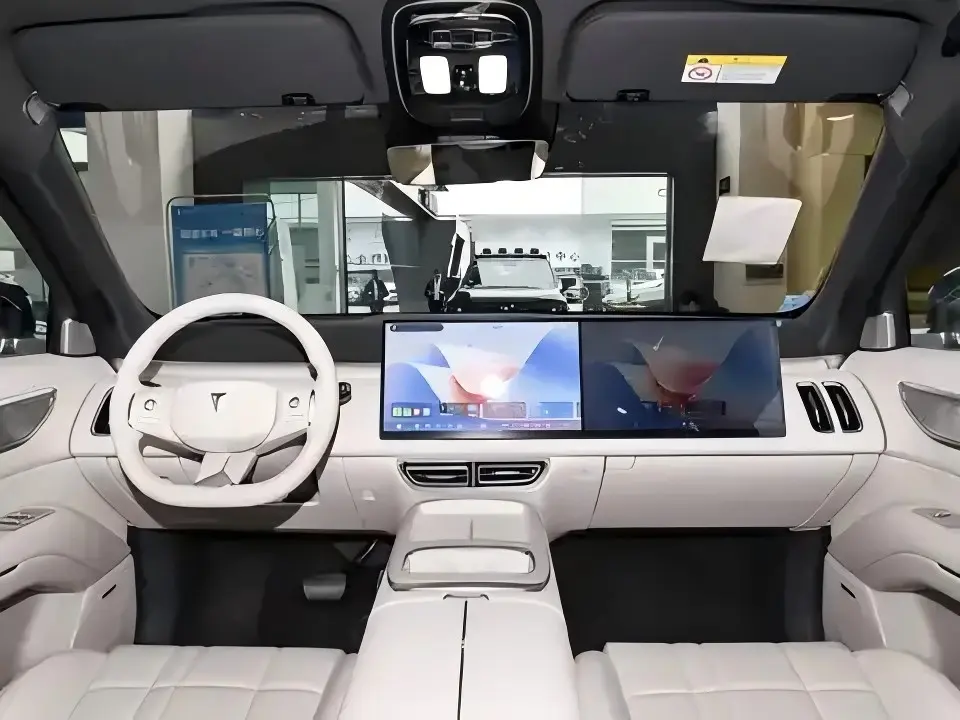

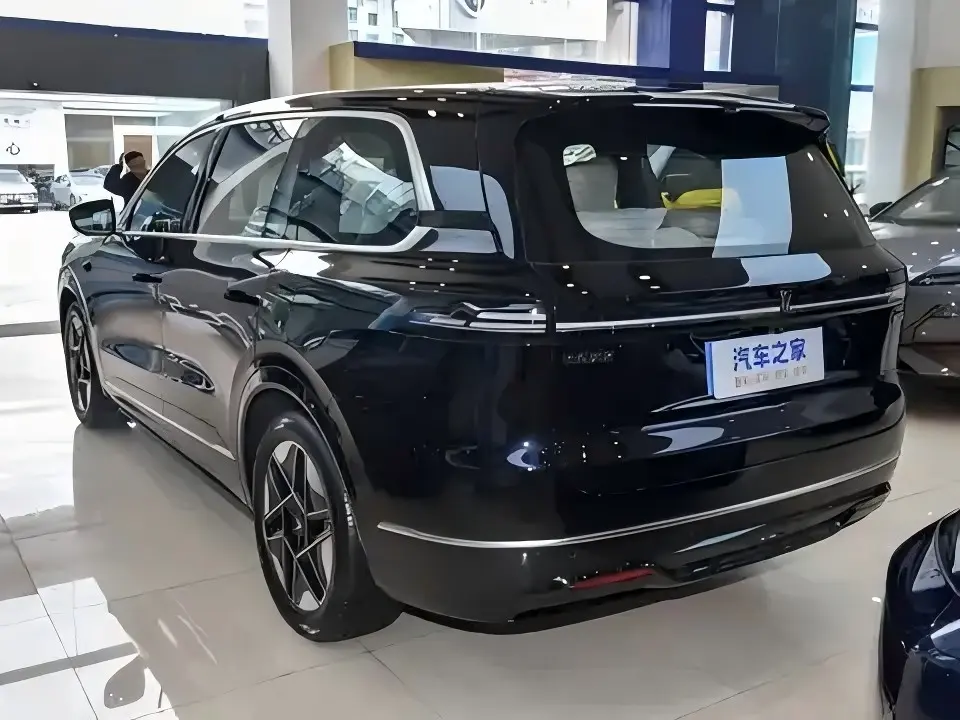

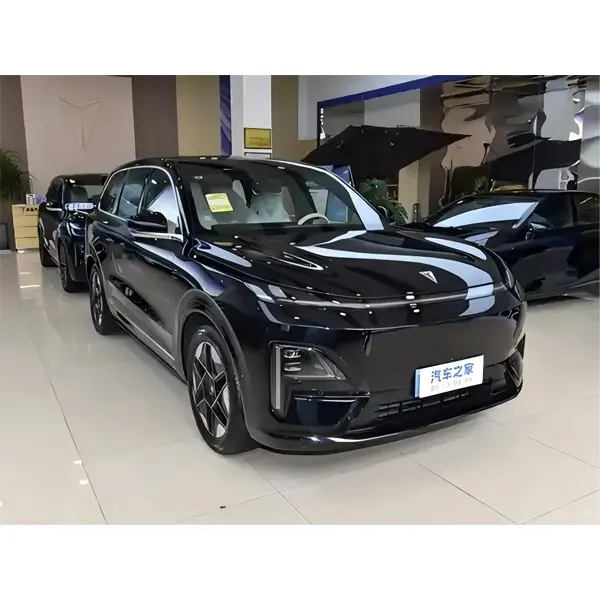

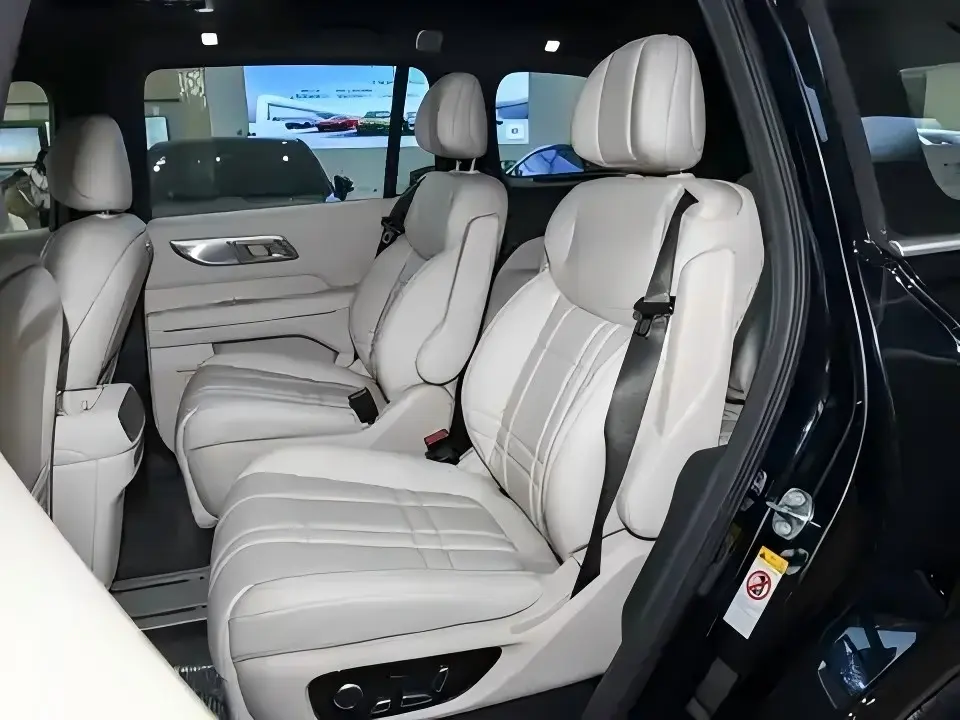

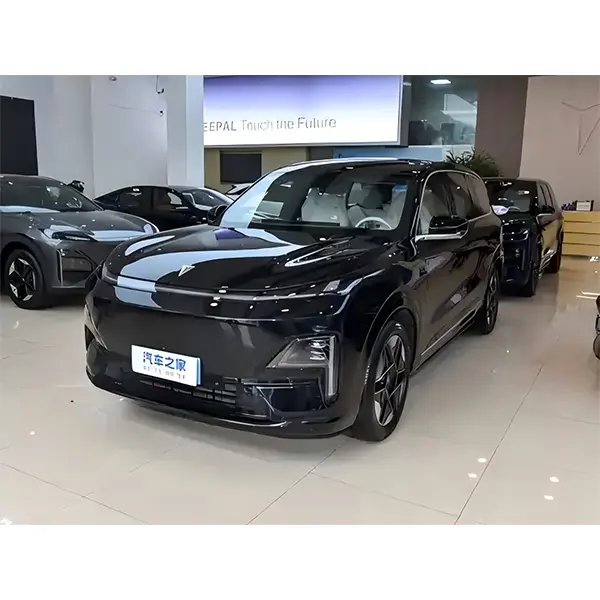

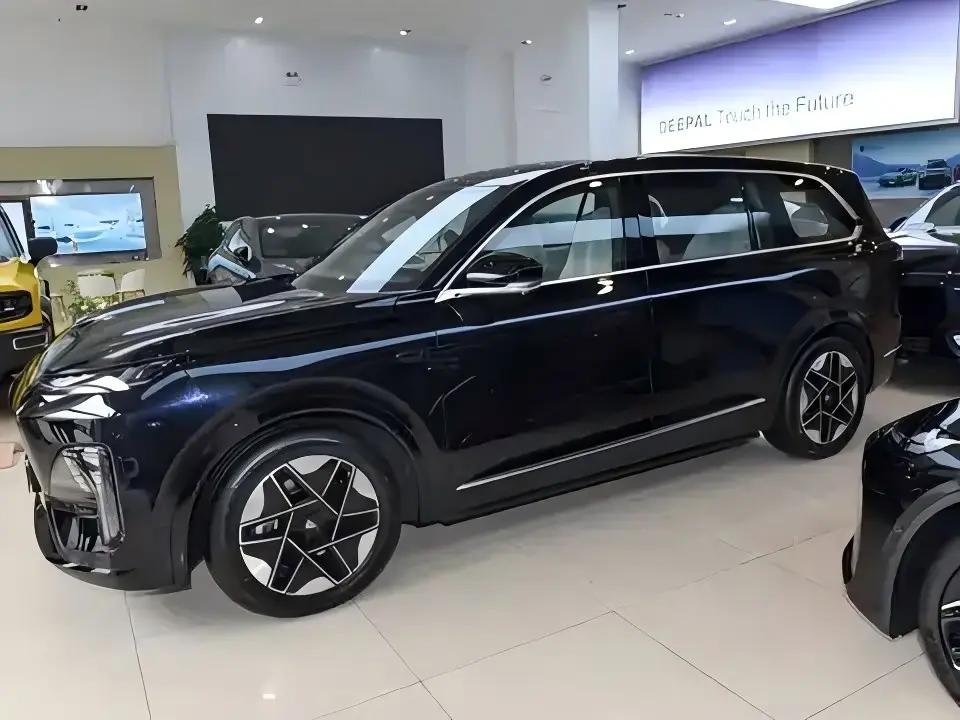

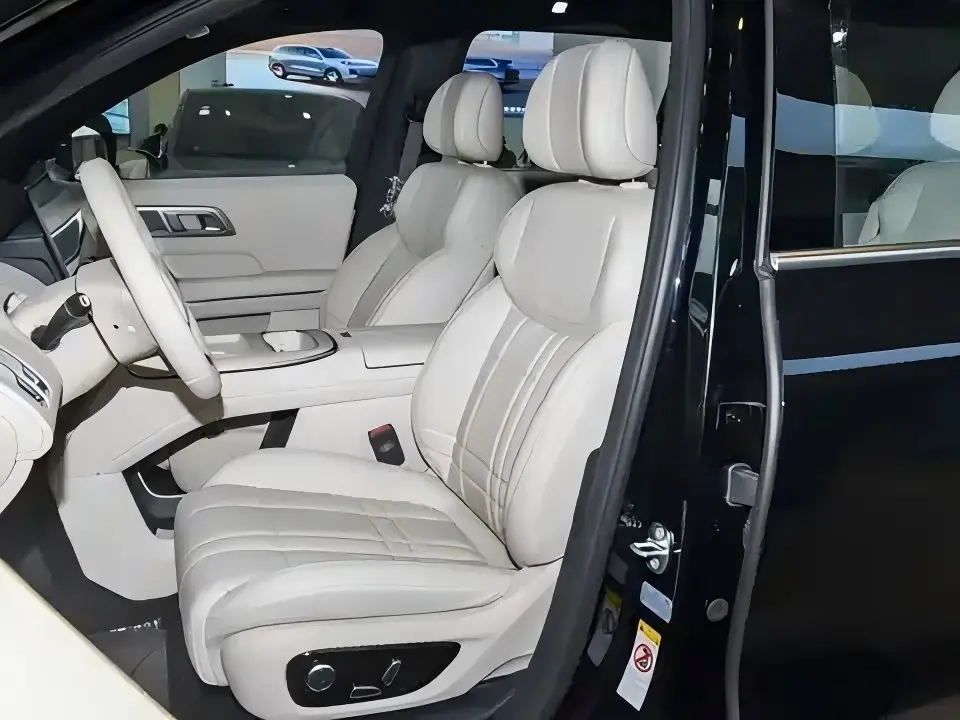

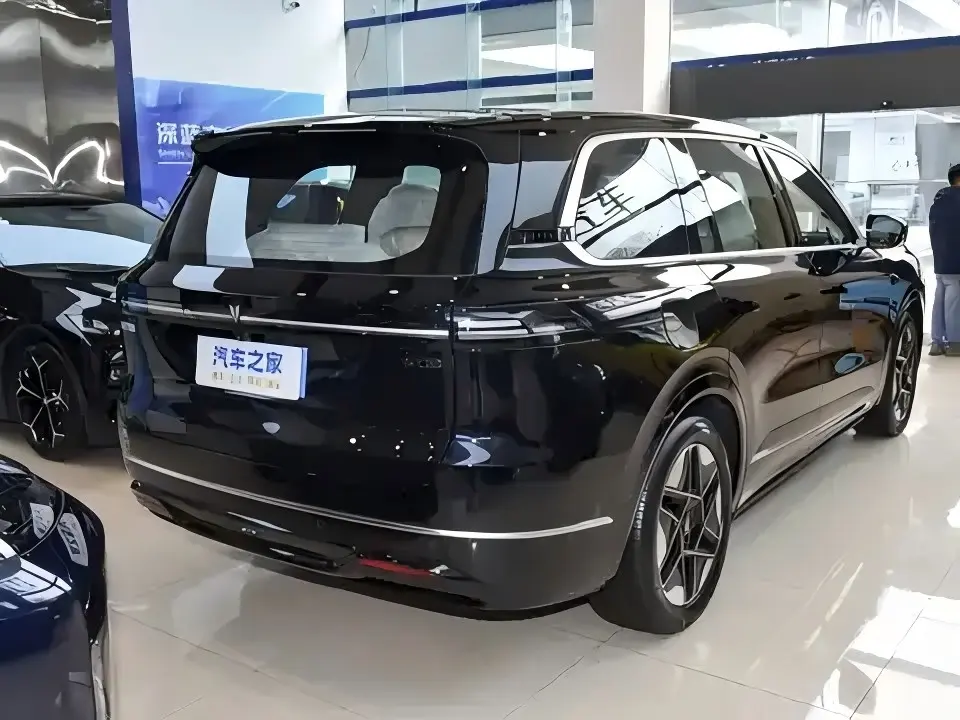

3.Details of Deepal S09’s detailed pictures as follows:

Deepal S09
