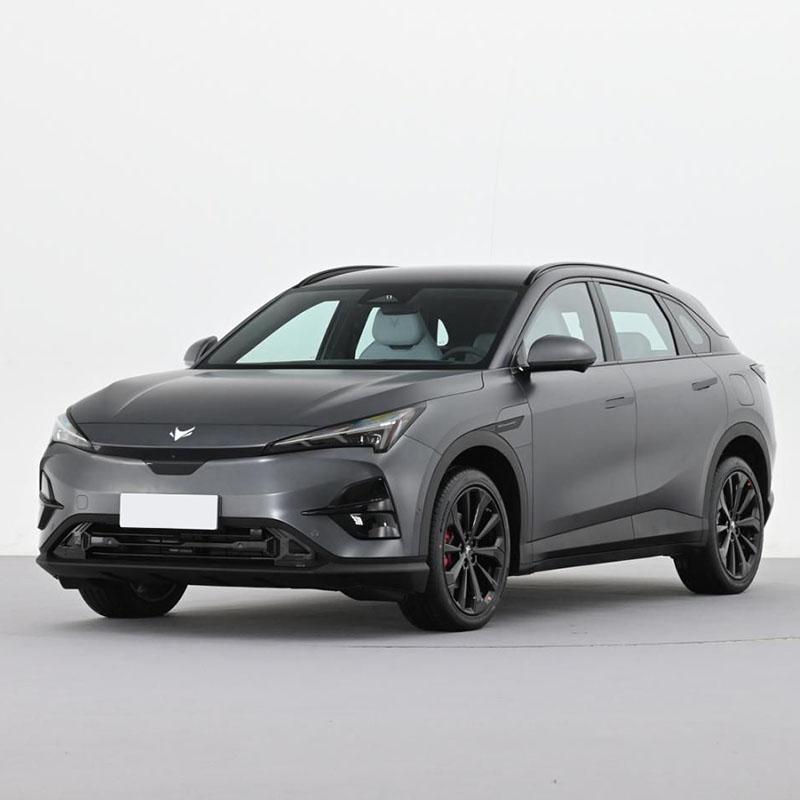

ARCFOXαT5

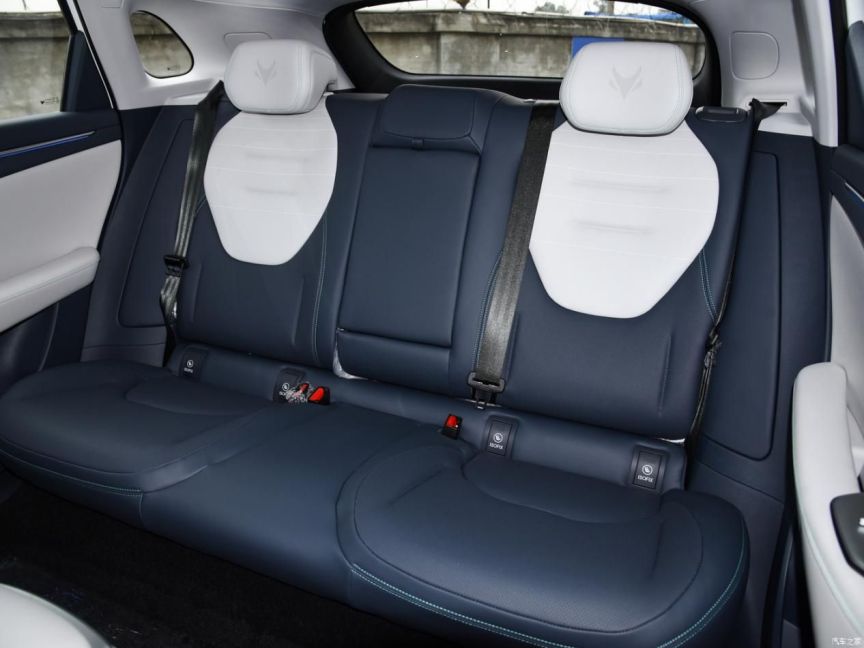

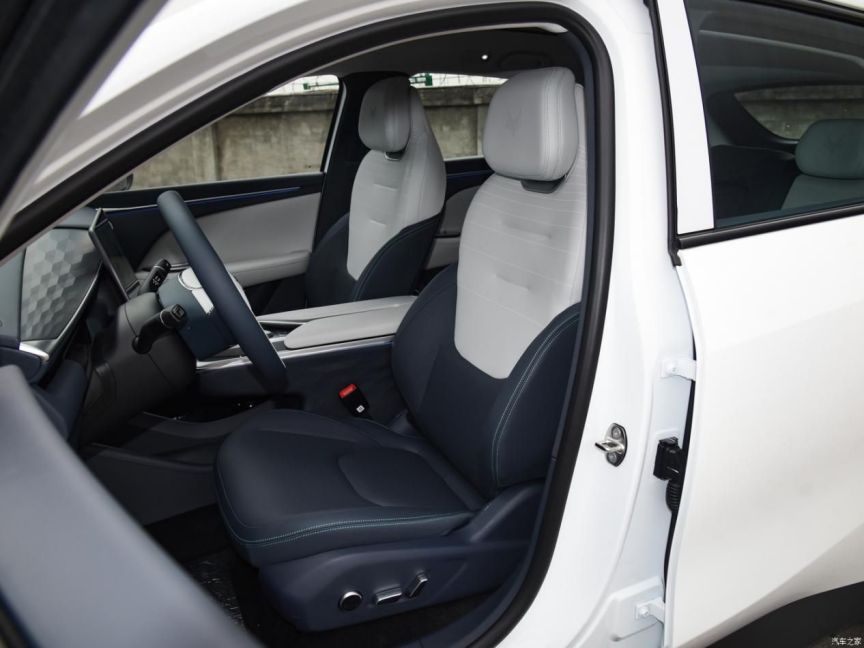

The ARCFOX Alpha T5 is a versatile, all-electric mid-size SUV from the ARCFOX brand, marketed as the “Ultimate All-Rounder Electric SUV.” It highlights six standout features: a spacious and comfortable interior, impressive long-range performance with efficient energy use and rapid charging, robust safety with an armored body, advanced smart technology, comprehensive health-focused features, and reliable quality and durability.

Send Inquiry

Product Description

The ARCFOX Alpha T5 features a 200kW single electric motor and a CATL ternary lithium-ion battery pack, delivering an impressive maximum range of up to 660 kilometers. Additionally, it supports 800V high-voltage ultra-fast charging, allowing it to gain 260 kilometers of range with just 10 minutes of charging.

Parameter (Specification) of ARCFOXαT5

	ARCFOXαT5 2024 520 MAX	ARCFOXαT5 2024 660 MAX
Basic parameters
Maximum power (kW)	185	200
Maximum torque (N · m)	360	360
Body structure	5 door 5-seater SUV
Electric motor (Ps)	252	272
Length * Width * Height (mm)	469019361650
Official 0-100km/h acceleration (s)	7.5	7.5
Maximum speed (km/h)	180	180
Whole Vehicle Warranty	●Three years or 120000 km
Warranty policy for the first owner	●Three years or 120000 km
Curb weight (kg)	1980	1975
Maximum Laden Mass（kg）	2430	2425
motor
Front motor model	TZ220XS645	TZ220XS646
Motor type	permanent magnet/synchronous
Total power of electric motor (kW)	185	200
Total horsepower of electric motor (Ps)	252	272
Total torque of electric motor (N-m)	360	360
Maximum power of front motor (kW)	185	200
Maximum torque of front motor (N-m)	360	360
Number of driving motors	Single motor	Single motor
Motor layout	Front	Front
Battery type	●Lithium iron phosphate battery	●Triple lithium battery
Cell Brand	●CATL	●CATL
Battery-specific technology	Aurora cells	Aurora cells
Battery cooling method	Liquid cooling
CLTC electric range (km)	520	660
Battery energy（kWh)	65	79.2
Power consumption per 100 km (kWh/100km)	14.7	13.9
The warranty policy of the first owner of the three electric vehicles	●There is no limit to the number of years/mileage of the first owner	●There is no limit to the number of years/mileage of the first owner
Fast charging function	Support
Fast Charging Power (kW)	160	230
High-voltage fast charging	—	Support
High Voltage Platform (V)	—	800
Battery fast charging time (hours)	0.38	0.28
Battery slow charging time（hours）	5.6	6.5
Battery fast charge range (%)	30-80	30-80
Location of fast charging port	The left rear side of the vehicle	The left rear side of the vehicle
Location of slow charging port	The left rear side of the vehicle	The left rear side of the vehicle
External AC discharge power(kW)	3.3	3.3
Minimum allowable value of external discharge (%)	10	10
