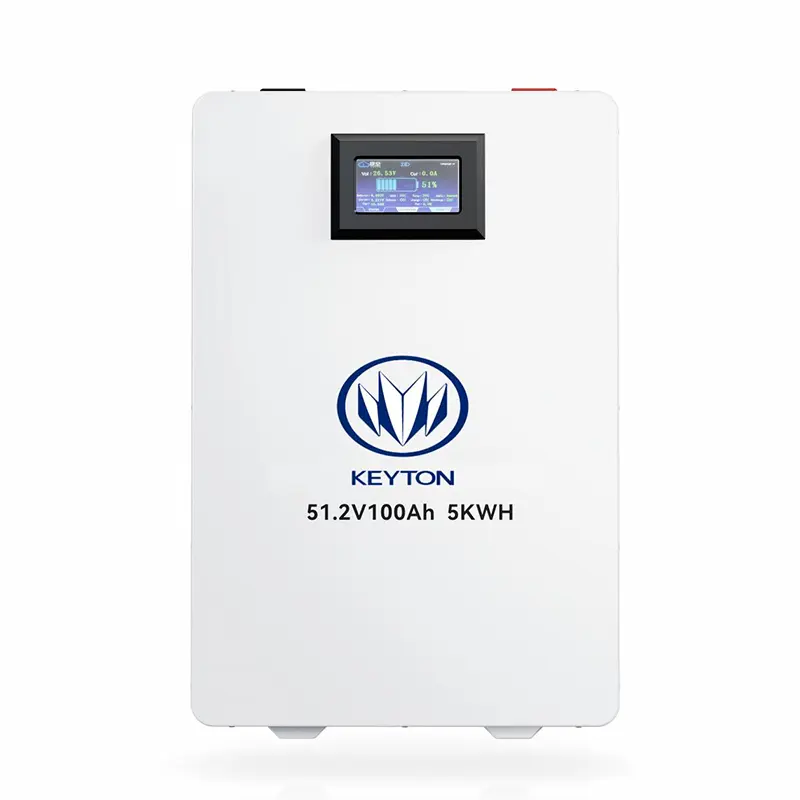

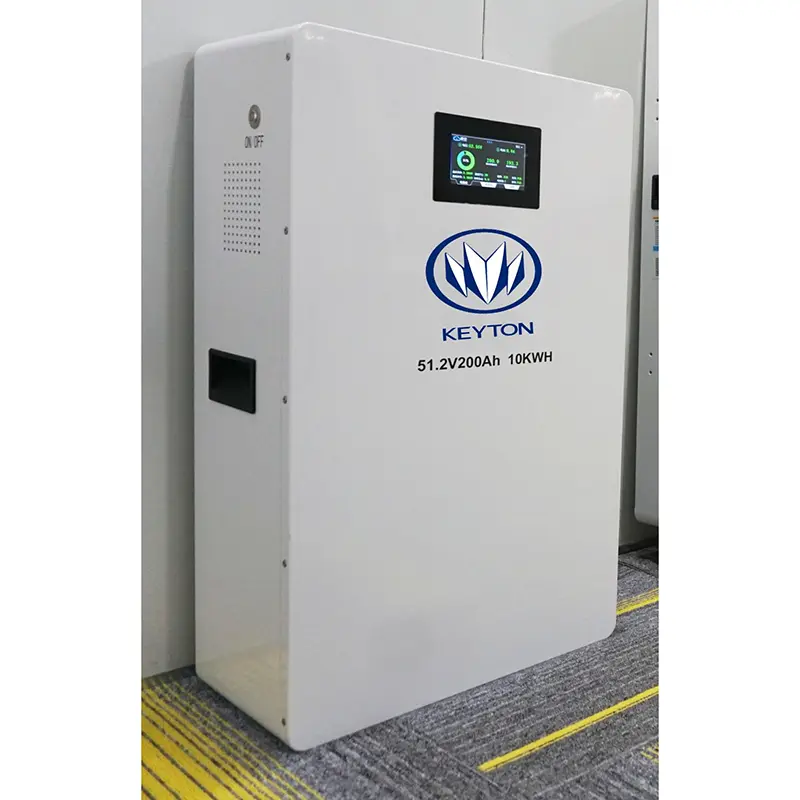

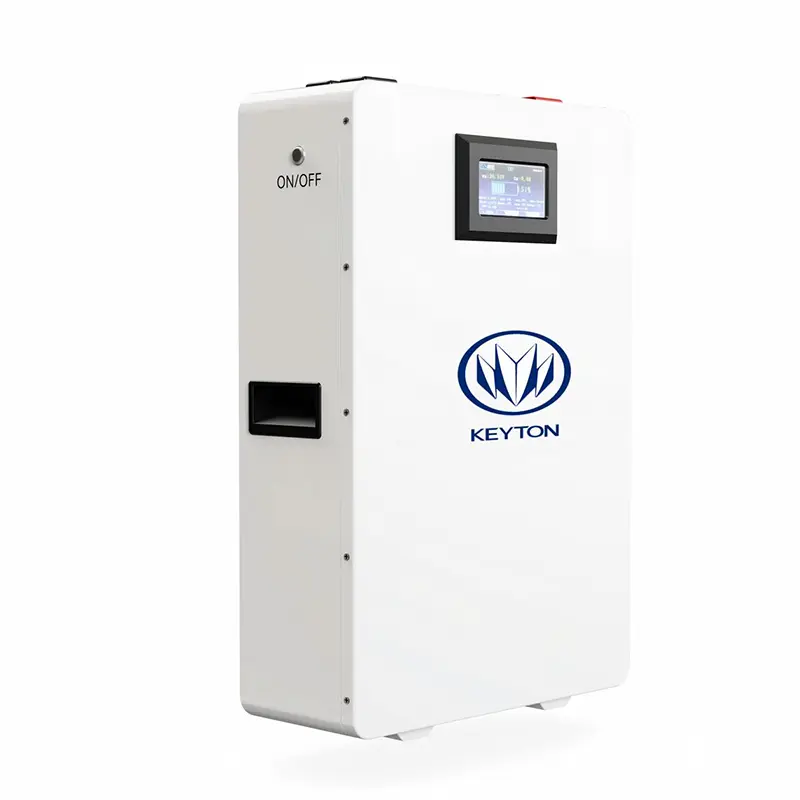

51.2V Wall-Mounted Series LiFePO4 Battery

The 51.2V Wall-Mounted Series LiFePO4 Battery offers reliable energy storage solutions. Employing advanced LiFepPO4 cell technology, these batteries ensure high safety and long-term stability. They are designed for wall-mounted installation, saving space while being easy to set up. With multiple communication interfaces, they can seamlessly integrate into various energy systems. The batteries support parallel operation of up to 15 units, allowing flexible expansion of energy storage capacity to meet different power demands. Equipped with intelligent BMS, they enable functions such as WiFi/Bluetooth remote monitoring, facilitating real-time status checks and management.

Send Inquiry

Product Description

1. Introduction of 25.6V Wall-Mounted Series LiFePO4 Battery

Unlock reliable, safe energy independence with our sleek Wall-Mounted LFP Battery Series. Engineered for peak safety and long-term stability using advanced lithium iron phosphate technology its space-saving design installs effortlessly on your wall. Seamlessly integrate into your existing energy ecosystem with multiple standard communication interfaces. Stay in complete control with the intelligent battery management system, featuring convenient remote monitoring for real-time insights. Built to last for years of dependable service.

2. Parameter (Specification) of ELF EC 2.5L

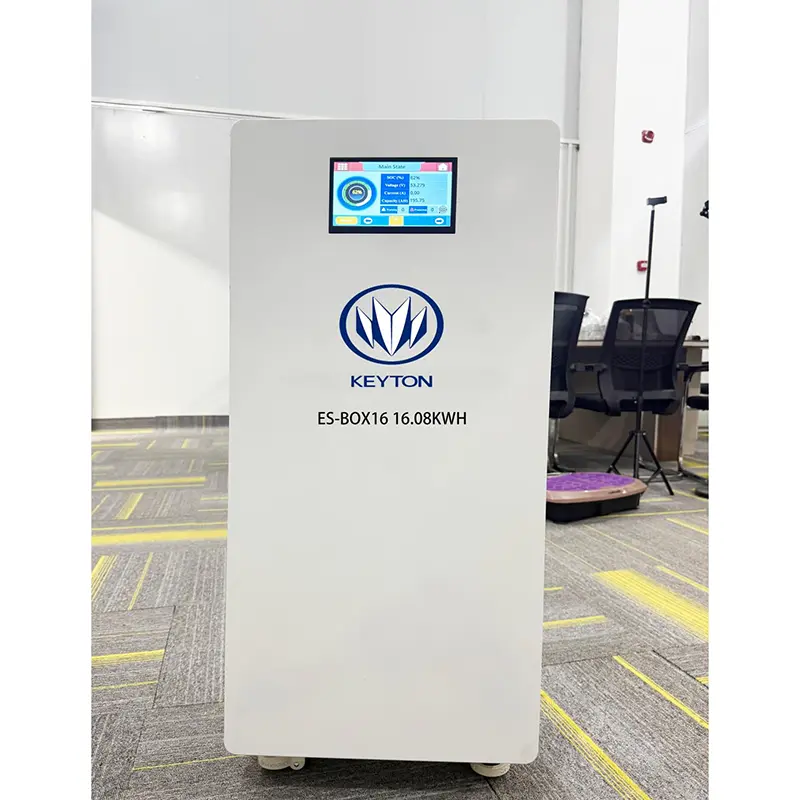

Product Model	ES-BOX5	ES-BOX10	ES-BOX15	ES-BOX15
Nominal Energy	5.12kWh	10.24kWh	16.08kWh	16.08kWh
Nominal Voltage	51.2V	51.2V	51.2V	51.2V
Nominal Capacity	100AH	200AH	314AH	314AH
Cell Type	LFP	LFP	LFP	LFP
Standard Charge Voltage	56.8V	56.8V	56.8V	56.8V
Max.Discharge Current	100A	100A	200A	200A
Discharge Cut-off Voltage	44.8V	44.8V	44.8V	44.8V
Parallel Function	Support 15 Units In Parallels
Communication Interface	RS485、RS232、CAN
Cycle Life*	≥6000 Cycles(25°C±2°C,0.2C/0.2C,80%DOD)
Charge Temperature Range	0~55℃
Discharge Temperature Range	-20~55℃
Certification	Pack:MSDSUN38.3 Cell:UL 1642/IEC 62619/CE/EMC/ROHS/MSDS/UN38.3
Dimension	600395165mm	720425230mm	900430238mm	900430238mm
Net Weight	46Kg	85Kg	120Kg	120Kg
Installation Method	Wall Mounted/Floor Standing
Warranty	5 Years(under warranty terms)
Optional	BMS APP:Bluetooth/WiFi remote monitoring
*Test Condition:80%DOD,0.2C charge &discharge @25℃

3. Details of 25.6V Wall-Mounted Series LiFePO4 Battery

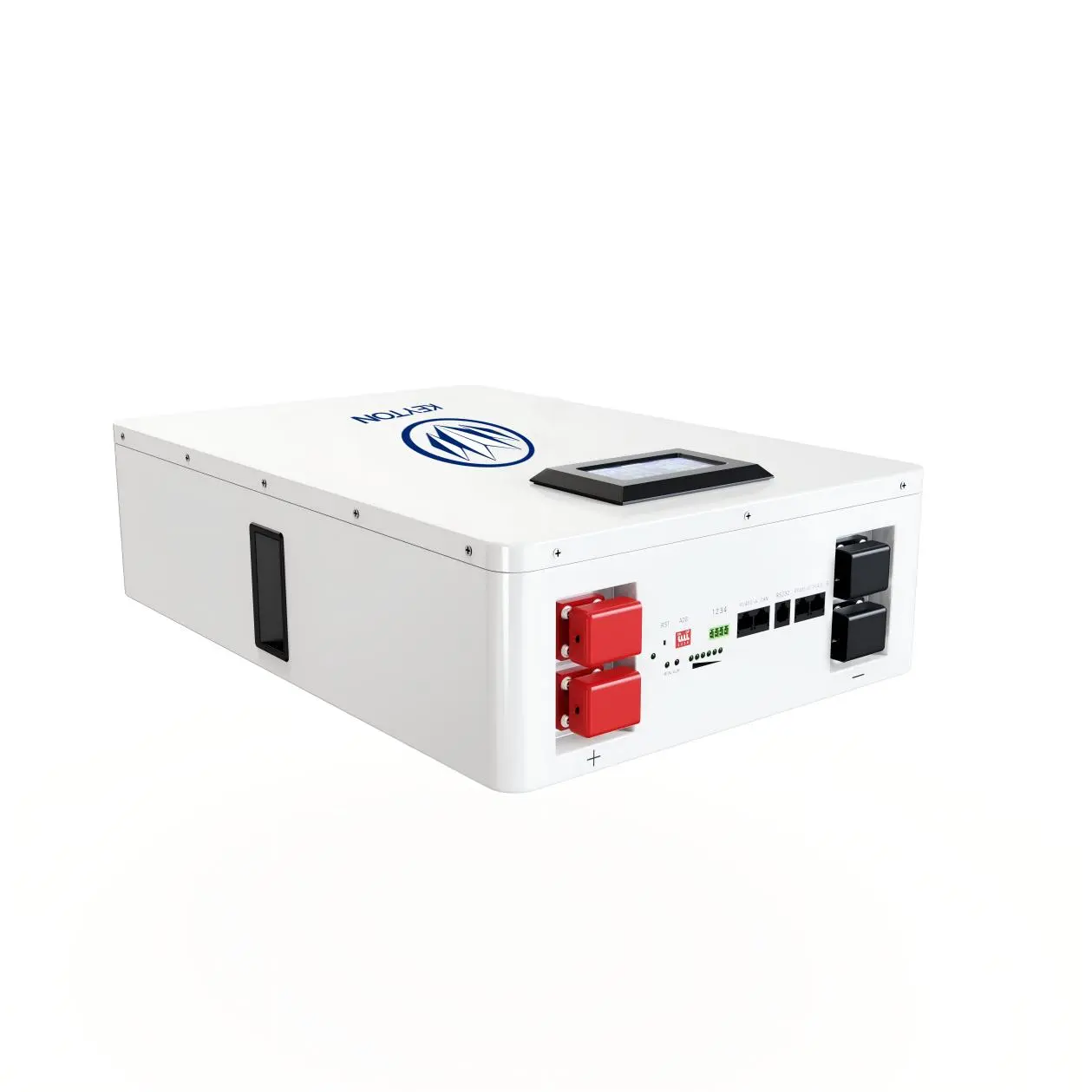

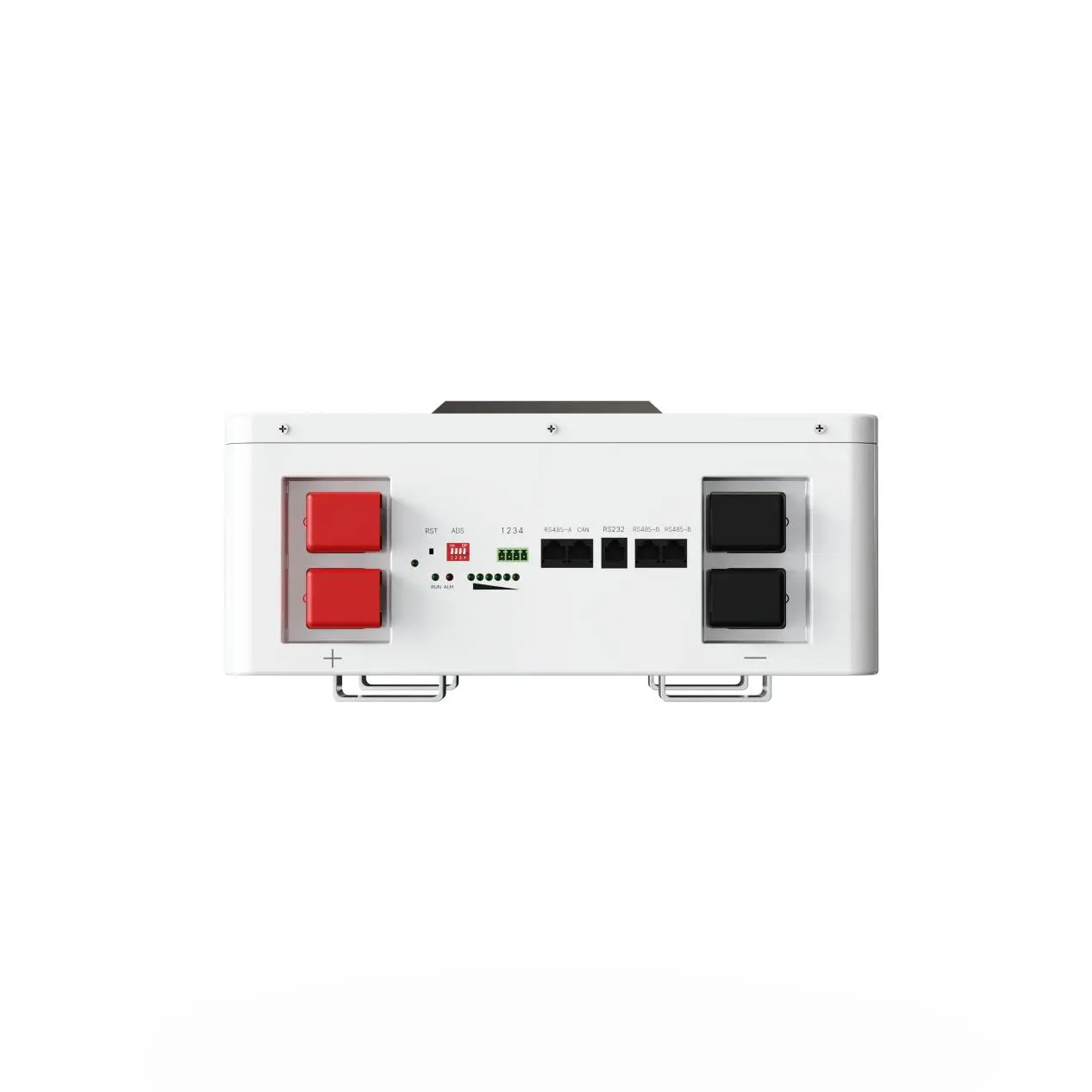

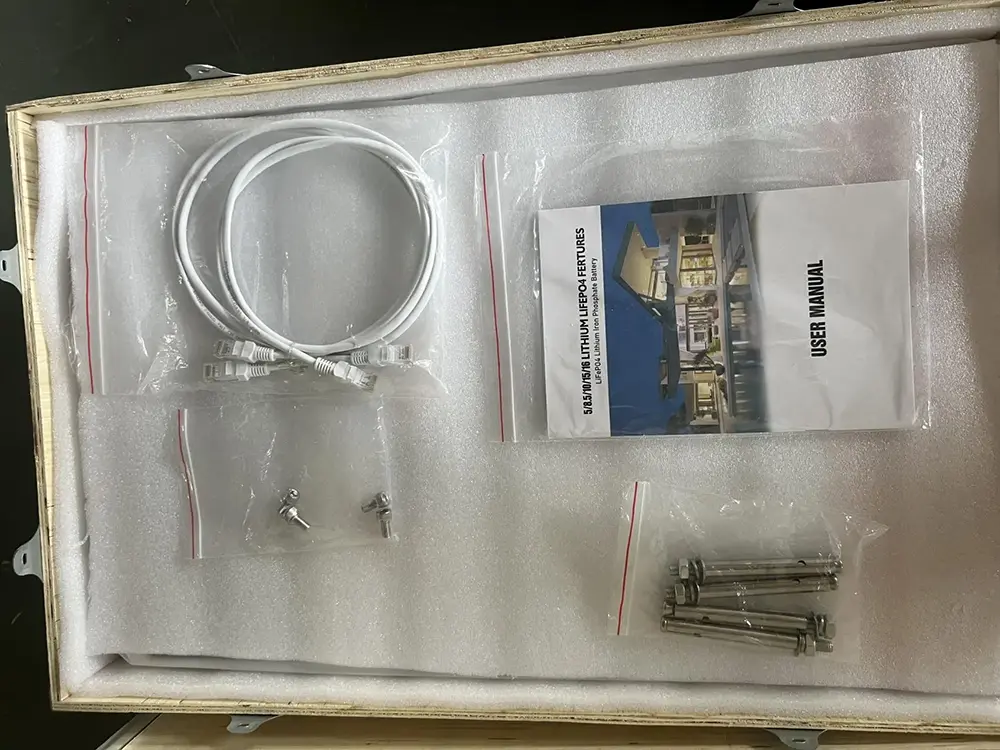

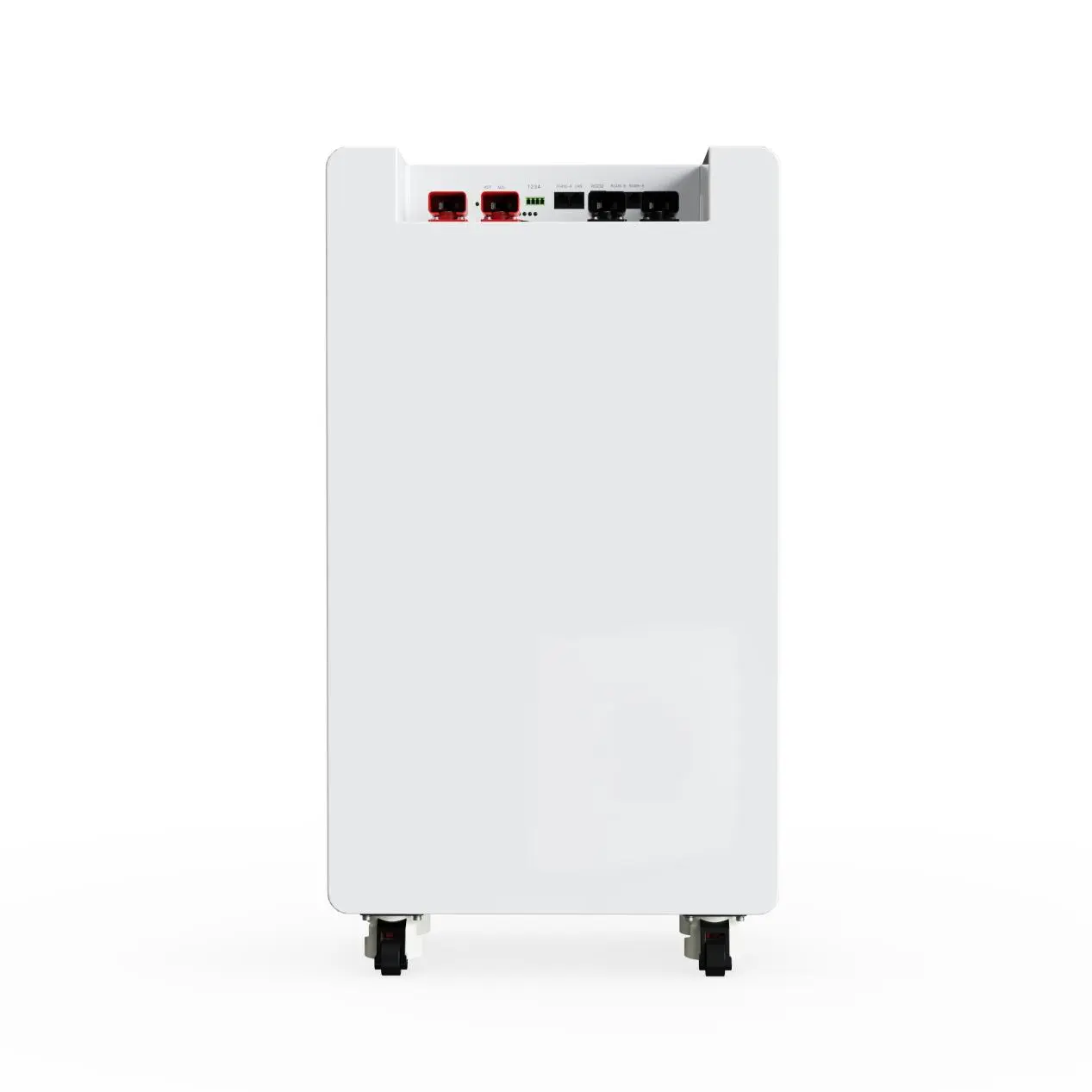

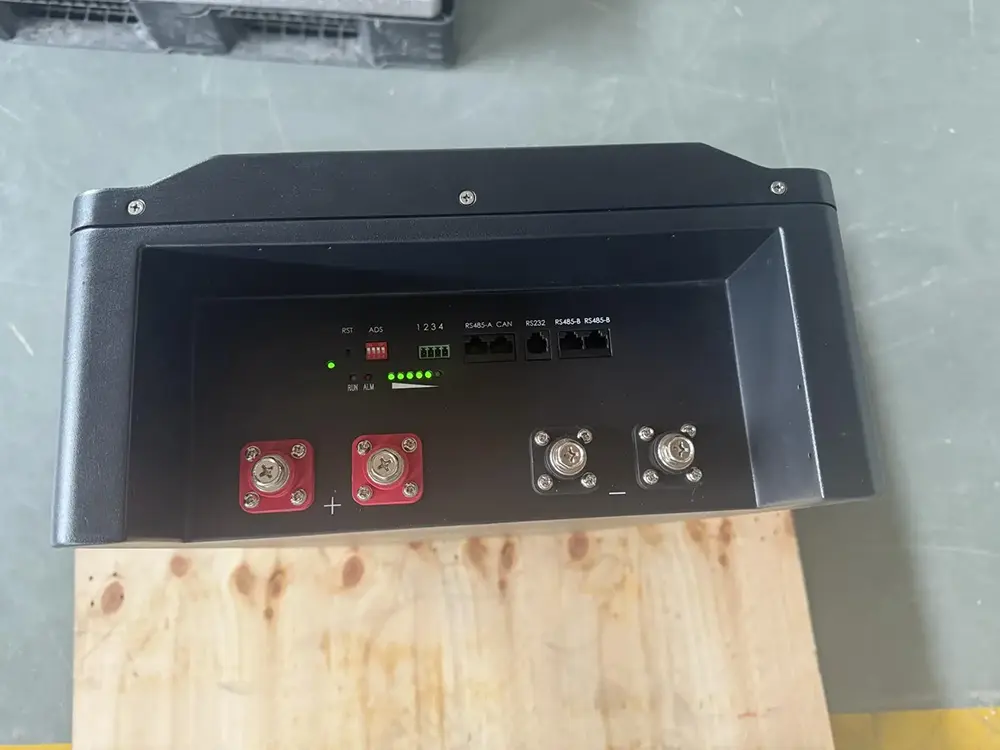

25.6V Wall-Mounted Series LiFePO4 Battery ’s detailed pictures as follows:
